Surpass Hobby Blue 2435 6100KV Brushless Motor Shaft 2.0mm with Brushless 25A ESC Combo for 1/16 1/18 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 Pole 12 Slot Hi-torque Motor Design; Removable/Replaceable Rotor
*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency
*Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws
*Precision balanced rotor,smoothness for best reliability and maximum RPM;Precision Engineered for Maximum Energy Conversion
Description
Features:
? 4 Pole 12 Slot Hi-torque Motor Design
? CNC Machined 6061 T6 Billet Aluminum Heatsink Can
? High Purity Copper Windings Maximizes Efficiency
? High RPM ABEC5 Oversized Bearings
? Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws
? Precision balanced rotor,smoothness for best reliability and maximum RPM
? Stator - Super Thin (0.35mm) Laminations
? Removable/Replaceable Rotor
? Precision Engineered for Maximum Energy Conversion
Specification:?2435?
Scale & tpye?Fits all 1/16-1/18 brushless cars
Brand?SURPASS HOBBY
Product: 2435-6100KV
Watts: 300
Max voltage: <9.6V
Max Amps: 32A
Rotor Poles: 4
IO: 2.5A
Resistance: 0.0032
KV(RPM/Volt): 6100
Max RPM: 60000
Length: 35mm
Diameters: 24mm
Weight: 63g
Shaft: 2.0mm
Length of extend shaft: 12mm
Connector: 3.5mm gold
Sensorless Brushless Speed Controller for Car
Features:
1.Specially designed for RC car with excellent start-up,acceleration and linearuty features
2.Compatible with sensorless brushless motor
3.The strong resistant current capability,excellent heat dissipation
4.Multiple protecttion features: Low voltage cut-off protection for lithium or nickel battery/Over-heat protection/Throttle signal loss protection/Motor blocked protection
5.Easily programmed and compatible with pocket-sized program card
Specifications:
Model: 25A
Cont.Current/Burst Current: 25A/100A
Motor Type: Sensorless Brushless Motor
Suitable Car: 1/18, 1/16 car
Suitable Brushless Motor: ?12T
Resistance: 0.004ohm
Battery: 2 cells Lipo,4-6 cells NiMH
BEC Output: 5V/2A(analog mode)
Dimension: 25*30*14.5mm

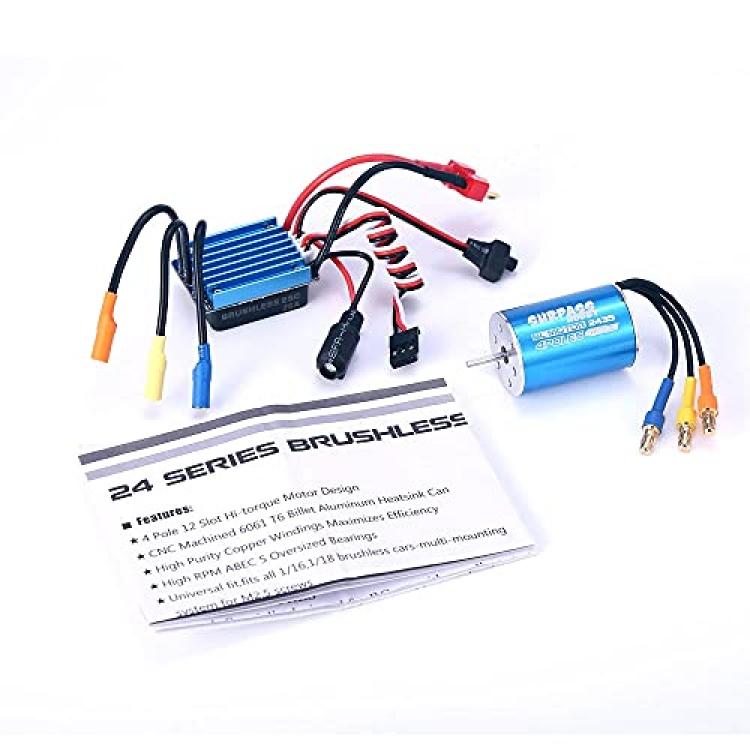

Package List:
1 x Motor
1 x 25A ESC
1 x Manual
