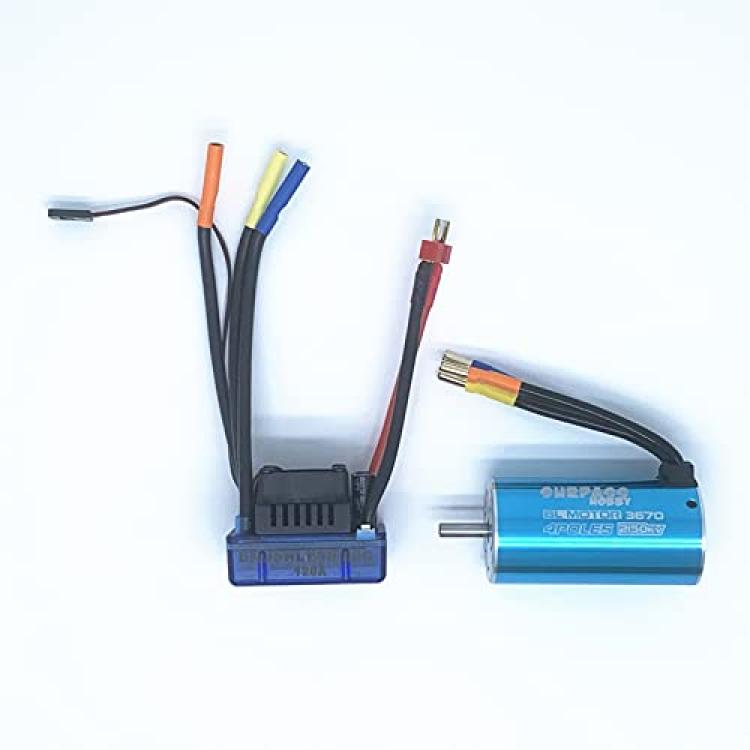

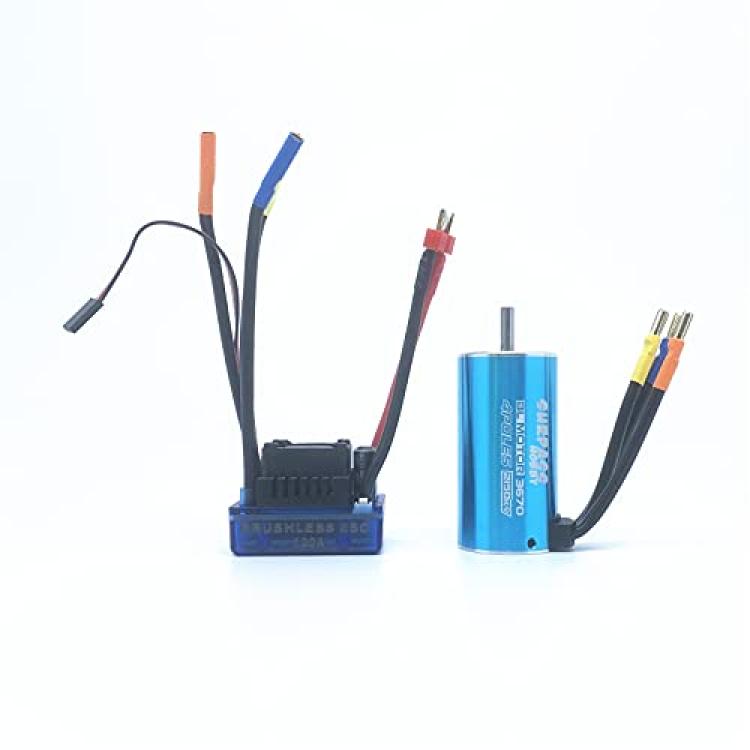

Surpass Hobby Blue 3670 2150KV Sensorless Brushless Motor Shaft 5.0mm with Brushless 120A ESC for 1/8 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 poles 12 slot Hi-torque motor design,CNC machined 6061 T6 billet alumium heatsink can
*High purity copper windings maximizes efficiency,high RPM ABEC5 oversized bearings
*This combo Universal fits 1/8 brushless cars-multi-mounting system for M3 screws
*Precision balanced rotor, smoothness for best reliability and maximum RPM; Removable/replaceable,precision engineered for maximum energy conversion
*ESC Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection
Description

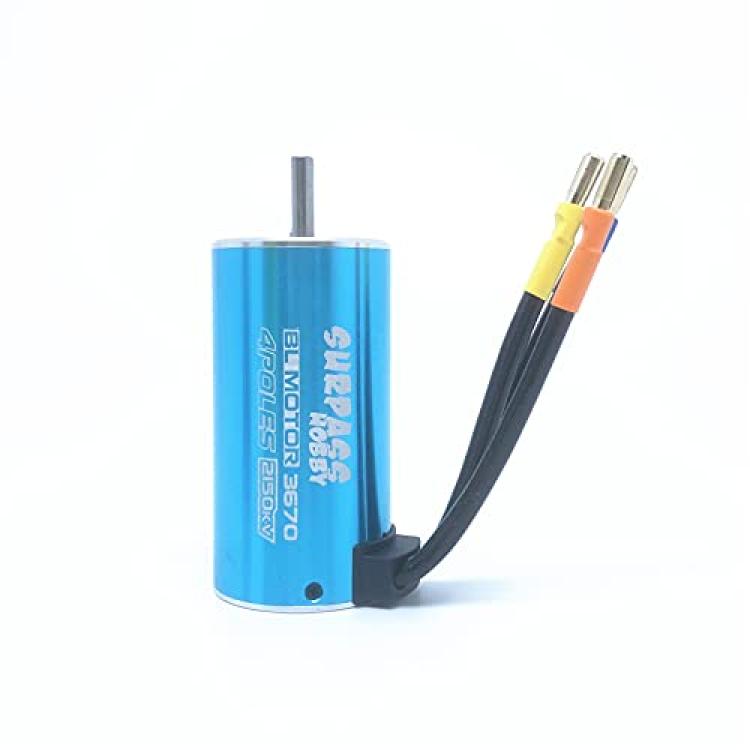

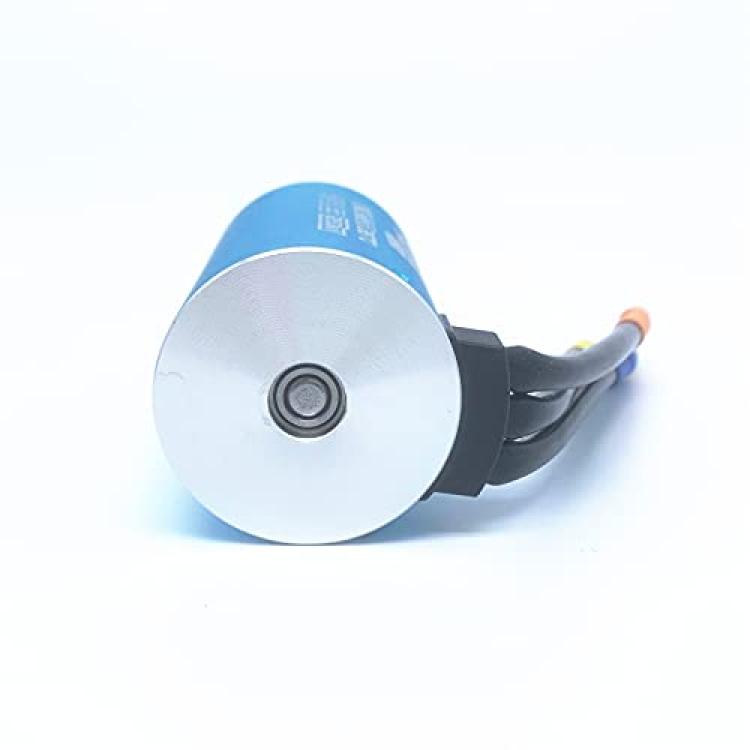

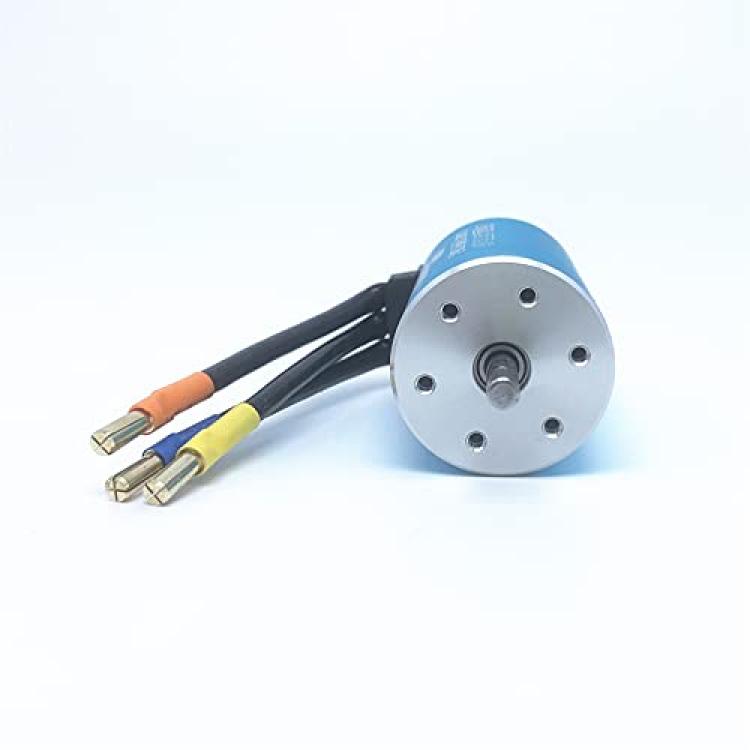

Motor Features:
*4 poles 12 slot Hi-torque motor design,CNC machined 6061 T6 billet alumium heatsink can.
*High purity copper windings maximizes efficiency,high RPM ABEC5 oversized bearings.
*Universal fits 1/10 brushless cars-multi-mounting system for M3 screws.
*Precision balanced rotor, smoothness for best reliability and maximum RPM.
*Removable/replaceable,precision engineered for maximum energy conversion.
Motor Spec:
Product: 3670-2150KV
Watts: 1600
Max voltage: <23V
Max Amps: 70A
Rotor Poles: 4
IO: 3.0A
Resistance: 0.0121
KV(RPM/Voltage): 2150
Max RPM: 50000

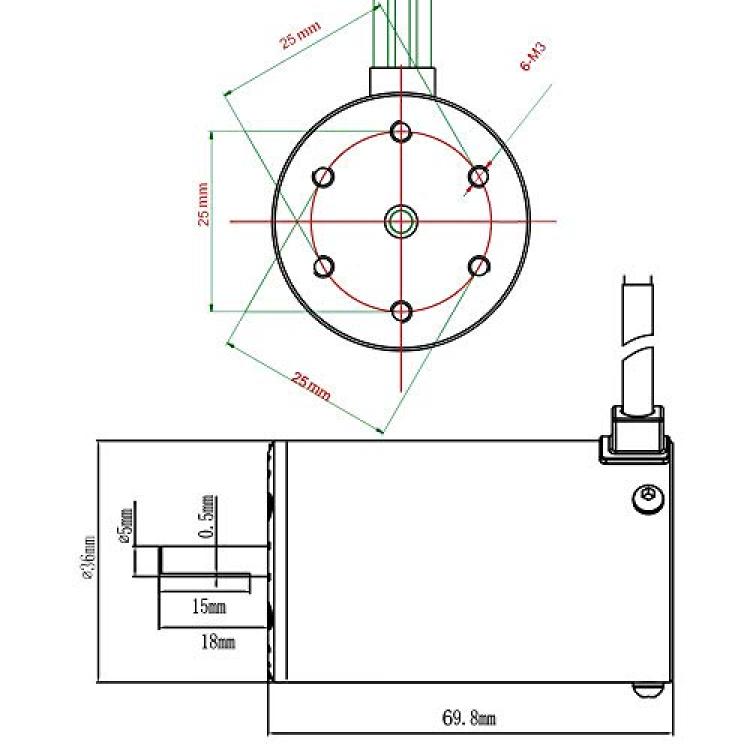

Length: 70mm
Diameters: 36mm
Weight: 275g
Shaft: 5.0mm
Length of extend shaft: 17mm
Connector: 4.0mm gold

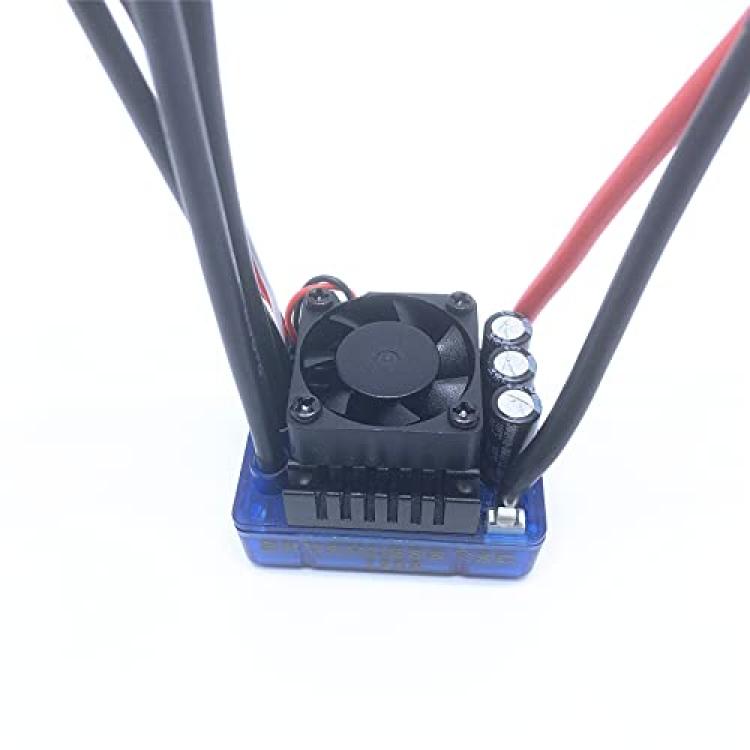

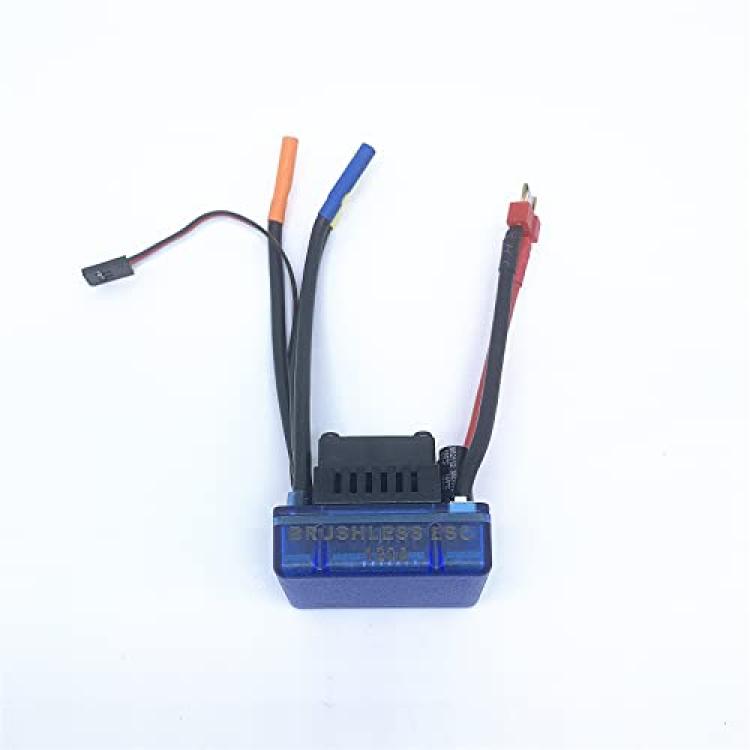

ESC Features:
*Compatible with sensorless brushless motors.
*High anti-interference capability.
*Super smooth and accurate throttle linearity.
*Fast response to throttle input.
*Mutiple protection features: low voltage cut-off protection, over-heat protection and throttle signal loss protection.
ESC Spec:
Model: 120A
Cont.Current/Burst Current:120A/600A
Motor Type: Sensorless Brushless Motor
Suitable Car: 1/8 car
Suitable Brushless Motor:?3.5T
Resistance: 0.00035ohm
Battery: 2-6 cells Lipo, 4-12 cells NiMH
BEC Output: 6.1V/3A(switch mode)
Dimension:41*51*36mm
Package List:
1 x Motor
1 x 120A ESC
1 x Manual
