SURPASS HOBBY KK Series 2435 3300KV Waterproof Sensorless Brushless Motor Shaft 2.0mm for 1/16 1/18 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 Pole 6 Slot Hi-torque Motor Design; Stator - Super Thin (0.35mm) Laminations; Precision Engineered for Maximum Energy Conversion;Removable/Replaceable Rotor
*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings
*Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws
*Precision balanced rotor,smoothness for best reliability and maximum RPM
Description
Features:
? 4 Pole 6 Slot Hi-torque Motor Design
? CNC Machined 6061 T6 Billet Aluminum Heatsink Can
? High Purity Copper Windings Maximizes Efficiency
? High RPM ABEC5 Oversized Bearings
? Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws
? Precision balanced rotor,smoothness for best reliability and maximum RPM
? Stator - Super Thin (0.35mm) Laminations
? Removable/Replaceable Rotor
? Precision Engineered for Maximum Energy Conversion
Specification:?2435?
Scale & tpye?Fits all 1/16-1/18 brushless cars
Brand?SURPASS HOBBY
Sensored or sensorless?sensorless
Product: 2435-3300KV Motor
KV(RPM/Volt): 3300
Watts:300
Max voltage: <15.8V
Max Amps: 18A
Rotor Poles: 4
IO: 1.2A
Resistance: 0.0167
Max RPM: 60000
Shaft: 2.0mm
Length of extend shaft: 12mm
Connector: 3.5mm gold

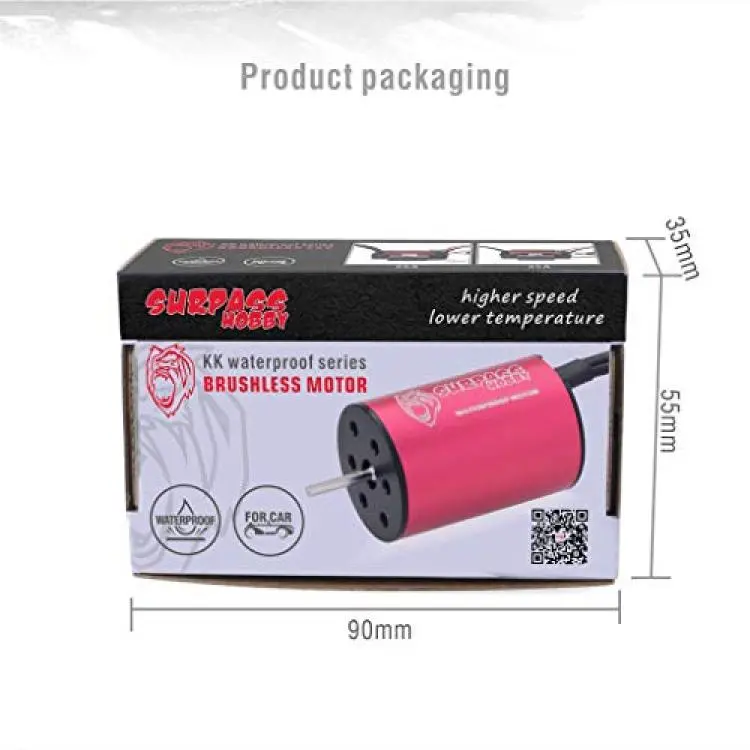

Packing size: 90*55*35mm
G.W: 83g
N.W: 63g
Package List:
1 x KK 2435 Motor
1 x Manual
