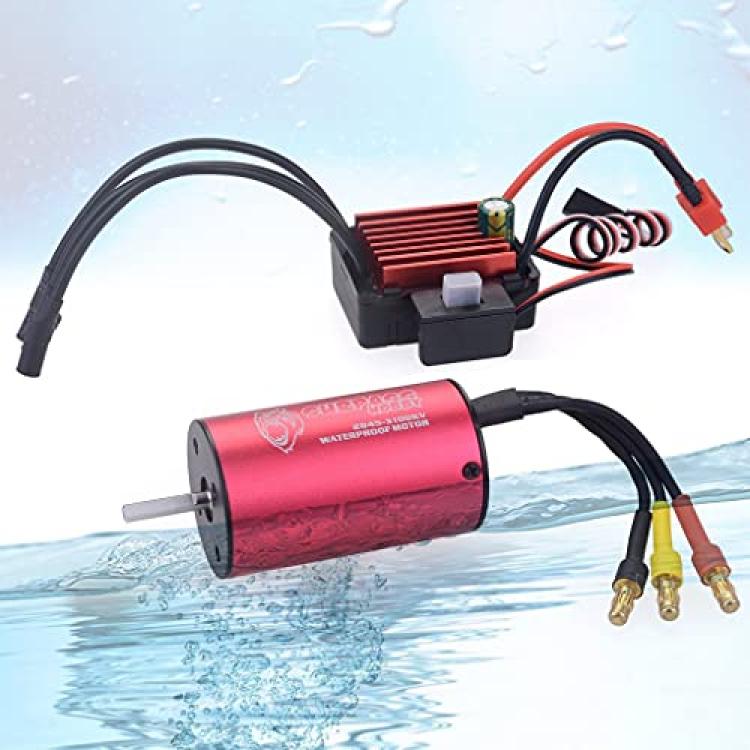

Surpass Hobby KK 2845 2600KV Waterproof Brushless Motor Shaft 3.175mm with 35A Waterproof Brushless ESC for 1/14 RC Car
Availability: Pre-Order, Inquiry Price
About this product

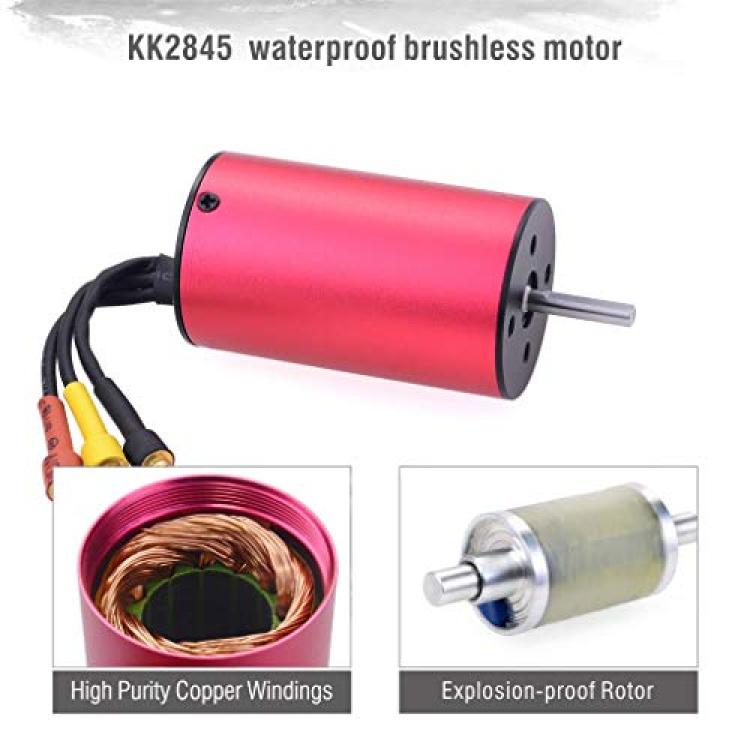

*4 Pole 12 Slot Hi-torque Motor Design

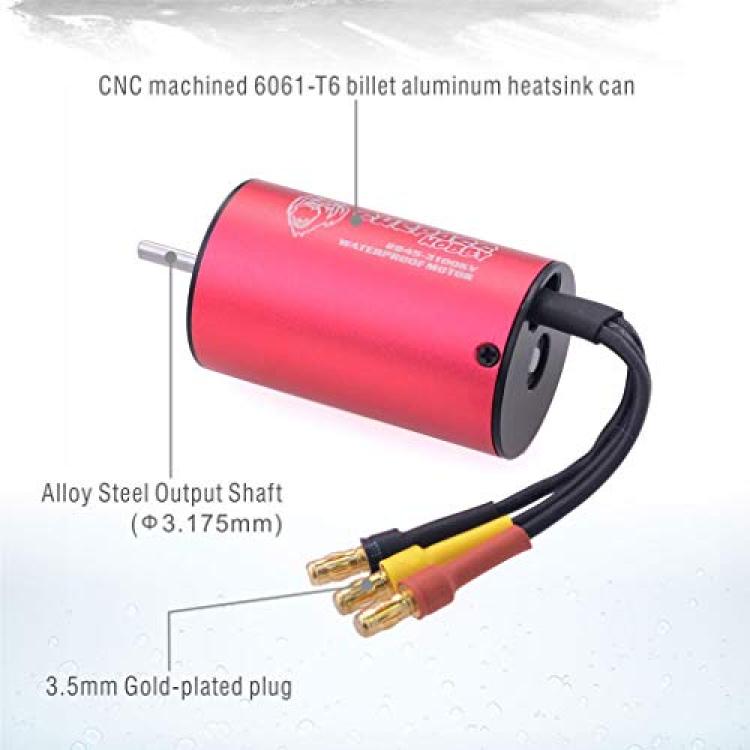

*High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
*Universal fit, for all 1/14 rc car
*Precision balanced rotor,smoothness for best reliability and maximum RPM
*Precision Engineered for maximum Energy Conversion
Description

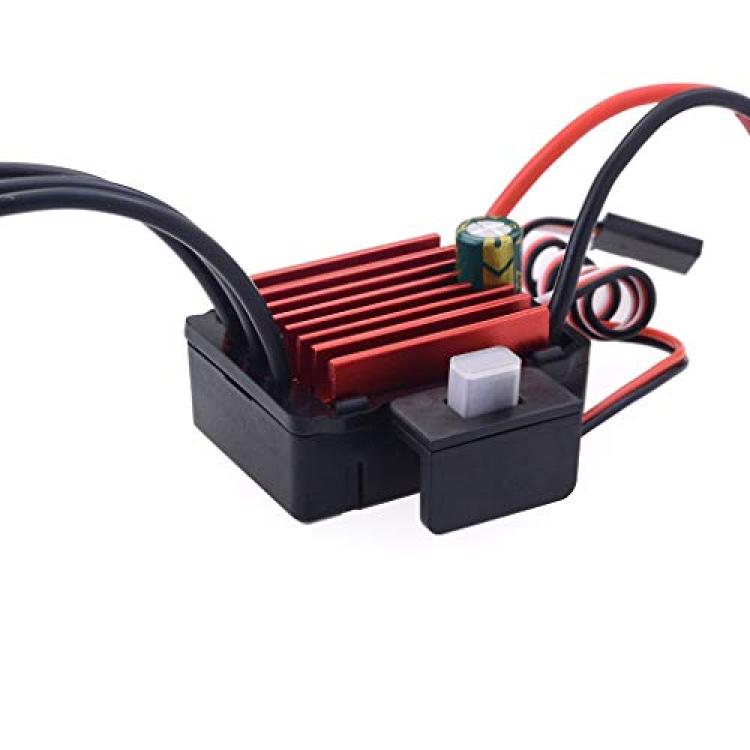

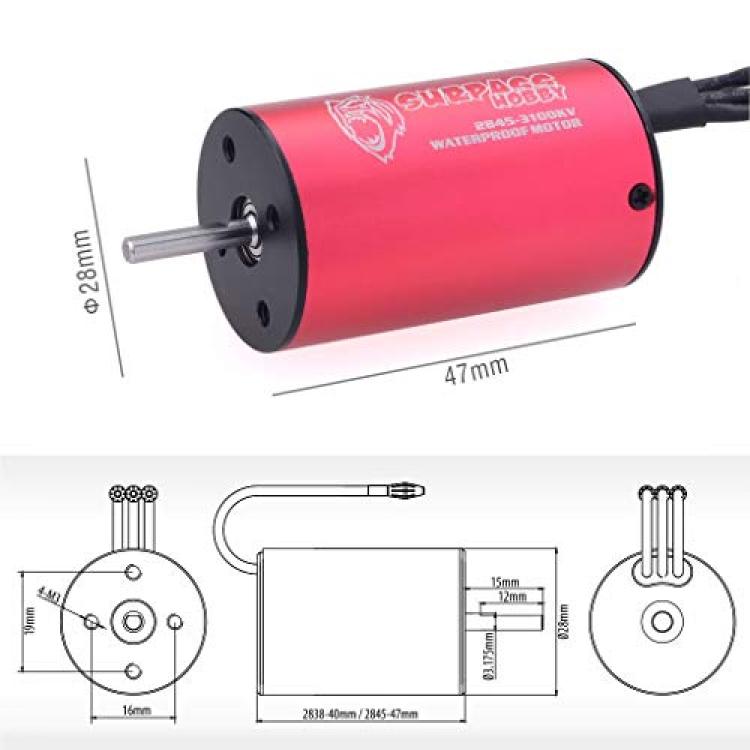

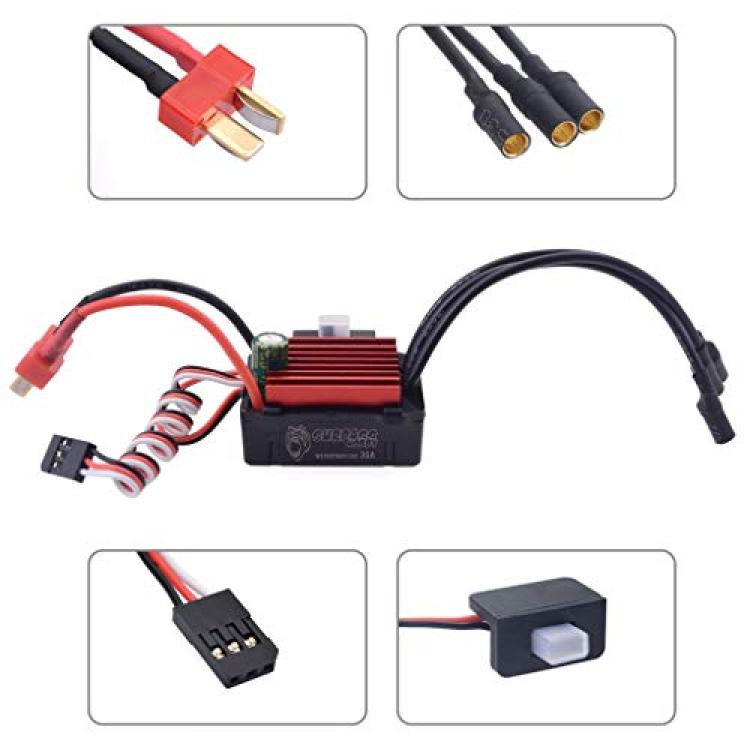

Features: 4 Pole 12 Slot Hi-torque Motor Design. High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings. Universal fit, for all 1/10 rc car. Precision balanced rotor,smoothness for best reliability and maximum RPM. Stator - Super Thin (0.35mm) Laminations. Removable/Replaceable rotor Precision Engineered for maximum Energy Conversion Specifications: Brand: SURPASS HOBBY Series: KK Name: 2845 RC Motor KV(RPM/Volt): 2600KV Watt:800 Max RPM: 50000 Max voltage: <19V Max amps: 42A IO:1.2A Resistance:0.0425 Rotor poles: 4 Shaft: 3.175mm Shaft length: 15mm Connector: 3.5mm gold35A ESC: Model: 35A Continuous / maximum current: 35A / 120A Adaptation Motor: Sensorless Brushless Motor For 2S Lipo or 6 cells NiMH: 1.on-road:28XX-size or smaller motor with the KV<6000 2. Off-road / Buggy / Monster: 28XX-size or smaller motor with the KV<4000 For 3S Lipo or 9 cells NiMH: 1. On-road: 28XX-size or smaller motor with the KV<4000 2. Off-road / Buggy / Monster: 28XX-size or smaller motor with the KV<3000. Applicable models: 1/16, 1/14 car Resistance: 0.0007ohm Battery: 2~3 cells Lipo 4~9 cells NiMH BEC output 5.0V/2A(analog mode) Size / single weight: 40*32*20/37gPackage Included: 1 x SURPASS HOBBY KK 2845 Brushless Motor 1 x 35A ESC1 x English Manual
