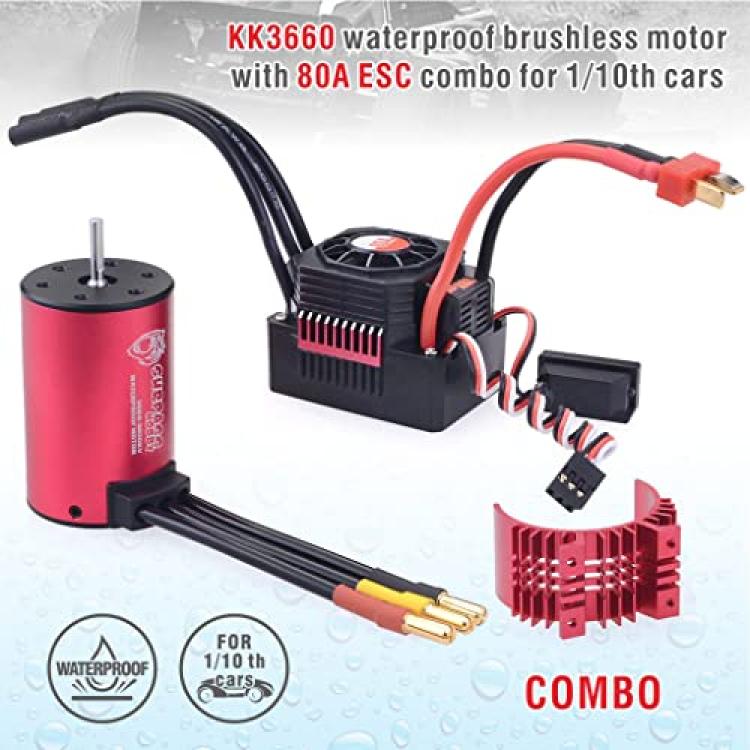

Surpass Hobby KK 3660 3500KV Waterproof Brushless Motor Shaft 3.175mm with Brushless 80A ESC and Program Card + Heatsink Combo for 1/10 RC Car

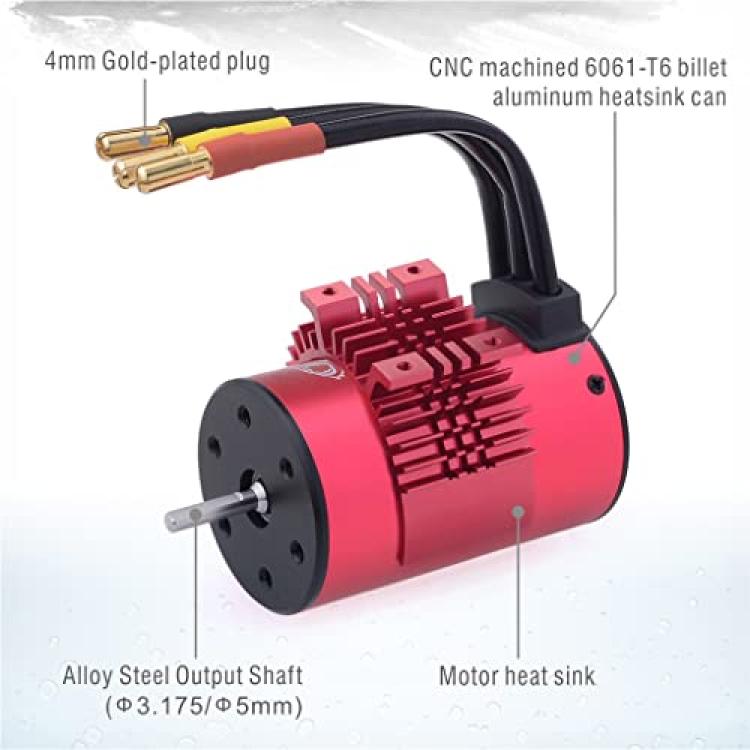

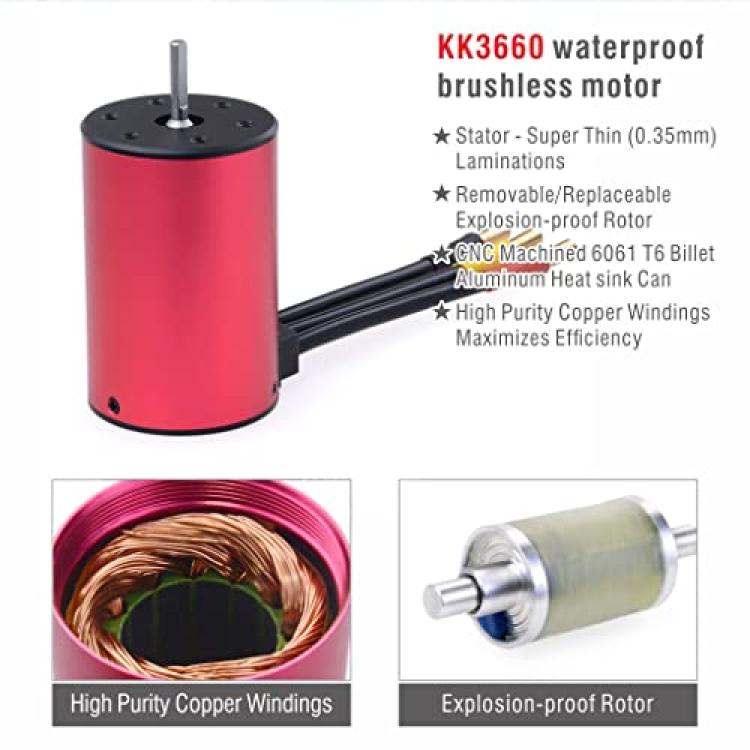

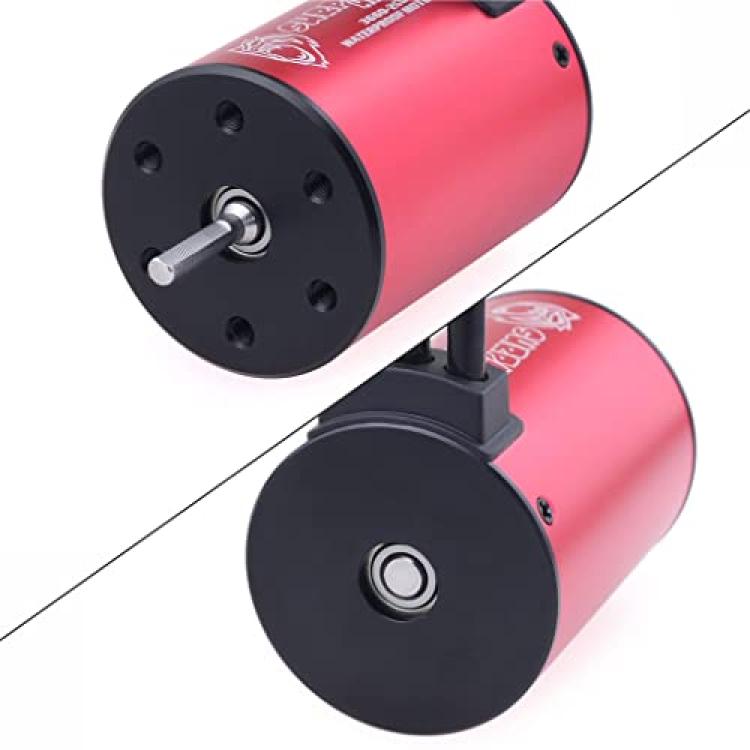

Motor Features:

*4 Pole 12 Slot Hi-torque Motor Design

*CNC Machined 6061 T6 Billet Aluminum Heatsink Can

*High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings

*Universal fit, fits all 1/10 brushless cars-multi-mounting system for M3 screws

*Precision balanced rotor,smoothness for best reliability and maximum RPM

*Stator-Super Thin(0.35mm) Laminations

*Precision Engineered for Maximum Energy Conversion

Motor Specification:

KV: 3500

Watts: 1200

Max Voltage:<13V

Max Amps: 92A

Rotor: 4

IO: 2.8A

Resistance: 0.0083

Max RPM: 50000

Shaft: 3.175mm

Length of extend shaft: 17mm

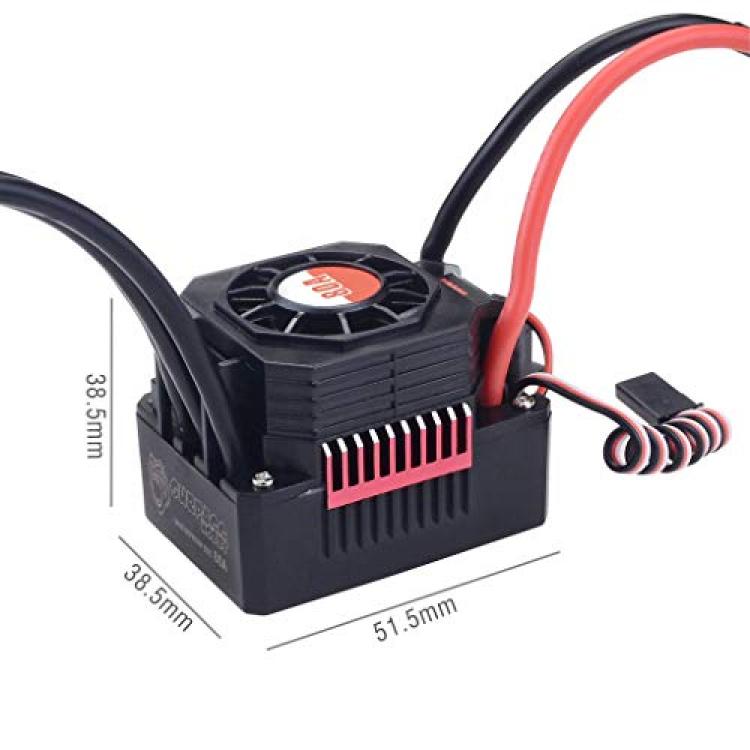

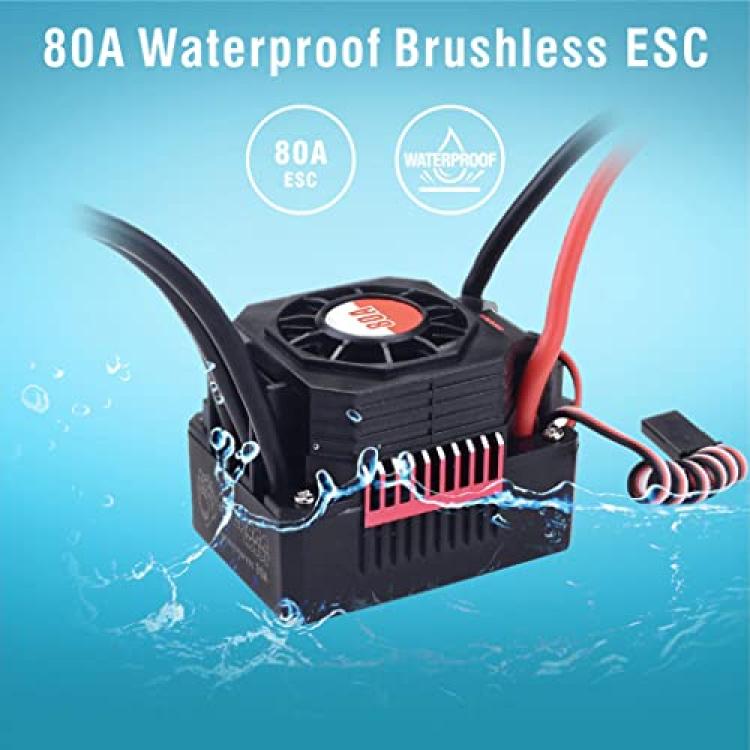

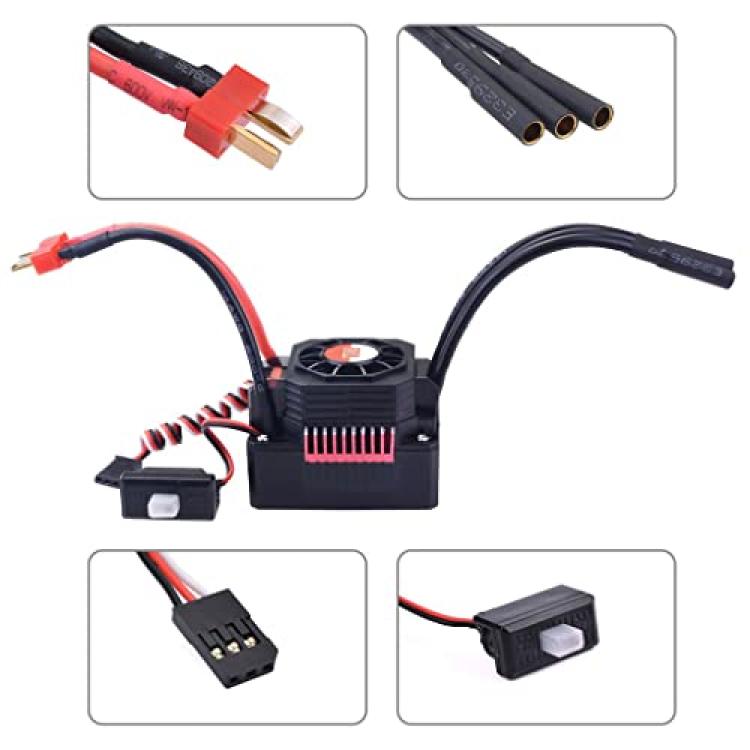

ESC:

Con.Current/Burst Current:80A/480A

Motor type:

Sensorless Brushless Motor for 2S Lipo or 6 cells NiMH:

1.on-road:3670-size or smaller motor with the KV<3000

2.Off-road/Buggy/Monster:3670-size or smaller motor with the KV<3000

For 3S Lipo or 9 cells NiMH:

1.On-road:3670-size or smaller motor with the KV<3000

2.Off-road/Buggy/Monster:3670-size or smaller motor with the KV<2500

Suitable Car: 1/10 car

Resistance:0.0005ohm

Battery:2-4 cells Lipo/4-12 cells NiMH

BEC Output:6.1V/3A(switch mode)

Program card Specifications:

Low voltadge cut off: 3.1V/2.9V/2.7V/0V

Start mode:Medium/soft/strong

Max brake force: 25%,50%,75%,100%

Max reverse force: 25%,50%,75%,100%

Neutral range: 6%,9%,12%,work state

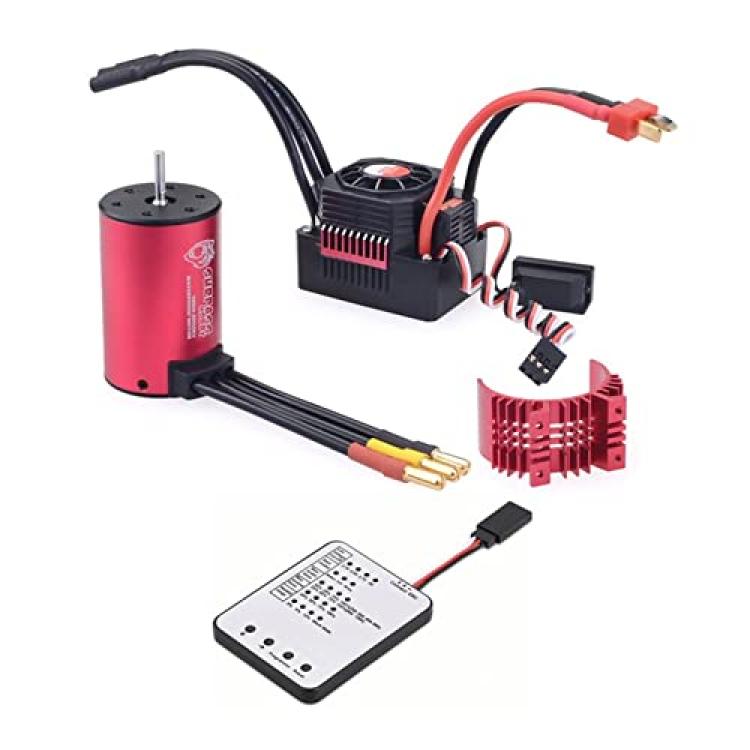

Package Included:

1 x KK 3660 Motor

1 x 80A ESC

1 x Heatsink

1 x Program Card
