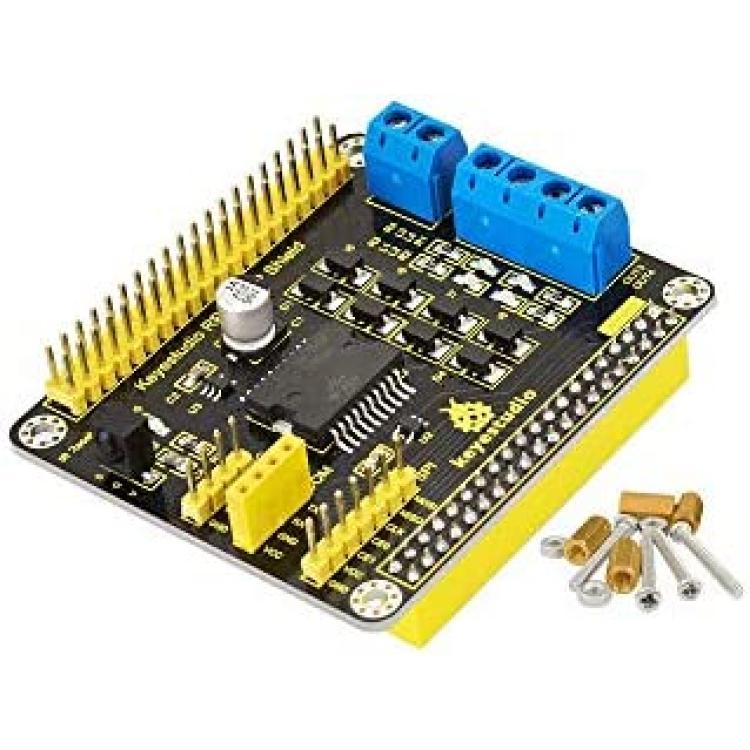

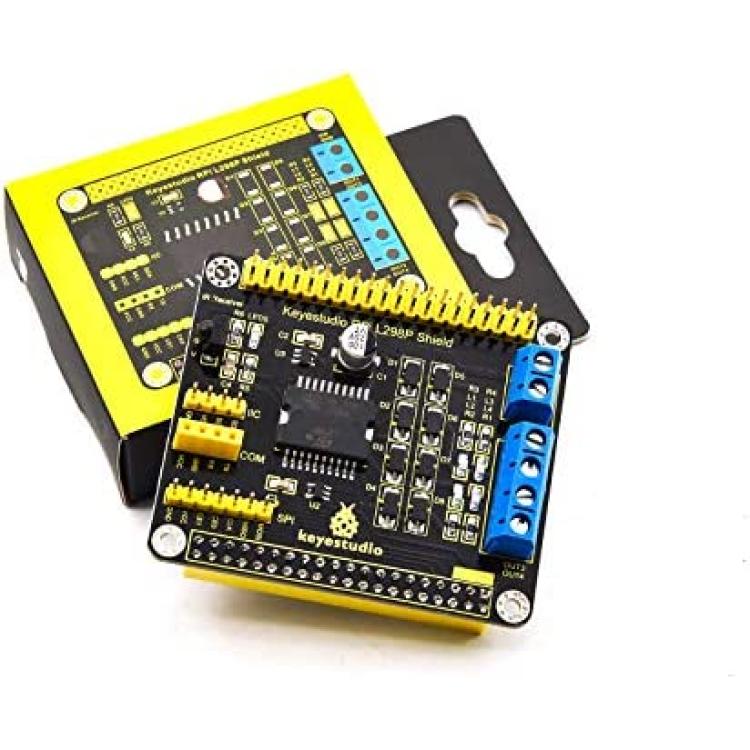

KEYESTUDIO L298P Motor Driver HAT Shield GPIO for Raspberry Pi Model B/B+/A+/2/3/4 Zero and Zero W, High-Power Motor Speed Control Board Dual H Bridge with IR Receiver
Availability: Pre-Order, Inquiry Price
About this product
*This Motor Driver HAT gives your Raspberry Pi the ability to drive two DC motors, with drive current up to 2A.
*Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards like Raspberry Pi Zero/Zero W/Zero WH/2B/3B/3B+/4B and later versions
*Reserved I2C SPI control pins, allows to work with other control boards and sensors. Comes with an IR receiver for communication with an infrared remote controller.

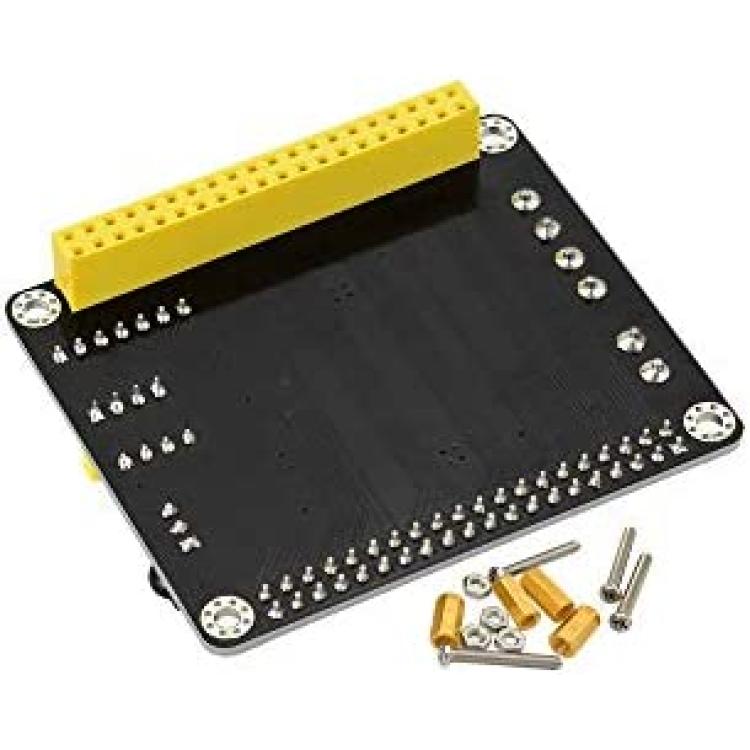

*Included 4x M2.5*20MM screws, 4 xM2.5*10MM copper pillars, 4x M2.5 Nuts. Easy to install on your RPi board. Please note Raspberry Pi board, remote control and motors in the photos are Not Included!
*Logic part input voltage: 5V ; Driving part input voltage: 4.8 ~ 24V ;
Description
This motor driver shield is suitable for Raspberry Pi 1 Model B+ / Pi 2 Model B / Pi 3 Model B / Pi 1 Model A+/Pi 4/Zero /Zero W
Specification:
Logic part input voltage: 5V
Driving part input voltage: 4.8 ~ 24V
Logic part working current Iss: ?36mA
Driving part working current Io: ? 2A
Maximum power dissipation: 25W (T=75?)
Control signal input level:
High level: 2.3V ? Vin ? 5V
Low level: 0V ? Vin ? 1.5V
Working temperature: -25???130?
Driver form: Dual H Bridge driving
Shipping List:
1 x RPI motor driver shield
1 x Installation RPi Screw Pack (12pcs)
