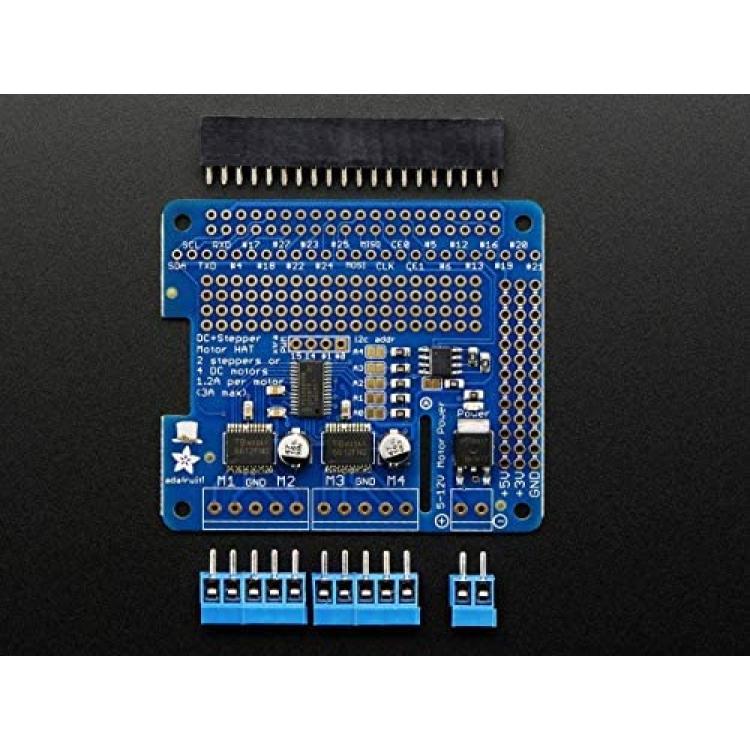

Adafruit DC & Stepper Motor HAT for Raspberry Pi - Mini Kit

This Raspberry Pi add-on is perfect for any motion project as it can drive up to 4 DC or 2 Stepper motors with full PWM speed control. Raspberry Pi and motors are not included. Since the Raspberry Pi does not have a lot of PWM pins, this HAT uses a fully-dedicated PWM driver chip onboard to both control motor direction and speed. This chip handles all the motor and speed controls over I2C. Only two pins (SDA & SCL) are required to drive the multiple motors, and since it's I2C you can also connect any other I2C devices or HATs to the same pins. In fact, you can even stack multiple Motor HATs, up to 32 of them, for controlling up to 64 stepper motors or 128 DC motors (or a mix of the two) - just remember to purchase and solder in a stacking header instead of the one we include. Motors are controlled by TB6612 MOSFET drivers with 1.2A per channel and 3A peak current capability, a big improvement over L293D drivers and there are built-in flyback diodes as well. We even had a little space so we added a polarity protection FET on the power pins and a bit of prototyping area. And the HAT is assembled and tested here at Adafruit so all you have to do is solder on the included 2x20 plain header and the terminal blocks. Comes with an assembled & tested HAT, terminal blocks, and 2x20 plain header. Some soldering is required to assemble the headers on. Stacking header not included, but we have them as well. Raspberry Pi, motors, and battery pack are not included but we have lots of motors in the shop and all our DC motors, and stepper motors work great. Check out Adafruit's detailed tutorial for tons of info including schematics, wiring diagrams, python libraries and example walkthroughs.
