Motor Drive Module L298N L298P Dual Full Bridge Motor Drive Module Electronic Component for Motor Shield

Motor Drive Module L298N L298P Dual Full Bridge Motor Drive Module Electronic Component for Motor Shield

Brand: ‎Walfront
Product Code: MM17536
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

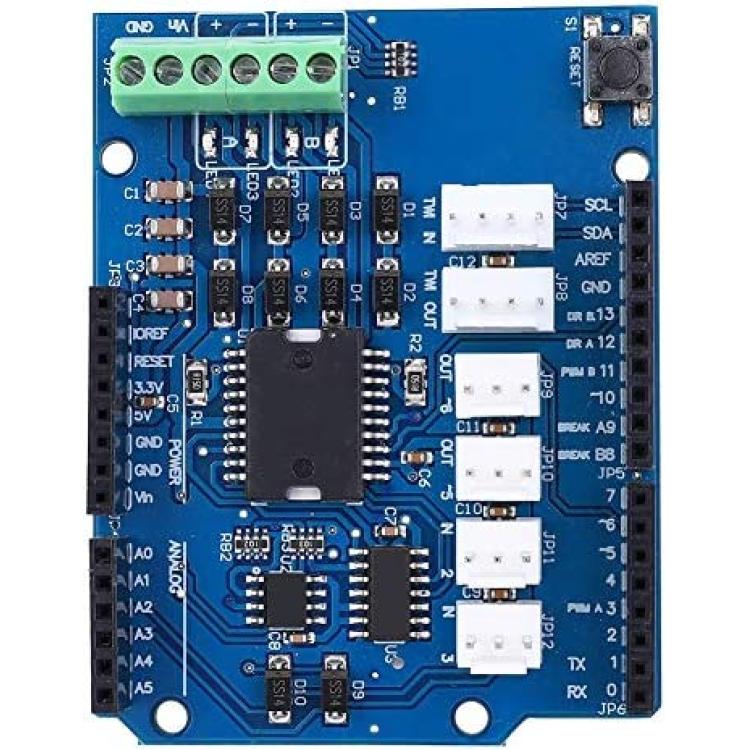

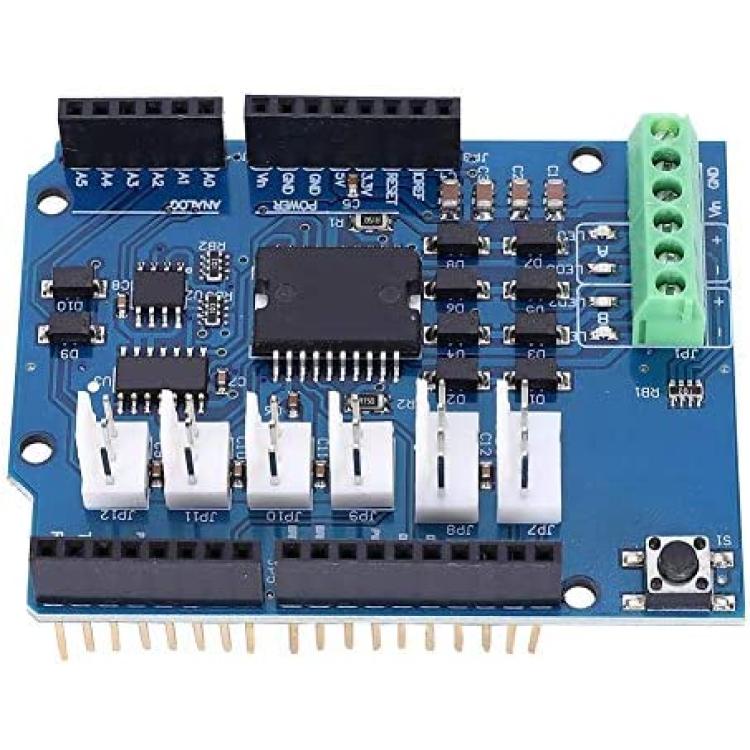

*✨ Apply to:The motor shield is based on the L298 (datasheet), which is a dual full-bridge driver designed to drive inductive loads such as relays, solenoids, DC and stepping motors.

*✨ Product Manual:It lets you drive two DC motors with your board, controlling the speed and direction of each one independently.

*✨ Measure Motor Current Absorption:You can also measure the motor current absorption of each motor, among other features.

*✨ Compatibility Description:The shield is compatible for TinkerKit, which means you can quickly create projects by plugging modules to the board.

*✨ Function Description:With free running stop and brake function, it is widely used for car driving and stepping motor driving.

Description

Feature:
1. The motor shield must be powered only by an external power supply. Because the L298 IC mounted on the shield has two separate power connections, one for the logic and one for the motor supply driver. The required motor current often exceeds the maximum USB current rating.
2. External (non-USB) power can come either from an AC-to-DC adapter (wall-wart) or battery. The adapter can be connected by plugging a 2.1mm center-positive plug into the board power socket on which the motor shield is mounted or by connecting the wires that lead the power supply to the Vin and GND screw terminals, taking care of the polarities.

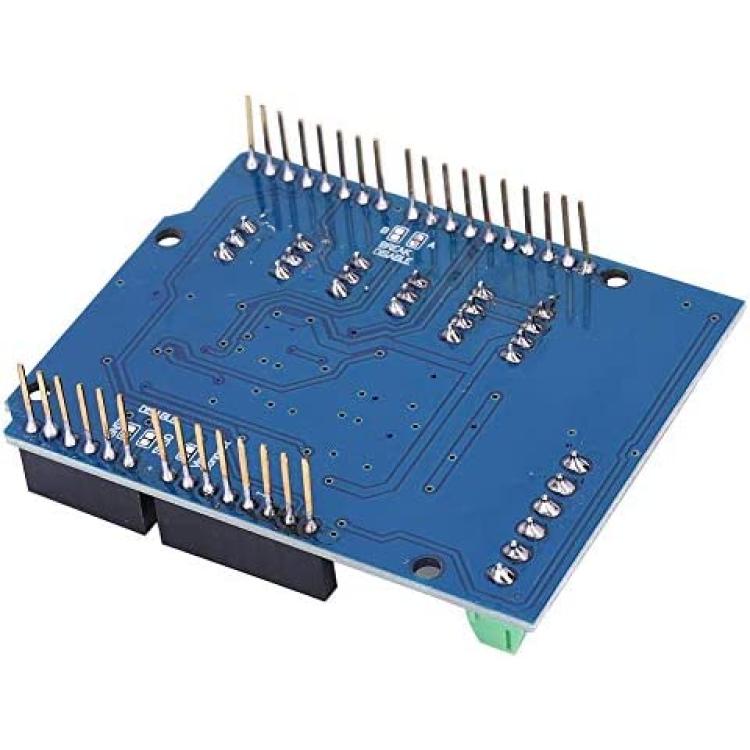

3. To avoid possible damage to the board on which the shield is mounted, we reccomend using an external power supply that provides a voltage between 7V and 12V. If your motor require more than 9V we recommend that you separate the power lines of the shield and the board on which the shield is mounted. This is possible by cutting the "Vin Connect" jumper placed on the back side of the shield. The absolute limit for the Vin at the screw terminals is 18V.

Specification:

Package List:
