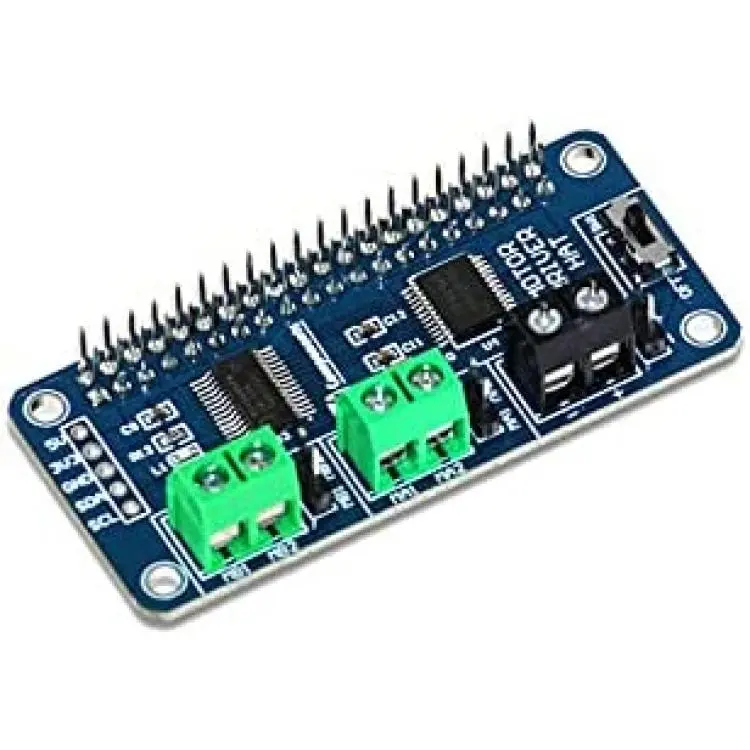

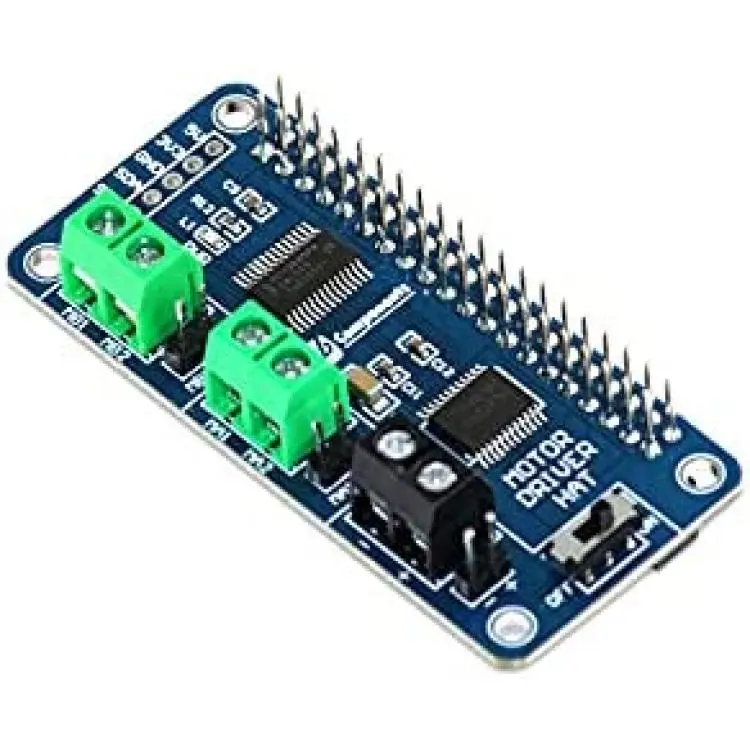

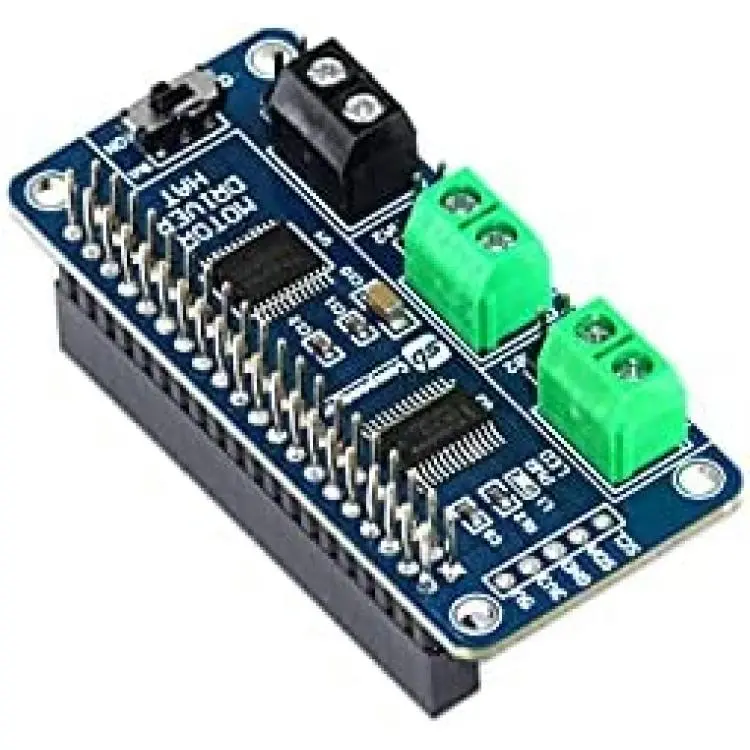

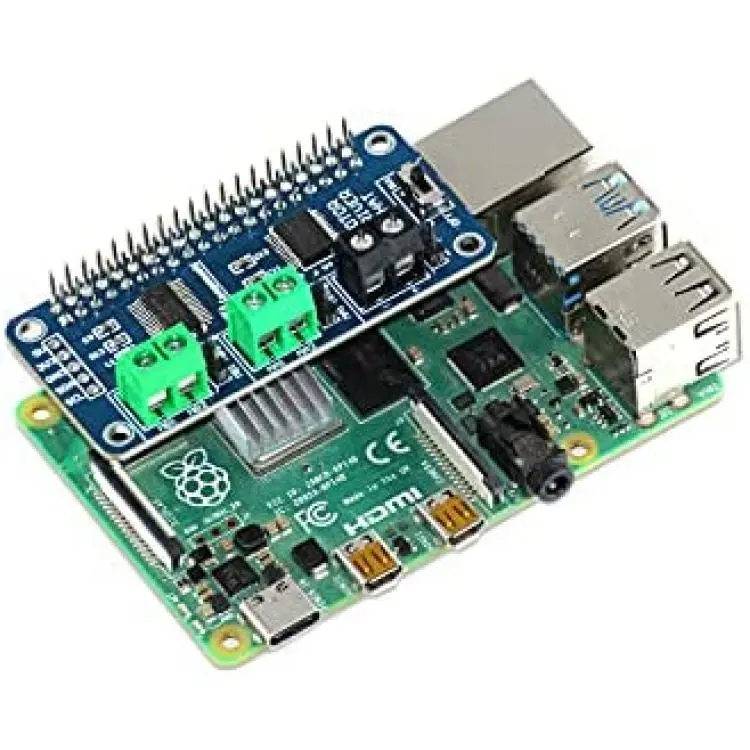

sb components Raspberry Pi Motor Driver Board I2C IIC Interface Motor Driver HAT for Raspberry Pi - Control 2 DC Motors Simultaneously
About this product
*Raspberry Pi motor driver board
*Build DIY mobile robots with motor driver
*Control 2 DC motor simultaneously
*I2C control interface
*Powerful onboard PCA9685 chip
Description
Standard Raspberry Pi 40 Pin GPIO Extension Header5V RegulatorCurrent up to 3AI2C control interfaces with 5 address selection jumper.I2C Controller Pins12-bit hardware PWM For Speed Adjustment of MotorControl 2 DC Motor SimultaneouslyLogic voltage: 3.3VPower supply: 6V~12V (VIN terminal)PWM driver: PCA9685Motor driver: TB6612FNGControl interface: I2C VCC - 5V GND - GND SDA - GPIO 2 SCL - GPIO 3 1 x Motor Driver HAT for Raspberry Pi
