Raspberry Pi Motor Driver Expansion Module Board DC Motor Stepper Motor Driver with Freescale H-Bridge Driver MC33886 for DIY Mobile Robot Remote Control Based on Raspberry Pi

Raspberry Pi Motor Driver Expansion Module Board DC Motor Stepper Motor Driver with Freescale H-Bridge Driver MC33886 for DIY Mobile Robot Remote Control Based on Raspberry Pi

Brand: Waveshare
Product Code: MM18368
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

About this product

*Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boards

*Freescale H-bridge driver MC33886, controls DC motors to turn in both directions

*Onboard 5V regulator, provides power to Raspberry Pi

*Onboard IR receiver, used for remote control robot

*Multi protection circuit, excellent stability

Description

Overview

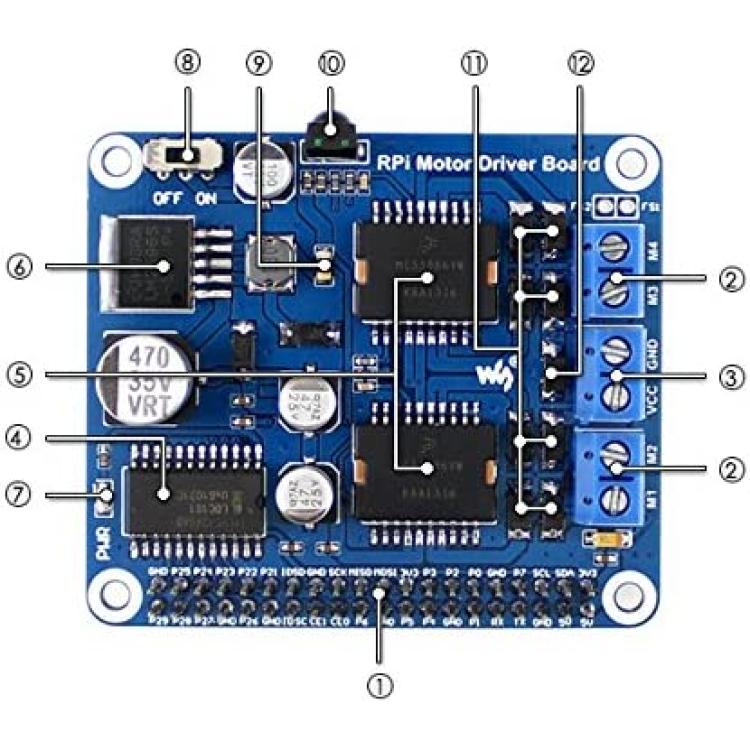

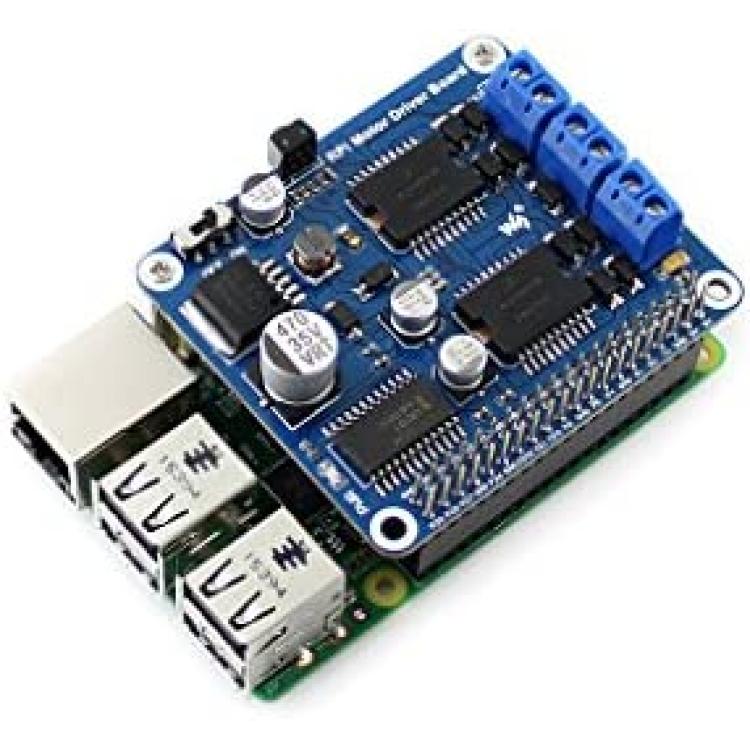

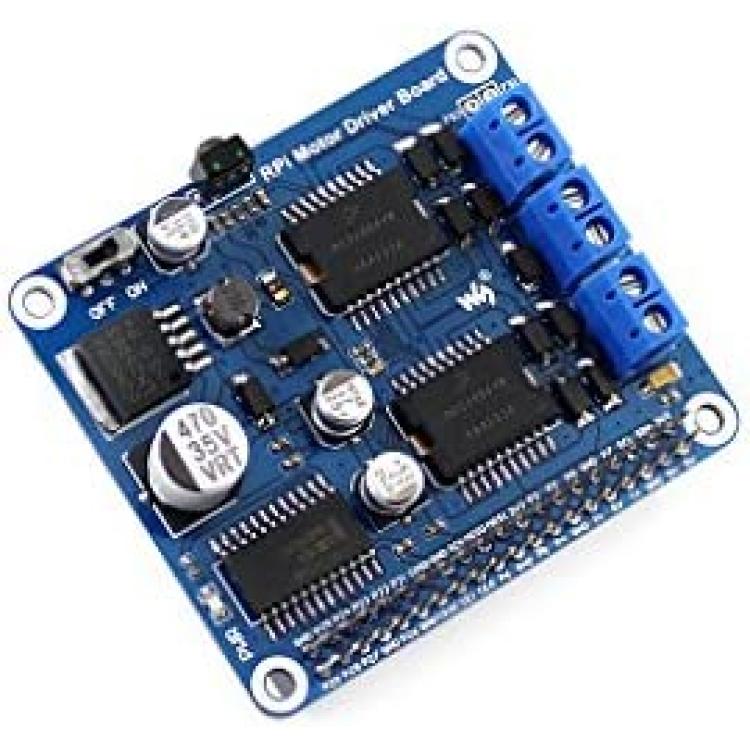

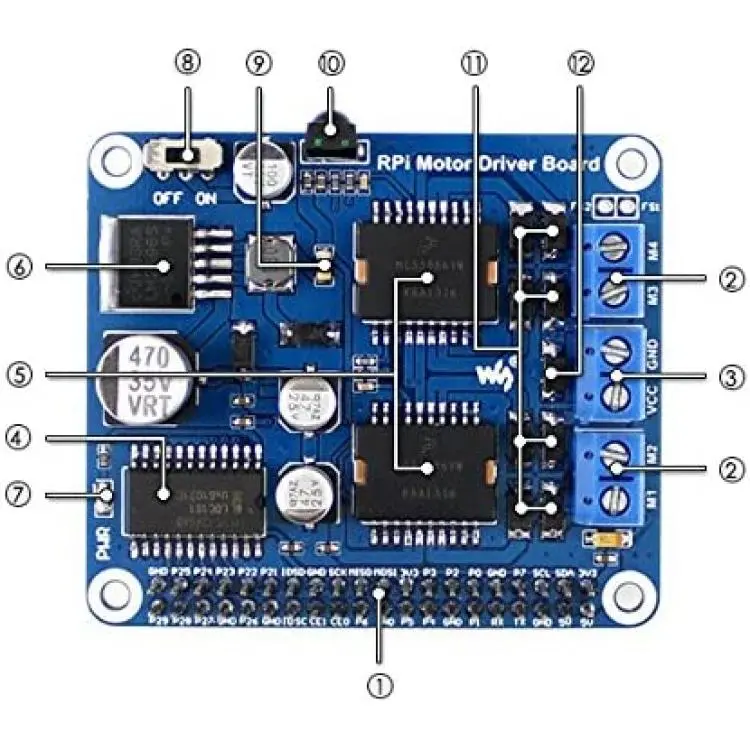

The RPi Motor Driver Board gives your Pi the ability to drive two DC motors OR one stepper motor. It's an ideal choice to DIY mobile robot based on Raspberry Pi.

Features

Standard Raspberry Pi 40PIN GPIO extension header, supports Raspberry Pi series boardsFreescale H-bridge driver MC33886, controls DC motors to turn in both directionsOnboard 5V regulator, provides power to Raspberry PiOnboard IR receiver, used for remote control robotMulti protection circuit, excellent stabilityPower input range: 7V~40VSingle motor output current: up to 5APower supply current for Raspberry Pi: up to 2A
