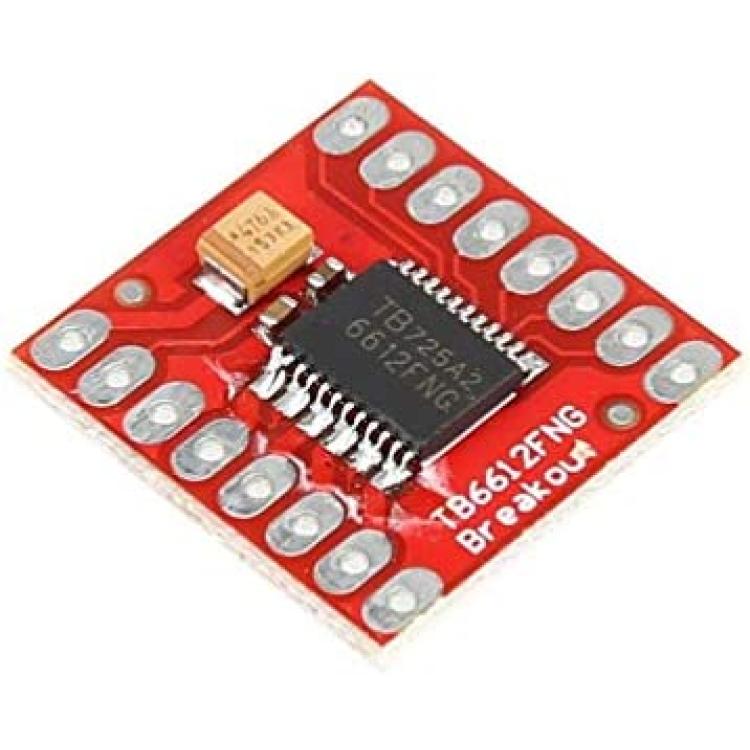

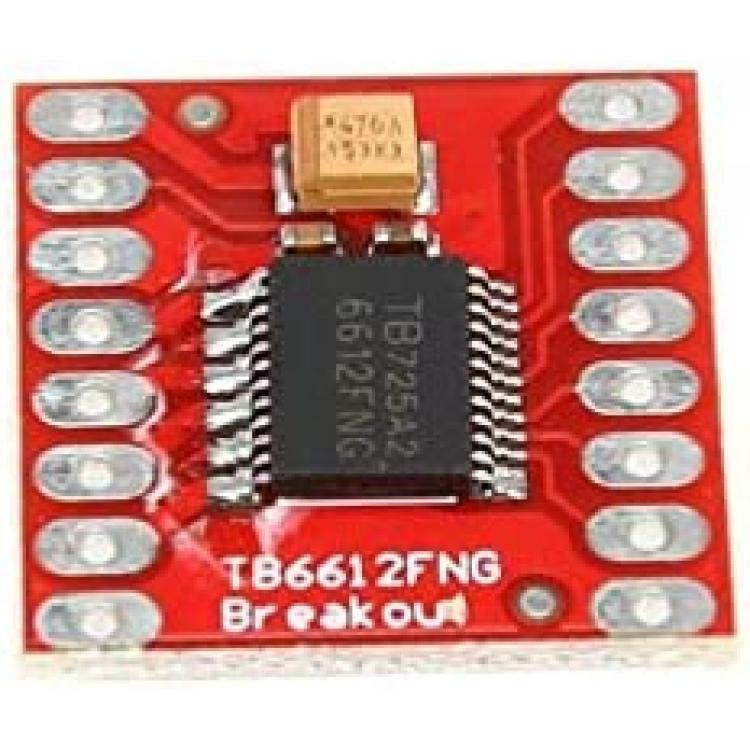

Davitu Motor Driver - TB6612FNG Motor Driver Board Module Dual DC Stepper Motor Control Experiment Industry Robot Electronic DIY Parts Microcontroller

Features:
1.CW/CCW/short brake/stop motor control modes.
2. Built-in thermal shutdown circuit and low voltage detecting circuit.
3. All pins of the TB6612FNG broken out to 0.1"" spaced pins,input pins are on one side and output pins are on the other.
4. Filtering capacitors on both supply lines.
5. Widely used in experiment,industry,robot, electronic DIY etc.
Descriptions:
1. The TB6612FNG motor driver can control up to two DC motors at a constant current of 1.2A (3.2A peak).
2. Two input signals (IN1 and IN2) can be used to control the motor in one of four function modes - CW, CCW, short-brake, and stop.
3. Widely used in experiment,industry,robot, electronic DIY etc.
Specifications:
Color:red
Model: TB6612FNG
Power supply
voltage: VM=15V Maximum, VCC=2.7-5.5V
Output current: Iout=1.2A(average) / 3.2A (peak)
Applications: experiment,industry,robot, electronic DIY etc
Size: 20 x 20mm
Weight:1g
Package Information:
Package size:70 x 50 x 10mm/2.76 x 3.15 x 0.98in
Package Weight:3g/0.10oz
Poly Bag Package
Package includes:

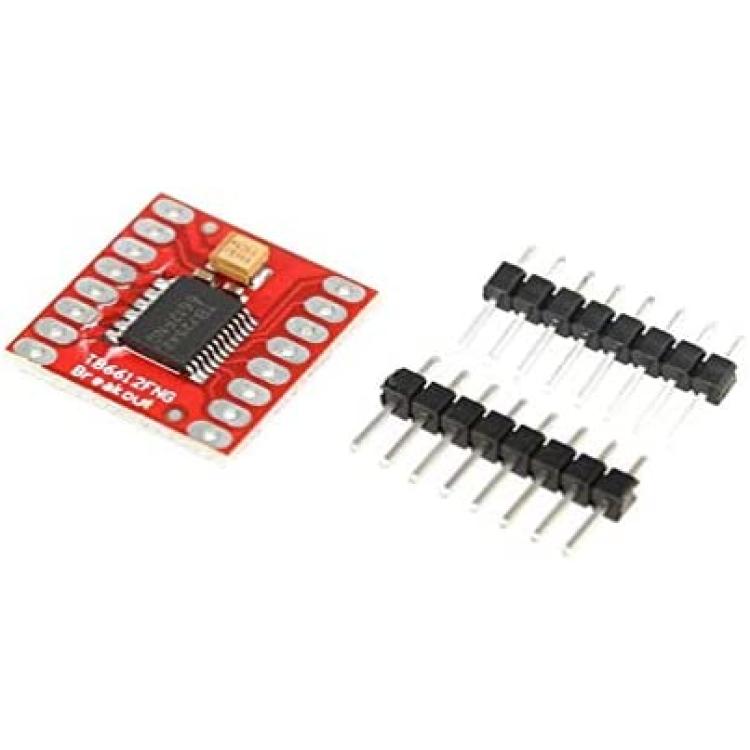

1 x TB6612FNG Module
Notes:
1. Please allow 0-1 inch error due to manual measurement. Thanks for your understanding.
2. Monitors are not calibrated same, item color displayed in photos may be showing slightly different from real object.
Item specifics:
Motor type: DC Motor
Certification: NONE
Origin: CN(Origin)
Model number: TB6612FNG Module
