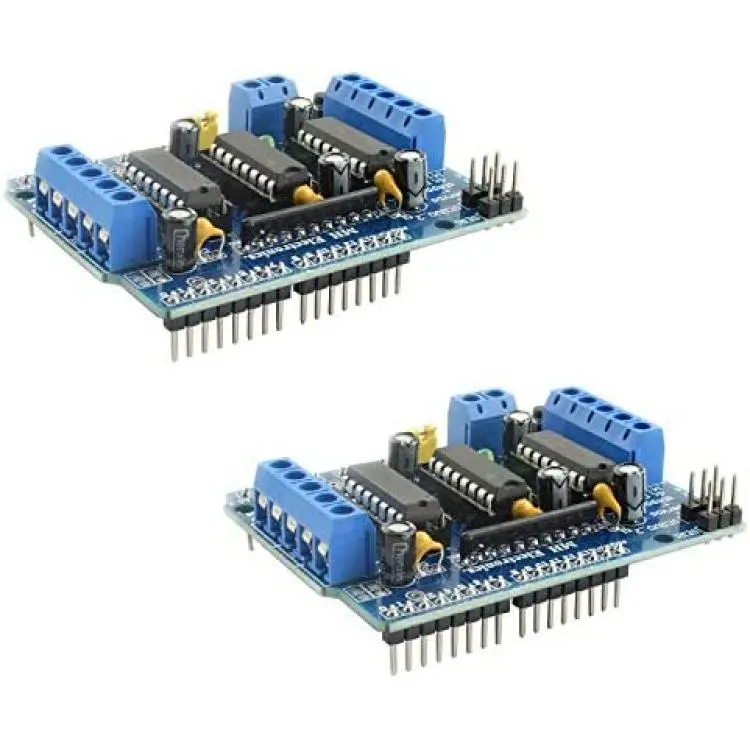

Maxmoral 2-Pack L293D Motor Shield Stepper Driver Board Control Module Motor Drive Expansion Board for Arduino
Availability: Pre-Order, Inquiry Price
About this product
*Type: 2pcs L293D motor control shield, a fully functional motor expansion board can drive various simple to slightly complex projects.
*Features: Multi-function, easy to operate, with powerful driver library support and function updates.
*Usage: Can drive 4-way DC motor or 2-way stepper motor as well as 2-way steering gear. Supports the latest Arduino UNO, Arduino Mega 2560.
*Regular Collocation: Drive 4-way DC motor and 2-way steering gear; Drive 2-way DC motor and 1-way stepper motor and 2-way steering gear; Drive 2-way stepper motor and 2-way steering gear.
*Application: Suitable for Arduino beginners, Arduino experimental equipment platform, Arduino interactive electronics, Arduino robot, etc.
Description
Description:

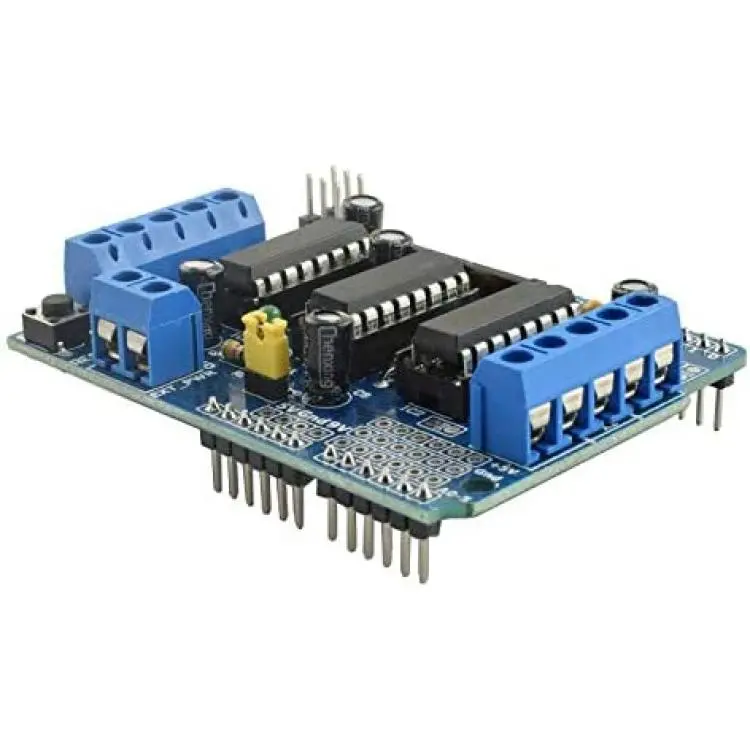

This is a commonly used DC motor driver module, adopting 293D DC motor driver chip with small current. The pins are compatible with Arduino, which also facilitates rapid development based on Arduino for hobbyists.
Specification:
Two 5V servo motor (steering gear) ports connected to Arduino's high resolution precision timer - no jitter!
Up to 4 bidirectional DC motors and 4-Channel PWM speed regulation (approx. 0.5% resolution)
Up to 2 stepper motor forward and reverse control, single/double step control, staggered or micro step and rotation Angle control.
4-Way H-bridge: The L293D chip provides 0.6A (peak value 1.2A) current for each bridge with thermal power protection, 4.5V to 36V.
The pull-down resistor ensures that the motor remains in a stopped state when energized.
Large terminals make wiring easier (10-22AWG).
With Ardunio reset button.
2 external power supply terminals ensure the separation of logic and motor drive power.
Compatible with Mega, Diecimila & Duemilanove.
Package:
2x L293D motor control shield
