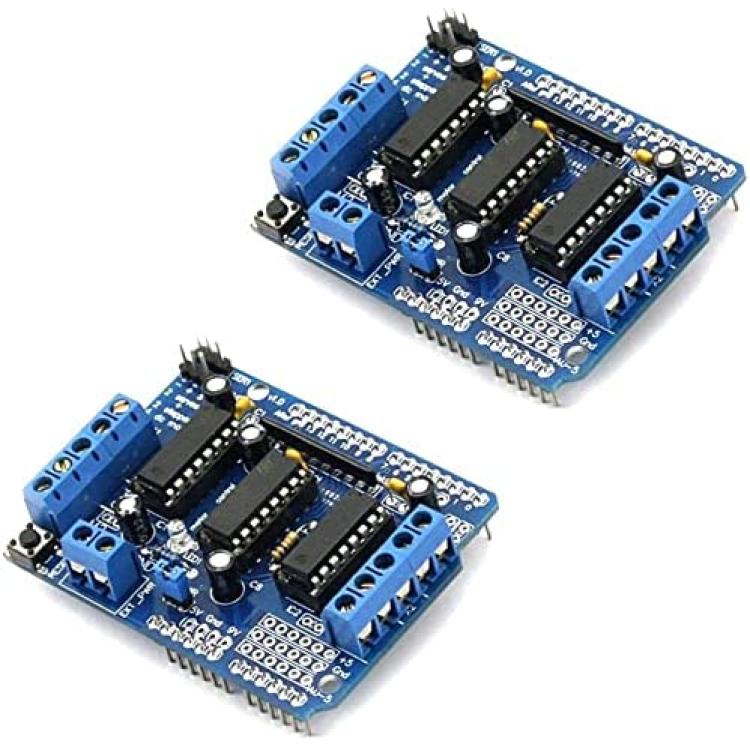

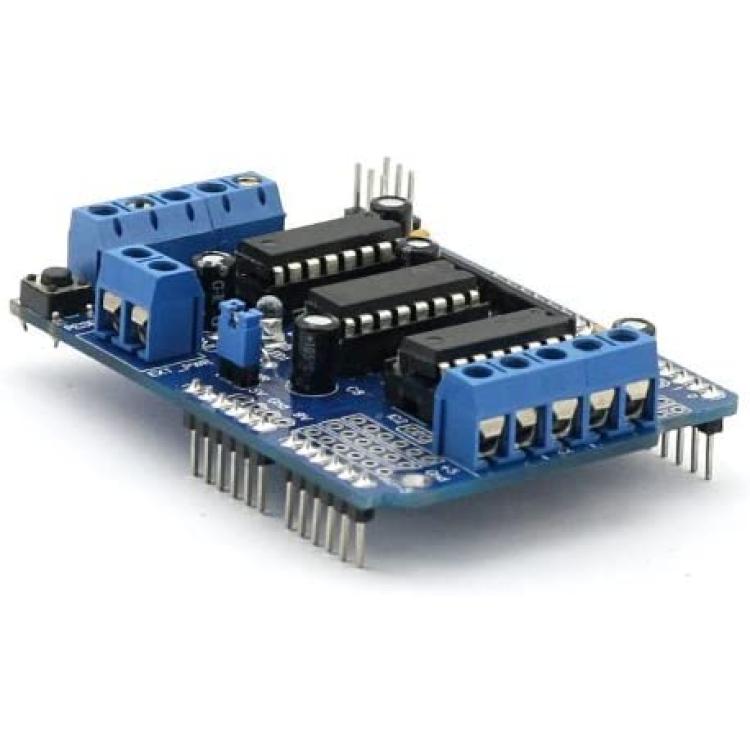

2 PCS L293D DC Motor Drive,Aideepen Motor Control Shield Module Stepper Motor Drive Shield Expansion Board
About this product
*【L293D】 L293D chip is a type of H-Bridge. You can use DC motors and power supplies of up to 36 Volts, supply a maximum current of 600mA per channel.
*【4-channel】This L293D motor control shield is a monolithic integrated, high voltage, high current, 4-channel driver.Can drive 4 DC motors or 2 stepper motors or 2 Servo.
*【4 H-Bridges】per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on DC 4.5V to 36V.
*【Double coil】Up to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.ideal for many robot and CNC projects.
*【Why choose us】2pcs L293D motor control shield,Multi-function, easy to operate.Aideepen specializes in various electronic components,We have always cared about the customer experience and improve the product function details,please feel free to contact us.
Description
Features:

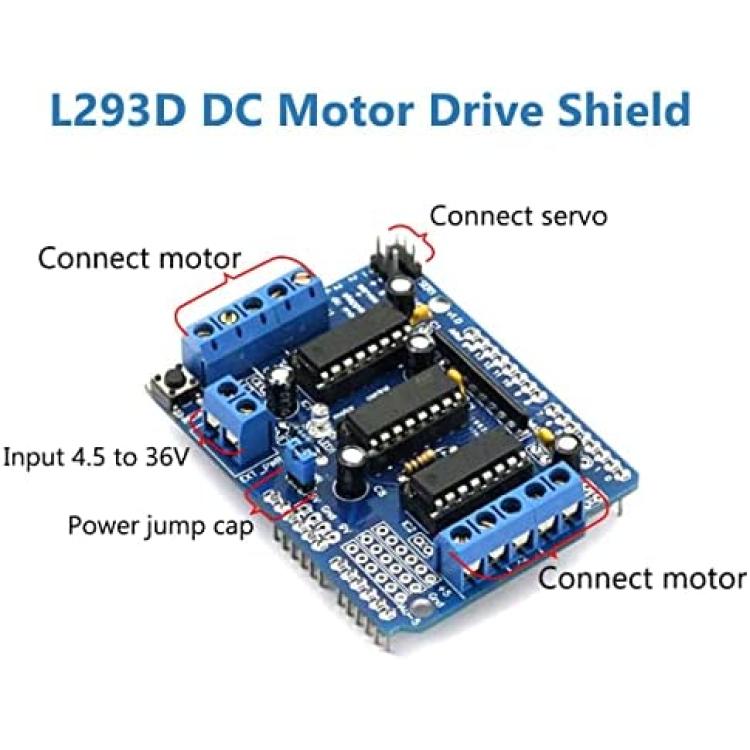

Features:L293D is a monolithic integrated, high voltage, high current, 4-channel driver.You can use DC motors and power supplies of up to 36 Volts, the chip can supply a maximum current of 600mA per channel, the L293D chip is also whats known as a type of H-Bridge.The H-Bridge is typically an electrical circuit that enables a voltage to be applied across a load in either direction to an output, e.g. motor.2 interface for 5V Servo connected to the high-resolution dedicated timer - no jitter!Can drive 4 DC motors or 2 stepper motors or 2 ServoUp to 4 bi-directional DC motors with individual 8-bit speed selectionUp to 2 stepper motors (unipolar or bipolar) with single coil, double coil or interleaved stepping.4 H-Bridges,per bridge provides 0.6A (1.2A peak current) with thermal protection, can run motors on 4.5V to 36V DCPull down resistors keep motors disabled during power-up - reset button2 external terminal power interface, for seperate logic/motor suppliesTested compatible for Mega, Diecimila and Duemilanove
