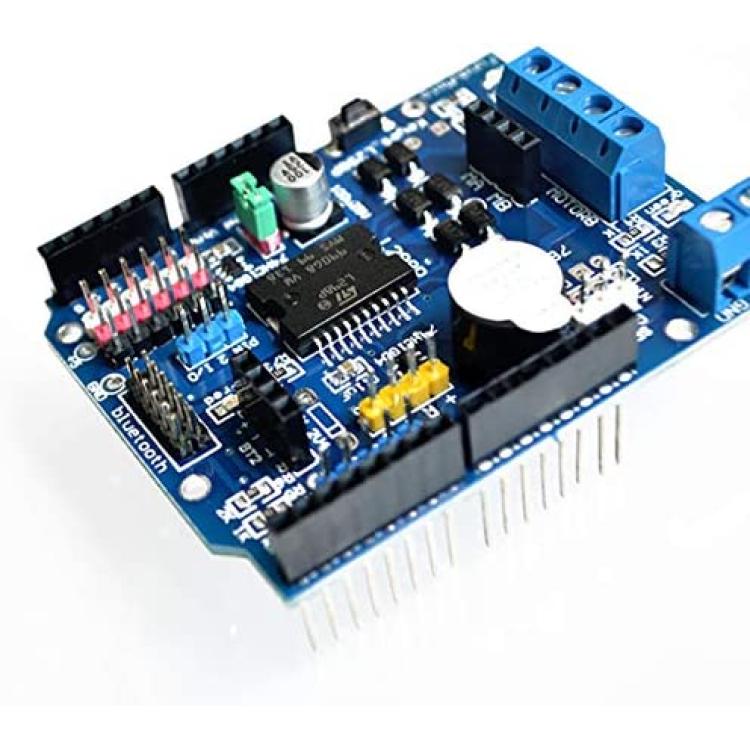

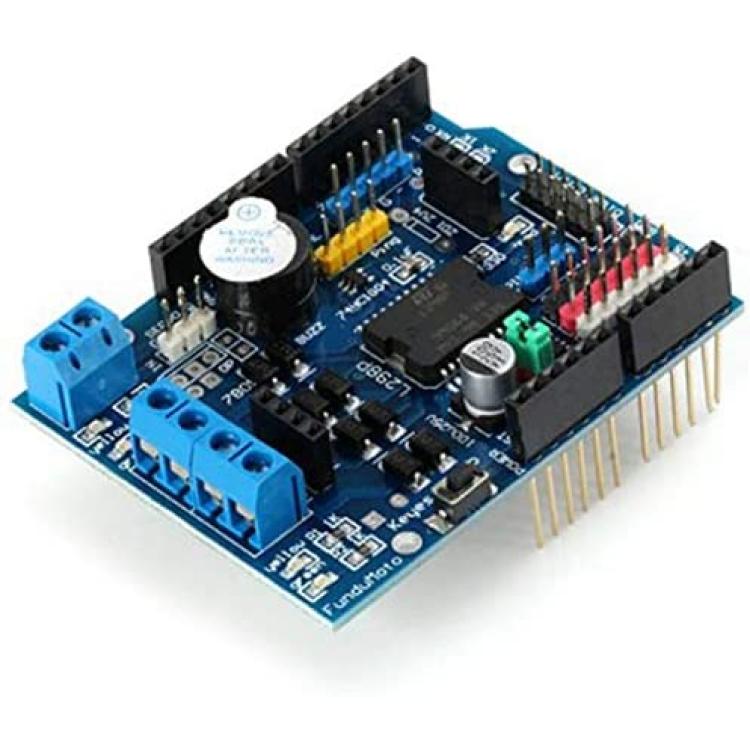

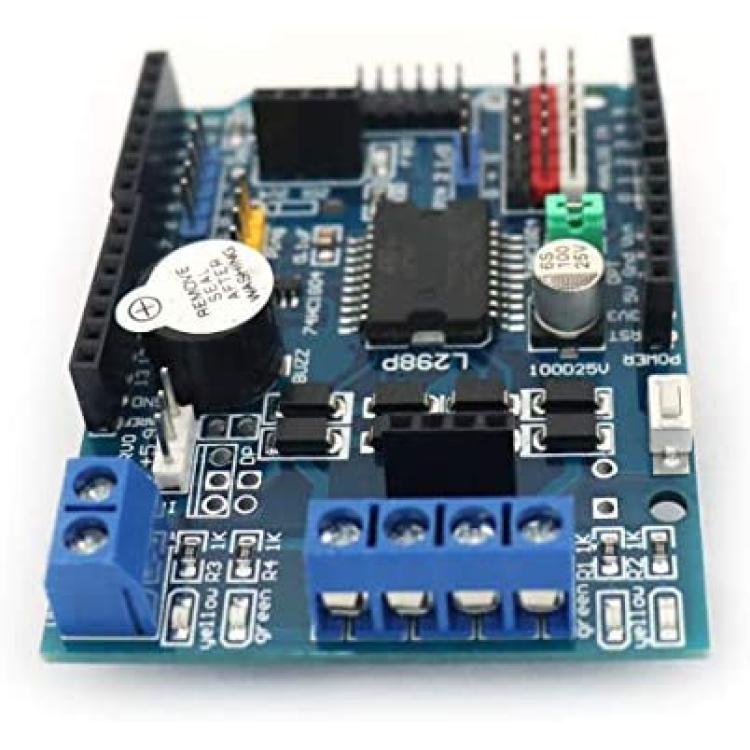

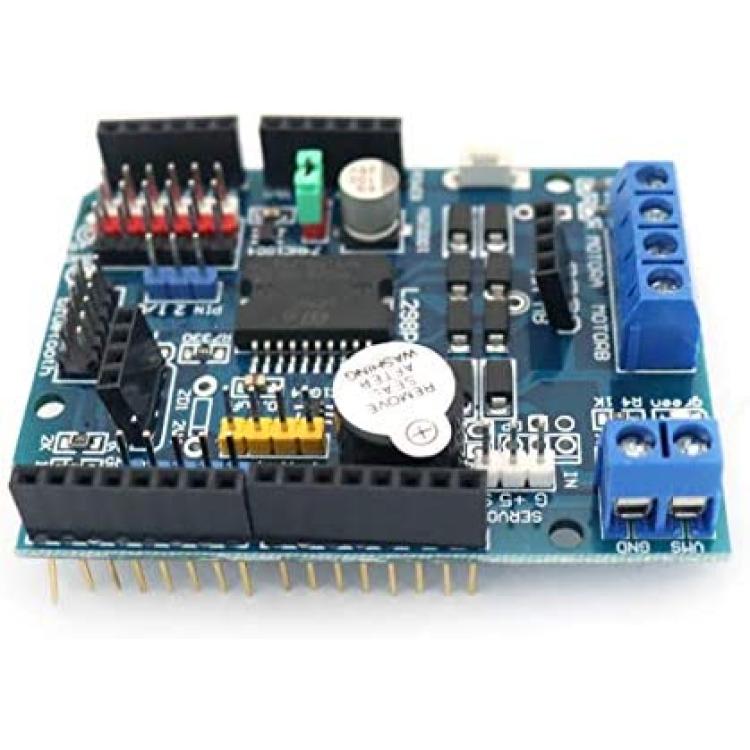

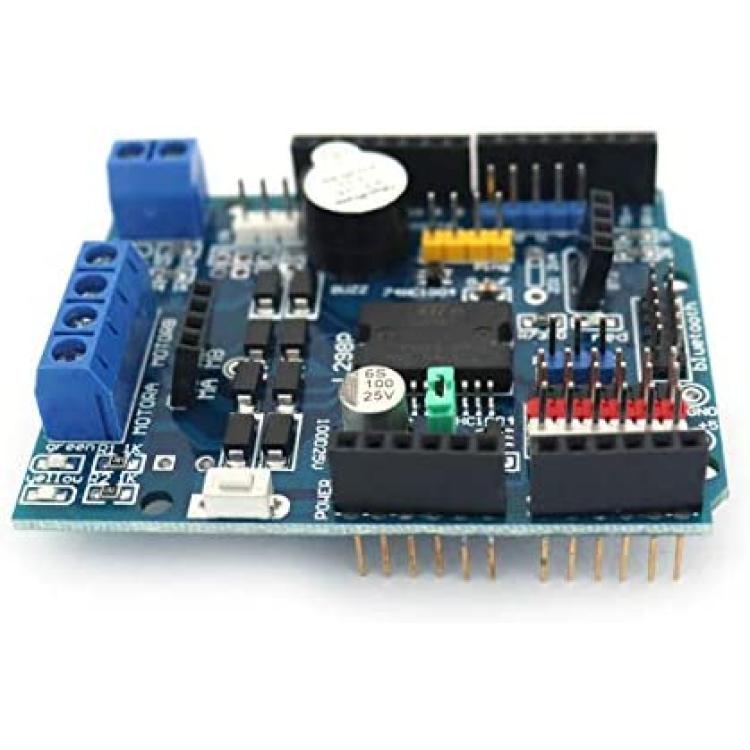

FainWan L298P DC Motor Drive Module L298P DC Motor Drive Shield H-Bridge Drive Expansion Board High-Power DC Stepper Motor Controller Compatible with Ar-duino

FainWan L298P DC Motor Drive Module L298P DC Motor Drive Shield H-Bridge Drive Expansion Board High-Power DC Stepper Motor Controller Compatible with Ar-duino

Name: FainWan L298P DC Motor Drive Module L298P DC Motor Drive Shield H-Bridge Drive Expansion Board High-Power DC Stepper Motor Controller Compatible with
Brand: ‎FainWan
SKU: MM24592
Availability: InStock

Brand: ‎FainWan
Product Code: MM24592
Availability: Pre-Order, Inquiry Price

US$0.00

- +

For Bulk Order, Get Better Price.

Description

Technical Specifications:
1. Logical part of the input voltage VD: 5V
2. Driven part of the input voltage VS: VIN Input 6.5 ~ 12V, PWRIN 4.8 ~ 35V input
3. Logical part of the work current Iss: <36mA
4. Driven part of the operating current Io: <2A
5. Maximum power dissipation: 25W (T = 75 Celsius)
6. control signal input level: High 2.3V low -0.3V
7. Working temperature: -25 + 130 Celsius
8. Hardware interface: 5.0mm pitch terminal
9. Belt clip and can be controlled via front row access signal
10. Drive Type: Dual power H-bridge driver
11. Pin occupancy: D4 ~ D7 direct drive motor
12. Supports PWM / PLL mode motor speed control

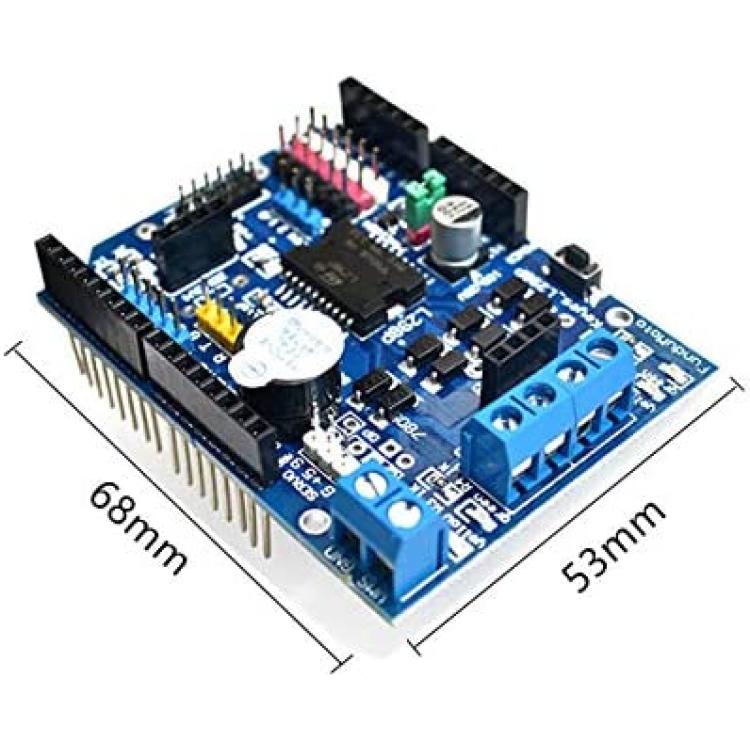

13. Size: 68 * 53mm
Packing included:
1 x L298P Motor Driver Module

Tags: L298P Motor Driver, DC Motor Shield, Arduino Compatible, H-Bridge Driver, Motor Control Module, Stepper Motor Controller, PWM Motor Control, L298P Module, DC Motor Drive Board
