KEYESTUDIO Motor Driver HAT Breakout Board for BBC Microbit TB6612FNG with Terminal Block Serial Pins
About this product

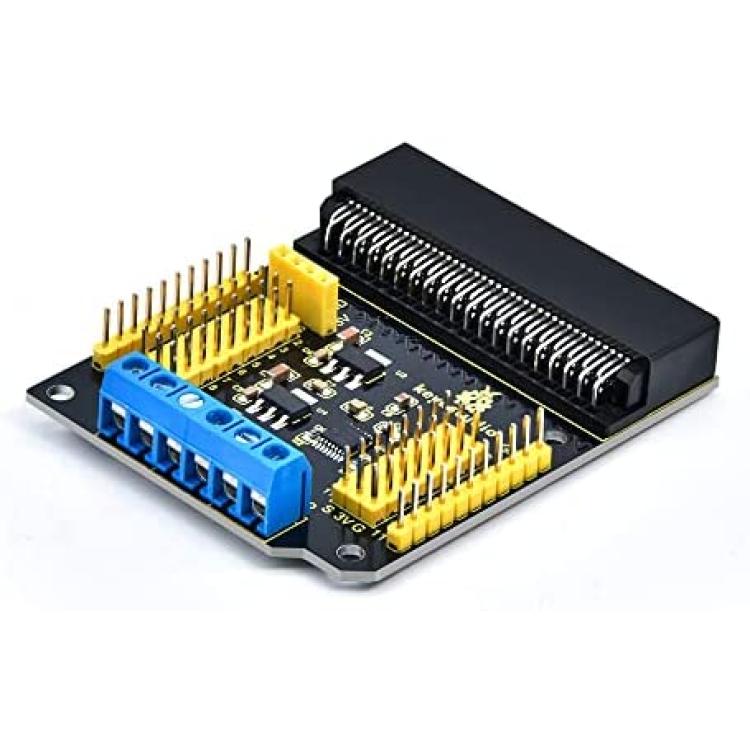

*Specially researched and developed this motor driver breakout board to facilitate the micro bit to drive DC motor.
*Four motor control modes: Forward/Reverse /Brake /Stop.Access to 3Pin headers connection.
*Integrated with 3.3V and 5V voltage-regulator chip. Comes with a serial communication port for Bluetooth module.
*EXCELLENT QUALITY: solder is very clean, everything is aligned nicely, all boards are well packed after function,voltage, current testing, protected in a beautiful box.
*Up to FCC and CE Standard: made from environmentally friendly components and materials, as well as environmentally friendly production technology, it is really safe.
Description
Introduction
Micro bit is an entry level development board designed by BBC for teens programming education.
It supports the PXT graphical programming interface developed by Microsoft, and can be used under Windows, MacOS, IOS,
Android and many other operating systems without downloading the additional compiler.
In order to facilitate the micro bit to drive DC motor, we specially develop this breakout board.
Its per channel can output up to 1.2 A continuous drive current, with peak current up to 2A / 3.2A.
There are 4 motor control modes: Forward / Reverse / Brake / Stop. And PWM supporting frequency is up to 100 kHz.
For wiring, the board breaks out all the pins with the 3PIN interface, so you can connect other sensors to the board using 3pin wire.
At the same time, a 3.3V and 5V voltage-regulated chip is integrated on the breakout board, where leads to a 3.3V and 5V power output interface.
The board also comes with a serial communication port to facilitate the connection of Bluetooth module.
Details display, wiring diagram and test code are offered on keyestudio wiki page.
Parameters
Input Voltage?DC 6-12V
Drive Partial Working Current??1.2A
Size?70mm*58mm
Features
Four motor control modes: Forward/Reverse /Brake /Stop.
Access to 3Pin headers connection
Integrated with 3.3V and 5V voltage-regulator chip
Comes with serial port communication pins
Packaging List

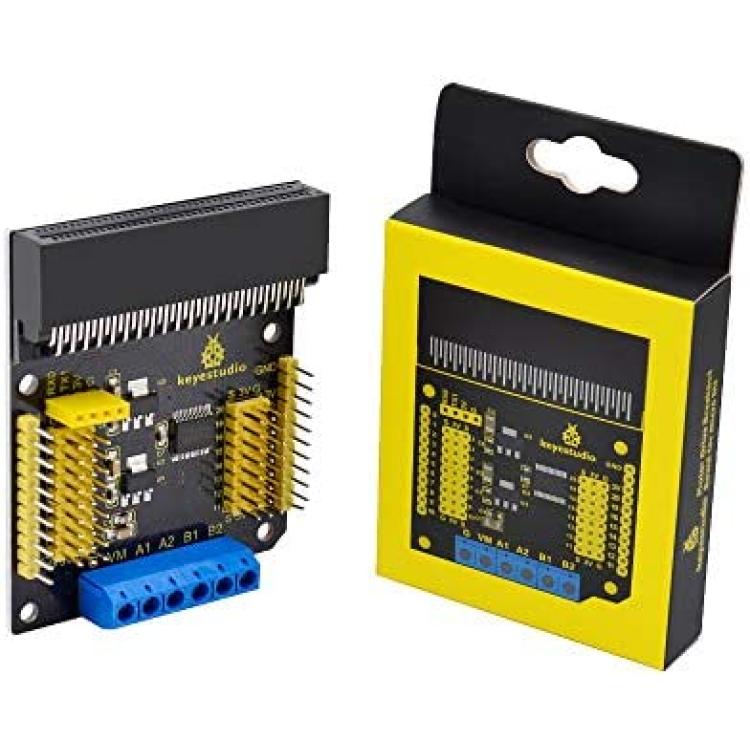

1 * KEYESTUDIO Motor Drive Breakout Board
