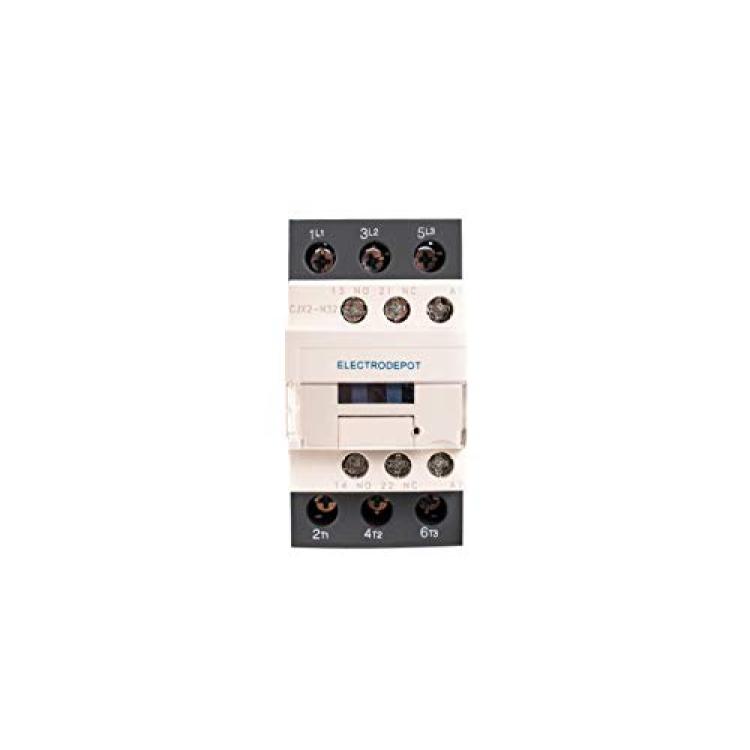

Electrodepot 30 Amp 3 Pole Normally Open IEC 660V Contactor, Auxiliary 1NO-1NC – 110-120VAC Coil, Inductive 32A, Resistive 50A with Mounting Base for DIN Rail (Pack of 2)
Availability: Pre-Order, Inquiry Price
About this product

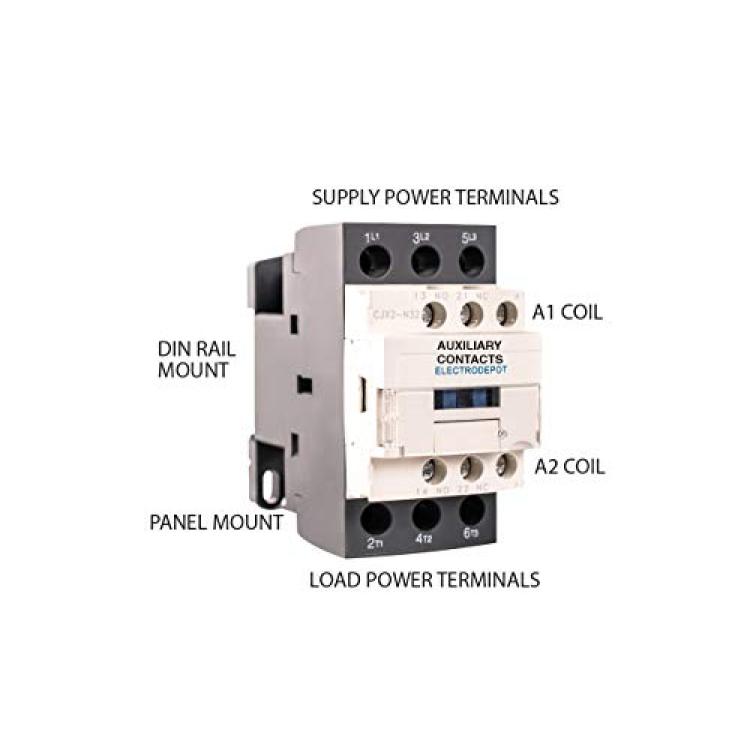

*INDUSTRIAL QUALITY COMPONENTS – Pack of 2 30Amp 3 Pole Normally Open (NO) Ballast Contactors for home and industrial uses, with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts. Compatible with 35mm DIN rails. Comply with IEC/EN standards for consistent and reliable installation. Suitable for 6-pole connections
*APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans
*FULL AMP LOAD – Inductive/Motor Load: 32Amp. Resistive/Incandescent Load: 50Amp. Power Lug Terminal Capacity AWG # 4
*COIL VOLTAGE AND LOAD – Voltage: AC 110V/120V, 50/60Hz. Load: 70VA Inrush and 7.5VA Sealed

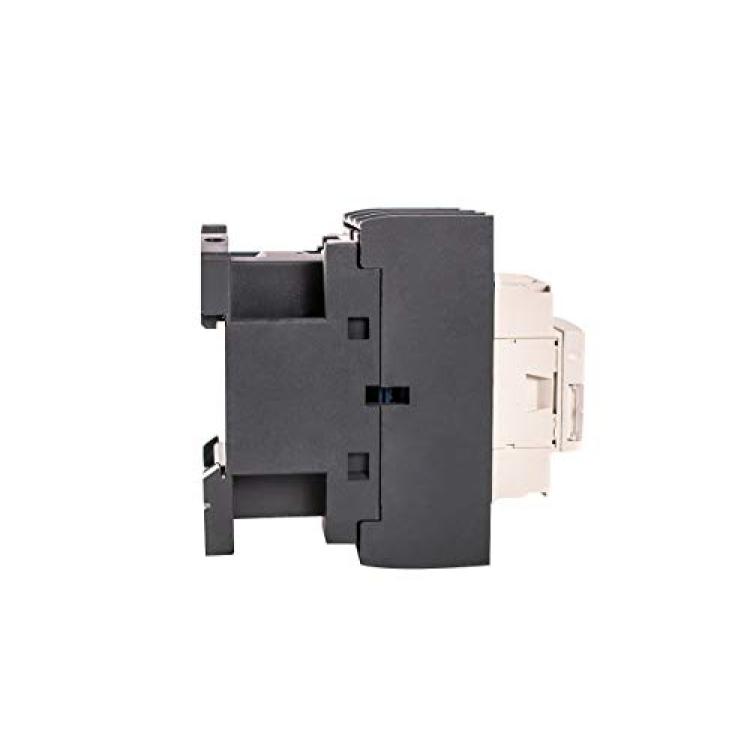

*DIMENSIONS (approx.) – 56.4 x 88.9 x 88.9 mm / 2.22 x 3.50 x 3.50 (Width x Height x Depth)
Description

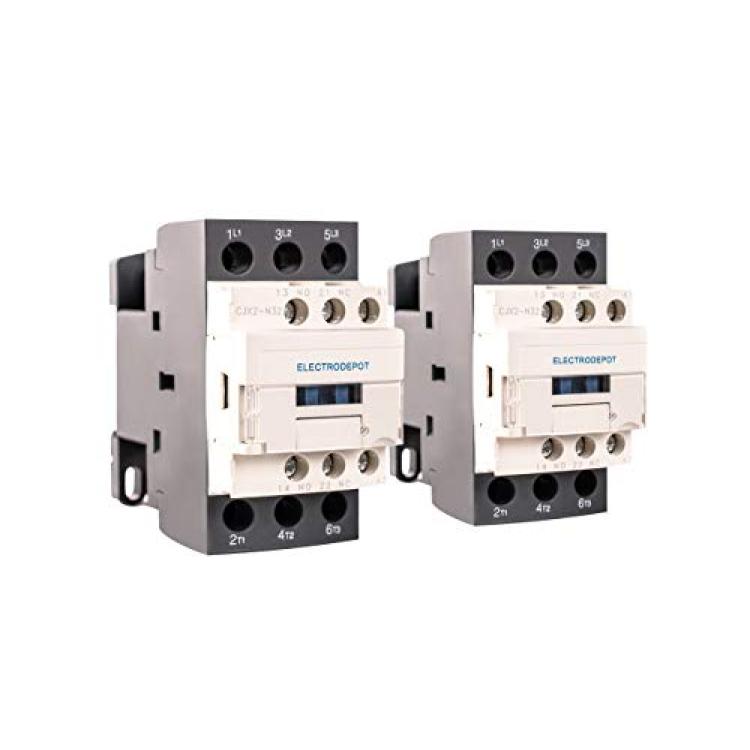

Pack of 2 30 Amp 3 Pole Normally Open IEC 660V Contactors for home or industrial uses. Perfectly compatible with DIN rail mounting.
It features 1 Normally Open and 1 Normally Closed auxiliary contacts. With applications in lighting, motor and switching.
Technical Specifications:
– Contactor 660V
– Contactor Type IEC
– Full Load Amps-Inductive 32
– Full Load Amps-Resistive 50
– Number of Poles 3
– Coil Volts: 120VAC
– Hz 50/60
– Action: Non-reversing
– Enclosure Type Open

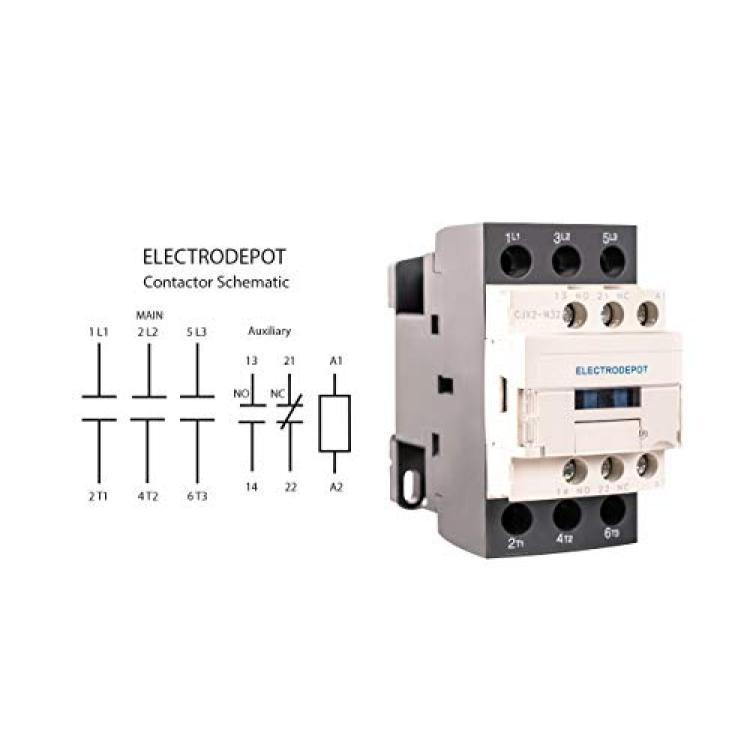

– Auxiliary Contact Form 1NC/1NO
– Coil inrush 70VA, Sealed 7.5VA
– 2 HP @ 1 Phase - 120V
– 5 HP @ 1 Phase - 230V
– 10 HP @ 3 Phase - 208V
– 10 HP @ 3 Phase - 230V
– 20 HP @ 3 Phase - 480V
– 30 HP @ 3 Phase - 575V
– Standards CE

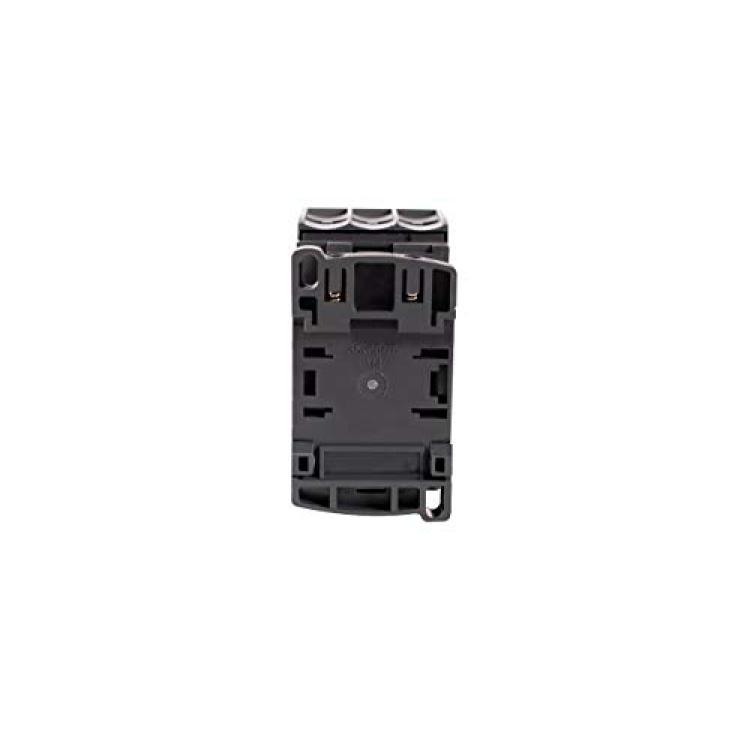

– Base or DIN 35mm mount
Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm
Compliance:

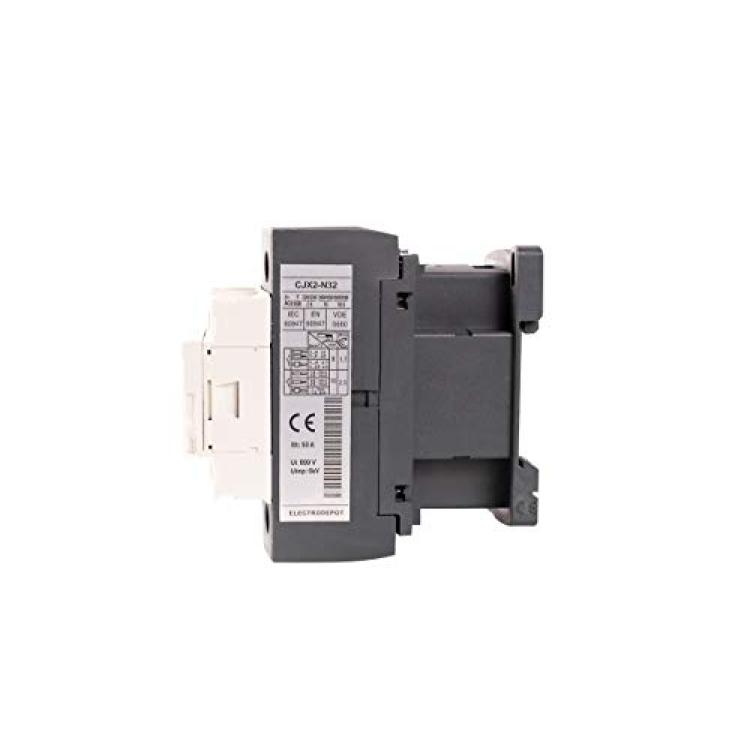

CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508
