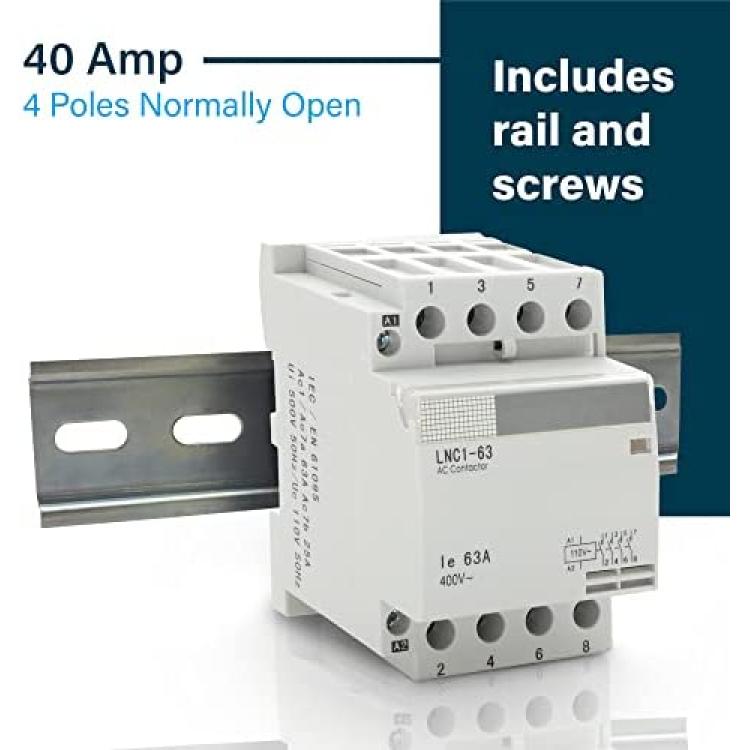

Shopcorp 40 Amp 4 Pole Normally Open IEC 400V Contactor (Silent Operation) – 110/120VAC Coil, Motor Load 32A, Lighting Load 63A | Includes 35 x 152.40 mm Steel Zinc DIN Rail and 2#10 Phillips Screws
About this product
*INDUSTRIAL QUALITY COMPONENTS – 40Amp 4 Pole Normally Open (NO) General Purpose Contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation. Includes DIN Rail made of resistant steel zinc (35 x 152.40 mm / 1.38 x 6 in) and two (2) 18-8 stainless steel #10 Phillips drive, truss head screws
*CONTACTOR APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil
*COIL VOLTAGE AND AMP LOAD – Contactor IEC 400V. Coil Voltage 110/120VAC, 50/60 Hz. Coil load Inrush 52VA, Sealed 10VA. Inductive/Motor Load: 32Amp. Resistive/Incandescent Load: 63Amp. DC Load: 30Amp @ 24VDC. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp loads. Power Lug Terminal Capacity AWG # 4
*OTHER CONTACTOR DETAILS – IEC AC Rate: AC-1; 10 kW, AC-3; 8 kW. Electric e strength: 4 kV. Operating Temperature -30…+70 °C (-22…+158 °F). Dimensions (approx.): 54 x 85 x 67 mm / 2.2 x 3.3 x 2.5 (Width x Height x Depth)
*DIN RAIL – Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 35 mm (1.38 in) length 152.40 mm (6 in) and thickness 5 mm (0.2 in)
Description
40 Amp 4 Pole Normally Open Contactor for home or industrial uses. It features a convenient power status indicator. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp loads. Includes DIN Rail made of resistant steel zinc (35 x 152.40 mm / 1.38 x 6 in) and two (2) 18-8 stainless steel #10 Phillips drive, truss head screws. Contactor has applications in lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. Includes an energy saving, silent and no humming coil. Technical Specifications: Contactor IEC 400V Contactor Type NO Inductive Load: 32A Resistive Load: 63A DC Load: 30A, @ 24VDC Power status indicator Number of Poles 4 Coil Volts: 110/120VAC, 50/60 Hz Coil Load: Inrush 52VA, Sealed 10VA IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW Electric e strength: 4 kV Operating Temperature: -30…+70 °C (-22…+158 °F) 1 HP @ 1 Phase - 120V 2 HP @ 1 Phase - 230V 5 HP @ 3 Phase - 208V 5 HP @ 3 Phase - 230V 10HP @ 3 Phase - 480V Weight: 0.88 lb (0.42 kg) Width: 2.1" (54 mm) Height: 3.3" (84 mm) Depth: 2.5" (64 mm) CE approved 61095, UL pending Base or DIN 35mm mount Wiring: Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm Compliance: CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508 DIN Rail Specifications Material: Steel ZincWidth: 35 millimeters (1 3/8 inches)Length: 152.40 millimeters (6 inches)Thickness: 5 millimeters (0.2 inches)Slots: 6Standards: EN/IEC and RoHS
