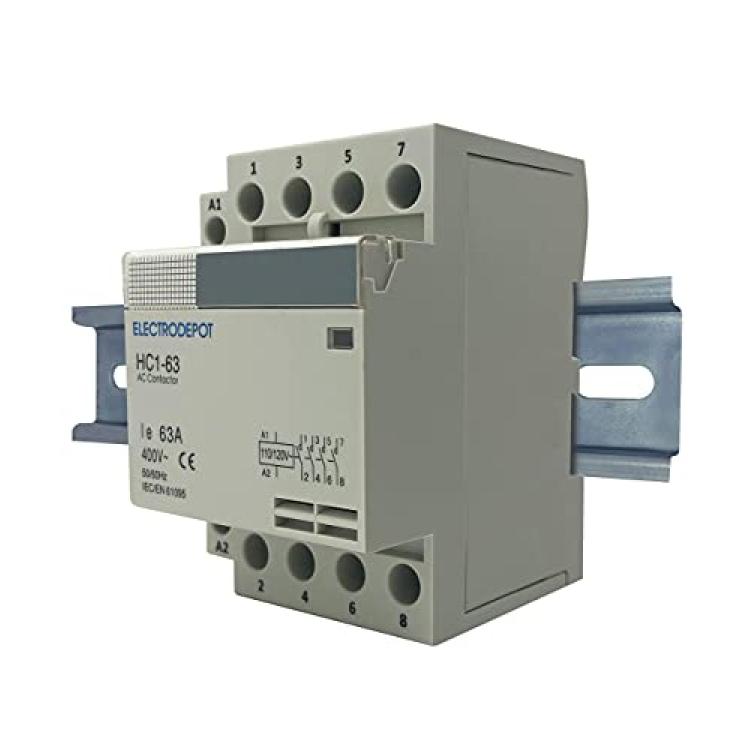

Electrodepot 60 Amp 4 Pole Normally Open Contactor, 110-120V Coil, Motor Load 40A, Lighting 63A Bundle with Slotted Steel Zinc Plated DIN Rail, 35 mm x 6 in – 1 Piece with 2#10 Screws
Availability: Pre-Order, Inquiry Price
About this product

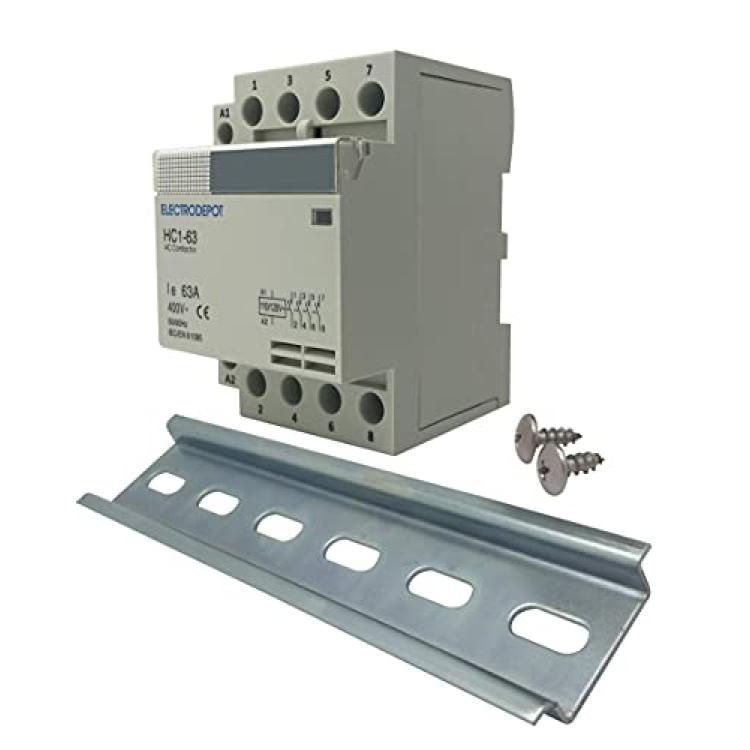

*BUNDLE CONTENT: 4 ITEMS – One (1) 60A Contactor, one (1) compatible Slotted Steel Zinc Plated DIN Rail and two (2) drive stainless steel truss head screws (#10, 1/2") for immediate installation
*APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil
*COIL VOLTAGE AND LOAD – Contactor IEC 400V. Coil Voltage 110/120VAC, 50/60 Hz; Coil load Inrush 52VA, Sealed 10VA. Inductive/Motor Load: 40Amp, Resistive/Incandescent Load: 63Amp. DC Load: 30Amp @ 24VDC. Compatible with 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp loads. Power Lug Terminal Capacity AWG # 4

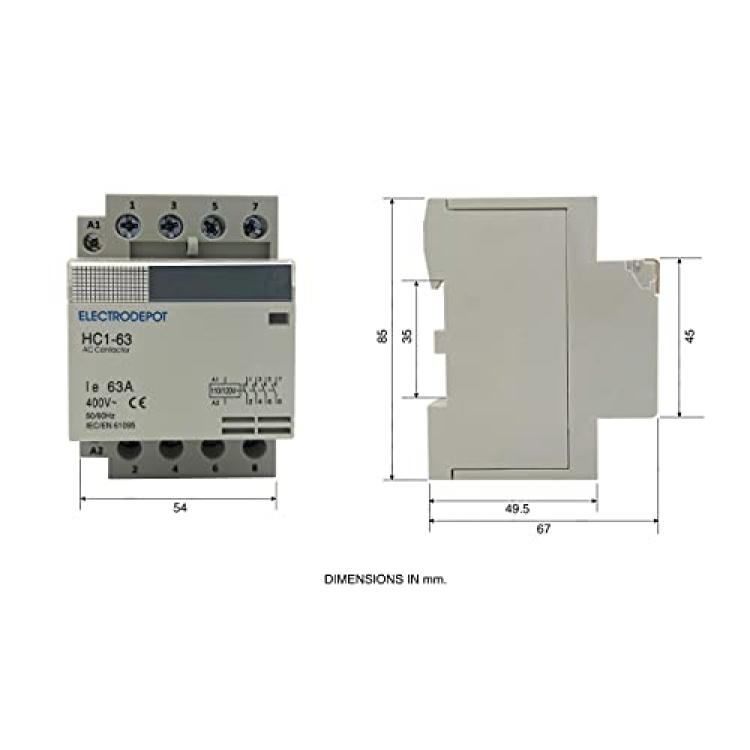

*OTHER CONTACTOR DETAILS – Contactor type NO with 4 poles, power status indicator. IEC AC Rate: AC-1; 10 kW, AC-3; 8 kW. Electric e strength: 4 kV. Operating Temperature -30…+70 °C (-22…+158 °F). Dimensions (approx.): 85 x 45 x 92 mm / 3.4 x 1.7 x 3.6 (Length x Width x Height)
*DIN RAIL – Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 34.9mm (1.375”) length 152.40mm (6”) and thickness 5mm (0.2”)
Description
ABOUT 60A CONTACTOR
ELECTRODEPOT - Contactor 934040 4 Pole Normally Open 40A/63A, 120VAC Coil
Application Lighting, Motor or Switching 24/120/220/277 V Energy saving, Silent, No humming coil
Technical Specifications
Contactor IEC 400V
Contactor Type NO
Full Load Amps-Inductive 40
Full Load Amps-Resistive 63
DC Load: 30A, @ 24VDC

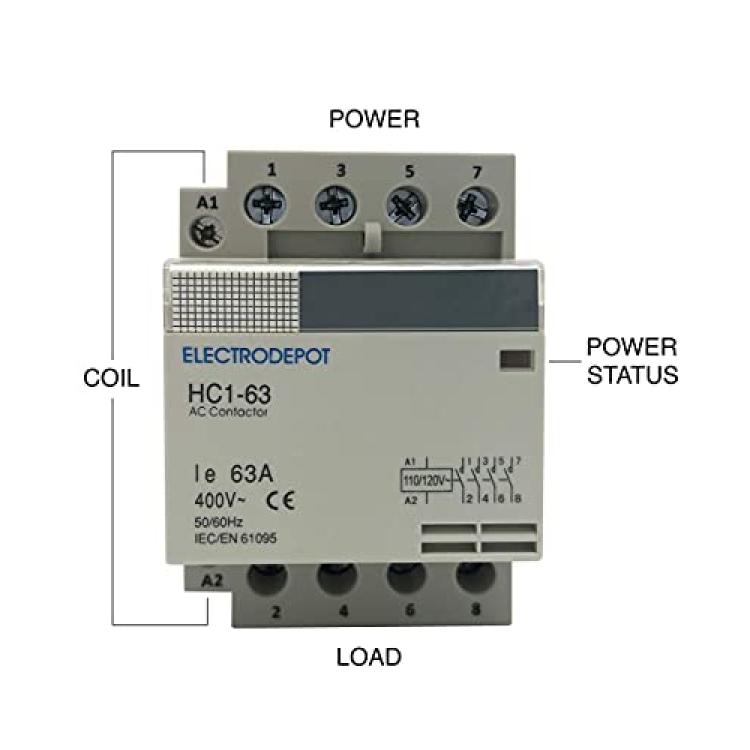

Power status indicator
Number of Poles 4
Coil Volts 110/120VAC, 50/60 Hz
Coil load; Inrush 52VA, Sealed 10VA
IEC AC Rate: AC-1; 10 kW, AC-3; 8 kW
Electric e strength: 4 kV
Operating Temperature -30…+70 °C (-22…+158 °F)
1 HP @ 1 Phase - 120V
2 HP @ 1 Phase - 230V
5 HP @ 3 Phase - 208V
5 HP @ 3 Phase - 230V
10HP @ 3 Phase - 480V
Weight: 0.88 lb (0.42 kg)
CE approved 61095, UL pending
Base or DIN 35mm mount
Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm
ABOUT DIN RAIL
DIN Rails are the standard mounting support for any electromechanical component, device or equipment
designed using the DIN specifications adopted by European (EN) and international (IEC) standards.
The rail features conveniently placed slots throughout its length making it easy to attach to a panel, wall
or equipment. Used for support of mini circuit breakers, contactors, auxiliary relays, terminal blocks, low
voltage apparatuses, etc.
Standard width 35mm (1.375”) length 152.40mm (6”) and thickness 5mm (0.2”).
ABOUT SCREWS
Drive stainless steel truss head screws (#10, 1/2"") for immediate installation.
