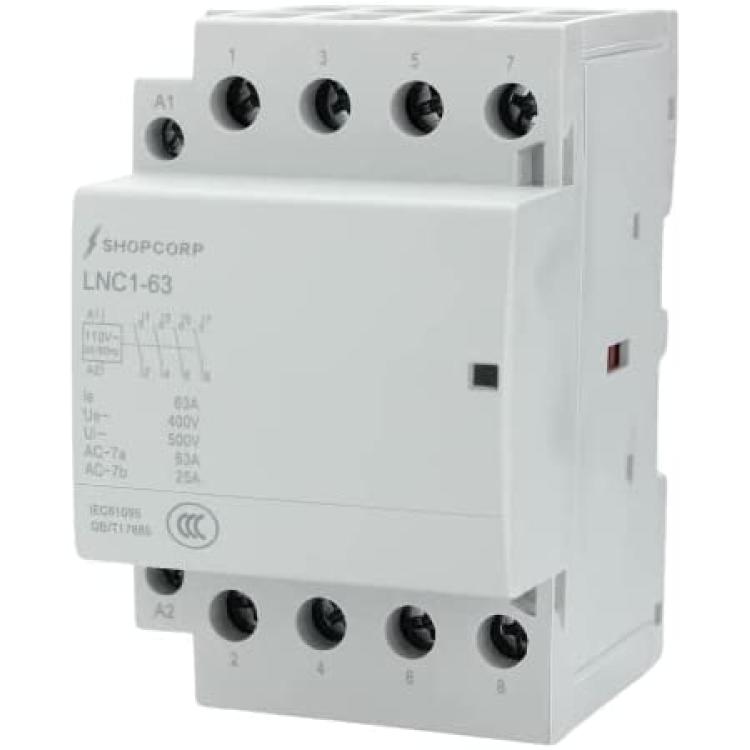

Shopcorp 50 Amp 4 Pole Normally Open IEC 400V Contactor (Silent Operation) – 110/120VAC Coil, Motor Load 40A and Lighting Load 63A with Mounting Base for DIN Rail
About this product

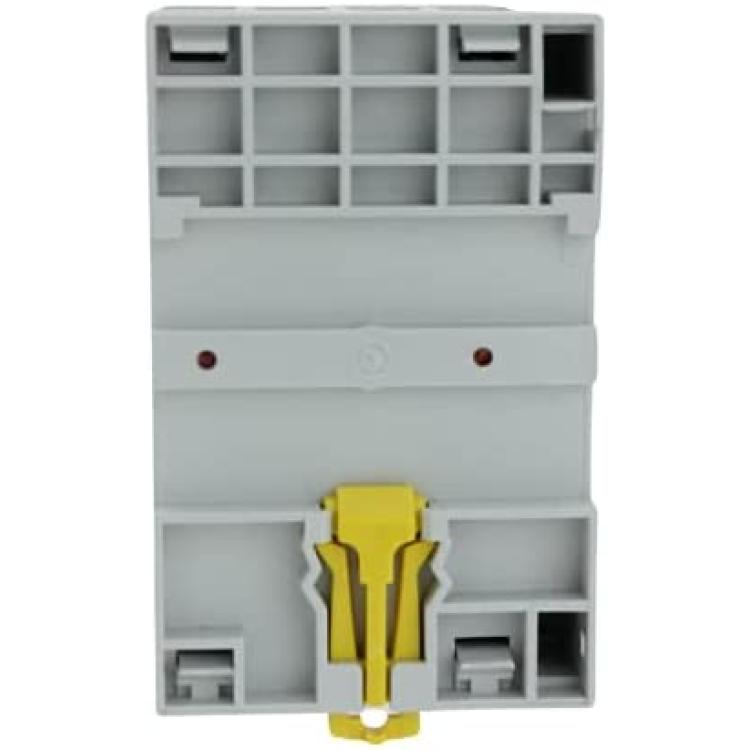

*INDUSTRIAL QUALITY COMPONENTS – 50Amp 4 Pole Normally Open (NO) General Purpose Contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation
*CONTACTOR APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil
*FULL AMP LOAD – Inductive/Motor Load: 40Amp. Resistive/Incandescent Load: 63Amp. DC Load: 30Amp @ 24VDC. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp loads. Power Lug Terminal Capacity AWG # 4
*COIL VOLTAGE AND LOAD – Contactor IEC 400V. Coil Voltage 110/120VAC, 50 Hz. Coil load Inrush 52VA, Sealed 10VA
*OTHER CONTACTOR DETAILS – IEC AC Rate: AC-1; 10 kW, AC-3; 8 kW. Electric e strength: 4 kV. Operating Temperature -40…+70 °C (-40…+158 °F). Dimensions (approx.): 54 x 85 x 66 mm / 2.1 x 3.3 x 2.6 (Width x Height x Depth)
Description
50 Amp 4 Pole Normally Open Contactor for home or industrial uses. With applications in lighting, motor and switching. Technical Specifications: – Contactor IEC 400V – Contactor Type NO – Inductive Load: 40A – Resistive Load: 63A – DC Load: 30A, @ 24VDC – Power status indicator – Number of Poles 4 – Coil Volts: 110/120VAC, 50 Hz – Coil Load: Inrush 52VA, Sealed 10VA – IEC AC Rate: AC-1, 10 kW. AC-3, 8 kW – Electric e strength: 4 kV – Operating Temperature: -40…+70 °C (-40…+158 °F) – 1 HP @ 1 Phase - 120V – 2 HP @ 1 Phase - 230V – 5 HP @ 3 Phase - 208V – 5 HP @ 3 Phase - 230V – 10HP @ 3 Phase - 480V – Weight: 0.88 lb (0.42 kg) – Width: 2.1" (54 mm) – Height: 3.3" (85 mm) – Depth: 2.6" (66 mm) – CE approved 61095, UL pending – Base or DIN 35mm mount Wiring: Solid Conductor: 25 mm2 Max torque 0.6 Nm Stranding Conductor: 16 mm2, Max torque 0.6 Nm Compliance: CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1
