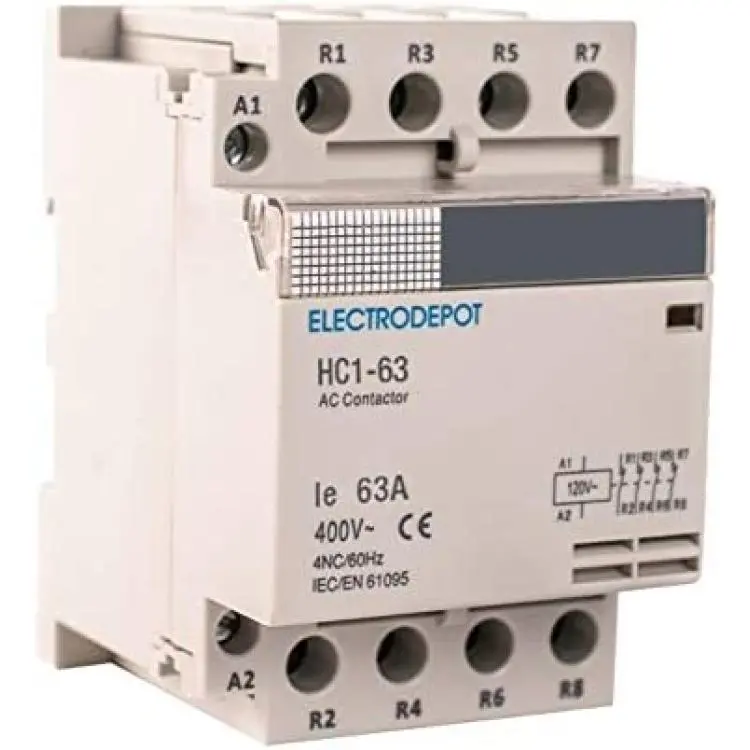

Electrodepot 60 Amp 4 Pole Normally Closed IEC 400V Contactor (Silent Operation) – 110-120VAC Coil, Inductive 30A, Resistive 60A with Mounting Base for DIN Rail
About this product
*INDUSTRIAL QUALITY COMPONENTS – 60Amp 4 Pole Normally Closed (NC) General Purpose Contactor for home and industrial uses, compatible with 35mm DIN rails, with power status indicator. Complies with IEC/EN standards for consistent and reliable installation
*APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans. 24/120/220/277 V, with an energy saving, silent and no humming coil
*FULL AMP LOAD – Inductive/Motor Load: 30Amp. Resistive/Incandescent Load: 60Amp. DC Load: 30Amp @ 24VDC. Compatible with 20 Amp, 30 Amp, 32 Amp, 40 Amp, 50 Amp, 60 Amp and 63 Amp Loads. Power Lug Terminal Capacity AWG # 4
*COIL VOLTAGE AND LOAD – Voltage: AC 110V/120V, 50/60Hz. Load: 52VA Inrush and 10VA Sealed
*DIMENSIONS (approx.) – 54 x 85 x 67 mm / 2.2 x 3.3 x 2.5 (Width x Height x Depth)
Description

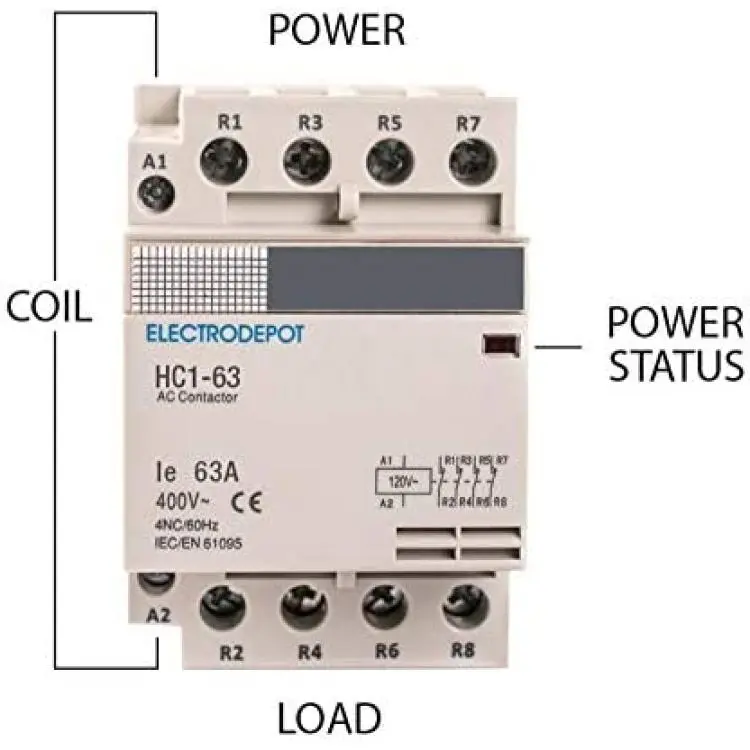

60 Amp 4 Pole Normally Closed IEC 400V Contactor for home or industrial uses. Perfectly compatible with DIN rail mounting. It features
a convenient power status indicator, and an energy saving, silent and no humming coil. With applications in lighting, motor and switching.
Technical Specifications:
– Contactor IEC 400V
– Contactor Type NC
– Full Load Amps-Inductive 30
– Full Load Amps-Resistive 60
– DC Load: 30A, @ 24VDC
– Power status indicator
– Number of Poles 4
– Coil Volts: 110/120VAC, 50/60 Hz
– Coil Load: Inrush 52VA, Sealed 10VA
– IEC AC Rate: AC-1, 16 kW. AC-3, 11 kW
– Electric e strength: 4 kV
– Operating Temperature: -30…+70 °C (-22…+158 °F)
– 1 HP @ 1 Phase - 120V
– 2 HP @ 1 Phase - 230V
– 5 HP @ 3 Phase - 208V
– 5 HP @ 3 Phase - 230V
– 10HP @ 3 Phase - 480V
– Weight: 0.88 lb (0.42 kg)
– CE approved 61095, UL pending

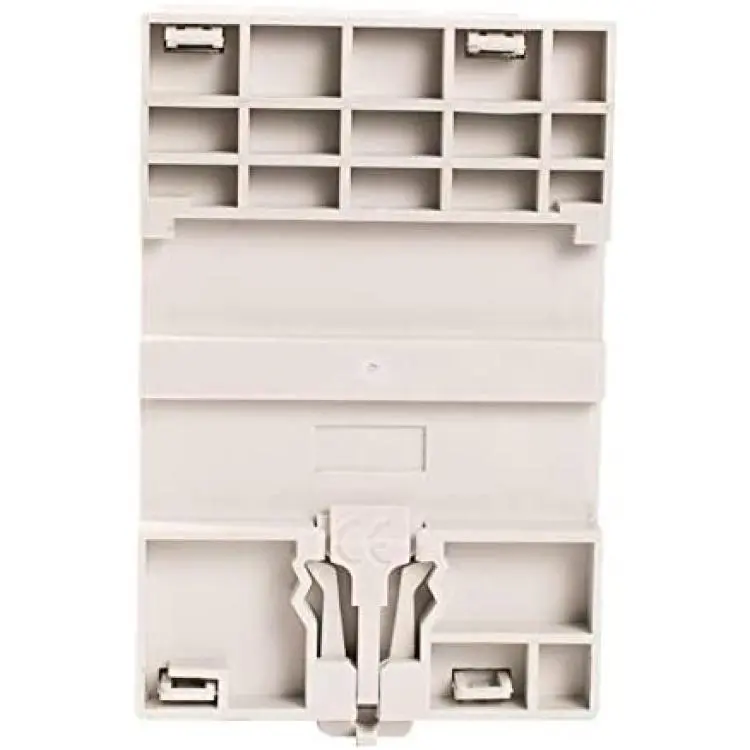

– Base or DIN 35mm mount
Wiring:
Solid Conductor: 25 mm2 Max torque 0.6 Nm
Stranding Conductor: 16 mm2, Max torque 0.6 Nm
Compliance:
CSA C22.2 No. 14, EN 60947-4-1, EN 60947-5-1, IEC 947-2, IEC 60947-4-1, IEC 60947-5-1, UL 508
