Shopcorp 30 Amp 6 Pole (3 Pole x 2) Normally Open and Auxiliary 1NO-1NC, 110-120VAC Coil, Motor Load 32A and Lighting Load 50A Contactors Bundle with DIN Rail, 35 x 150 mm and 2#10 Screws
About this product

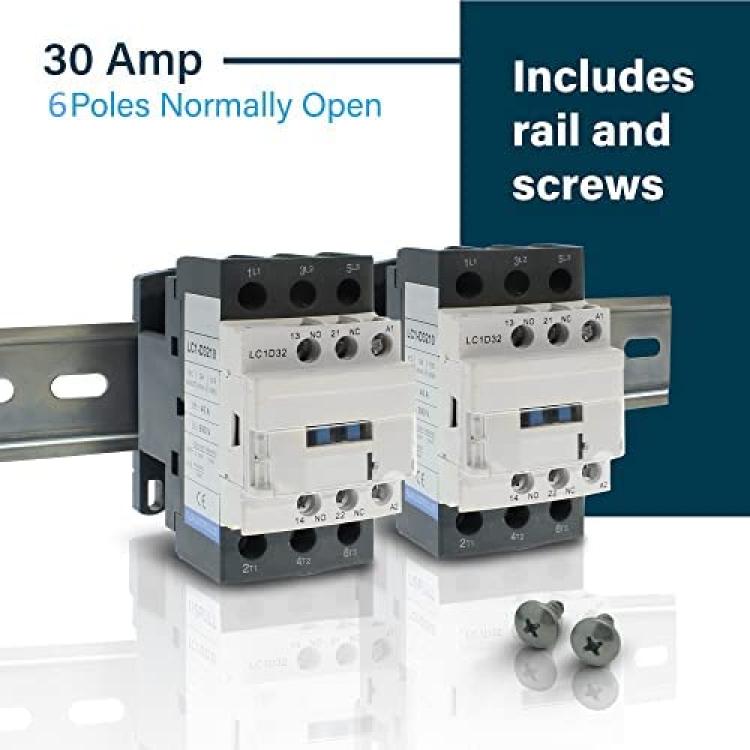

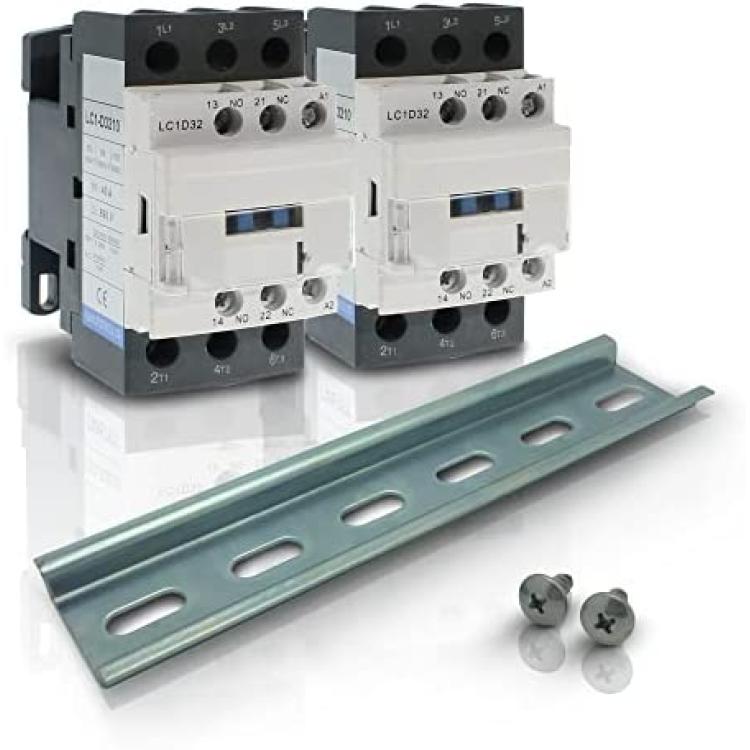

*BUNDLE CONTENT: 5 ITEMS – Two (2) 30A 3 Pole Normally Open (NO) Contactors with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts; one (1) compatible Slotted Steel Zinc Plated 35mm x 150mm DIN Rail and two (2) stainless steel truss head screws (#10, 1/2") for immediate home or industrial installation

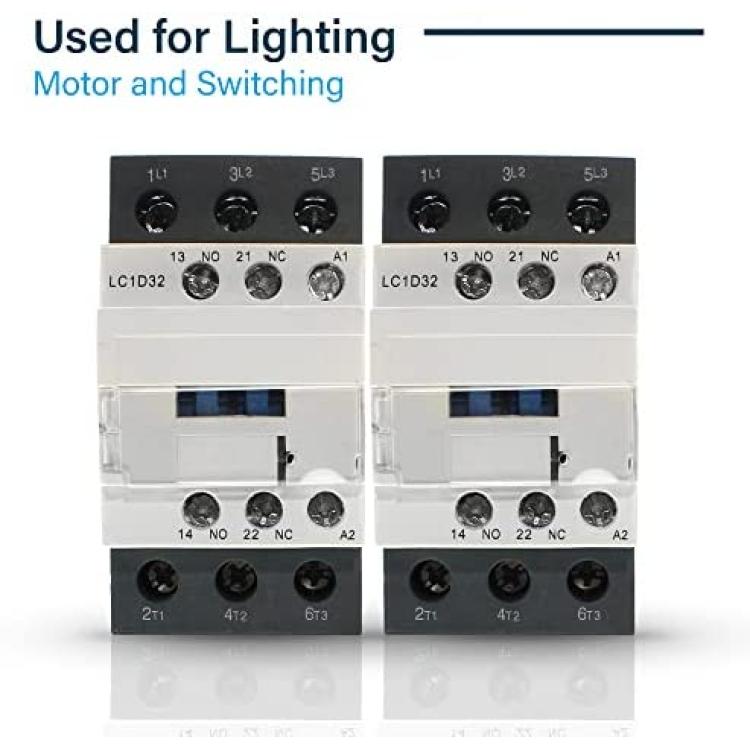

*CONTACTOR APPLICATIONS – Lighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans
*COIL VOLTAGE AND LOAD – Contactor IEC 660V. Coil Voltage 110/120VAC, 50/60 Hz; Coil load Inrush 70VA, Sealed 7.5VA. Inductive/Motor Load: 32Amp, Resistive/Incandescent Load: 50Amp. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp and 50 Amp loads. Power Lug Terminal Capacity AWG # 4
*OTHER CONTACTOR DETAILS – Contactor type NO with 3 poles and 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts. Dimensions (approx.): 89 x 56 x 89 mm / 3.5 x 2.2 x 3.5 (Length x Width x Height)
*DIN RAIL – Standard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 34.9mm (1.375”) length 150mm (6") and thickness 5mm (0.2”)
Description
BUNDLE CONTENT: 5 ITEMSTwo (2) 30A 3 Pole Normally Open (NO) Contactors with 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts; one (1) compatible Slotted Steel Zinc Plated 35mm x 150mm DIN Rail and two (2) stainless steel truss head screws (#10, 1/2") for immediate home or industrial installation CONTACTOR APPLICATIONSLighting, motor or switching. AC-1 for resistance furnaces, incandescent lamps or electric heaters; and AC-3 for air conditioners, compressors or fans COIL VOLTAGE AND LOADContactor IEC 660V. Coil Voltage 110/120VAC, 50/60 Hz; Coil load Inrush 70VA, Sealed 7.5VA. Inductive/Motor Load: 32Amp, Resistive/Incandescent Load: 50Amp. Compatible with 15 Amp, 20 Amp, 30 Amp, 32 Amp, 40 Amp and 50 Amp loads. Power Lug Terminal Capacity AWG # 4 OTHER CONTACTOR DETAILSContactor type NO with 3 poles and 1 Normally Open (NO) and 1 Normally Closed (NC) auxiliary contacts. Dimensions (approx.): 89 x 56 x 89 mm / 3.5'' x 2.2'' x 3.5'' (Length x Width x Height) DIN RAILStandard mounting support for any electromechanical component, including contactors, using the DIN specifications adopted by European (EN) and international (IEC) standards. Standard width 34.9mm (1.375”) length 150mm (6") and thickness 5mm (0.2”)
