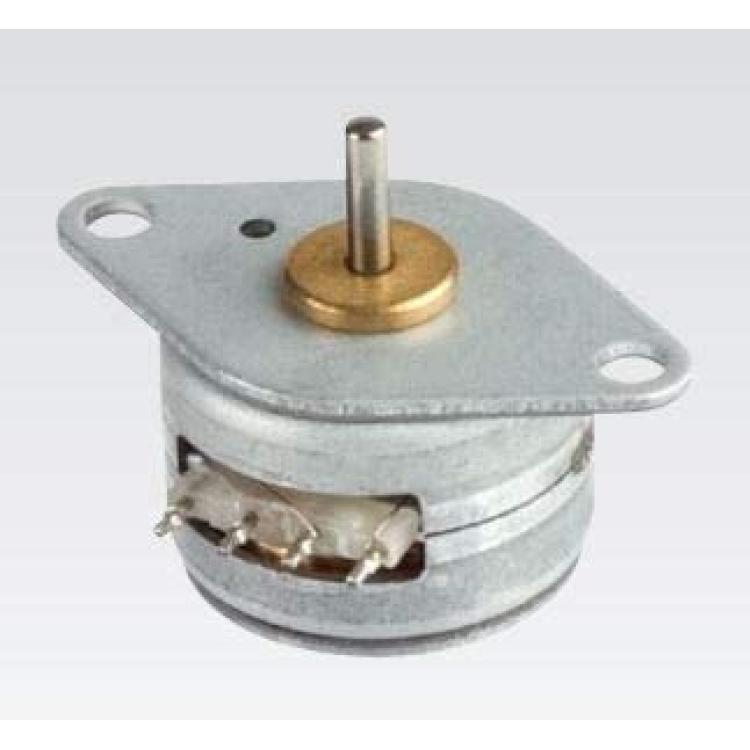

PM Stepper Motor Bipolar 24 VDC step angle 18° 2-2 Phase
About this product
*PM Stepper Motor Bipolar 5 VDC step angle 18° 2-2 Phase
*PM Stepper Motor Bipolar 5 VDC step angle 18° 2-2 Phase
Description
Performance Parameters:
Step angle: 18°
Excitation mode: 2-2 Phases
Drive method: Bipolar
Rated Voltage: 24 VDC
Coil resistance: 26 ?
Detent torque: 1 mN.m
Holding torque: ? 7.1 mN.m
Noise: ? 50 dbA
Working temperature: -10°C to 50°
