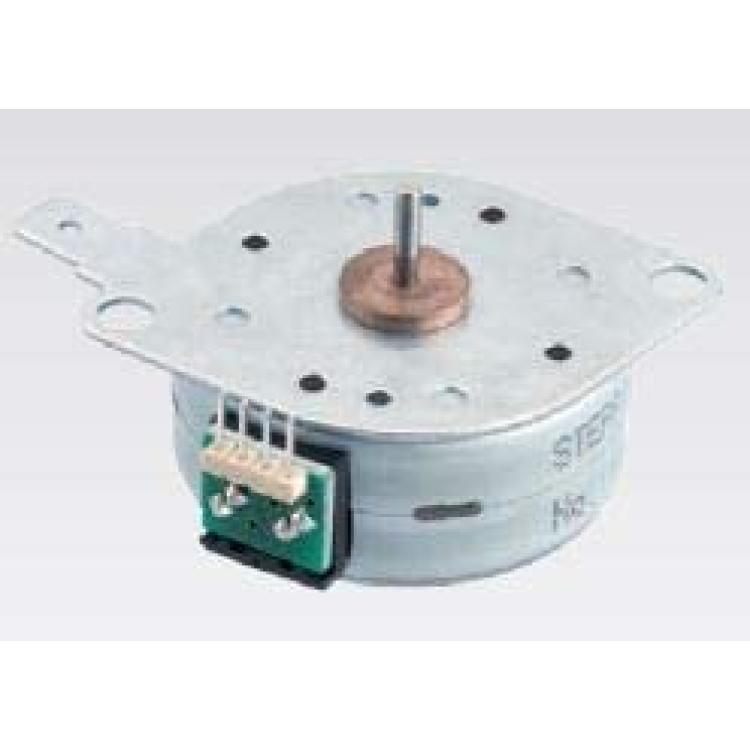

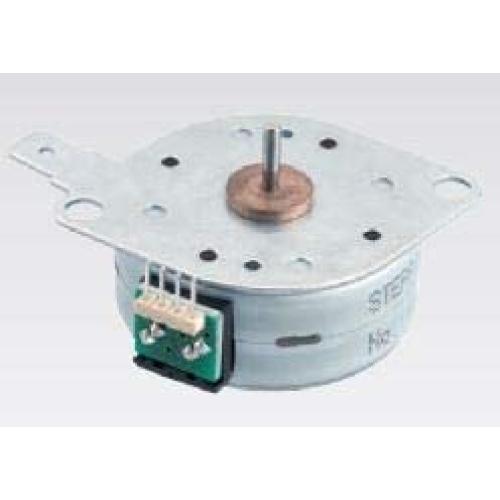

PM Stepper Motor Bipolar 12 VDC 9.5 Ω step angle 7.5° 2-2 phase
Description
Performance Parameters:
Rated voltaje: 12 VDC
Step angle:7.5°
Excitation Mode: 2-2 Phase
Drive method: Bipolar
Phase Resistance: 9.5 ?
Detent Torque: ? 2.744 mN.m
Holding Torque: ? 34.3 mN·m
Noise: ? 50 dba
Working Temperature: -10 ? 50 °C
