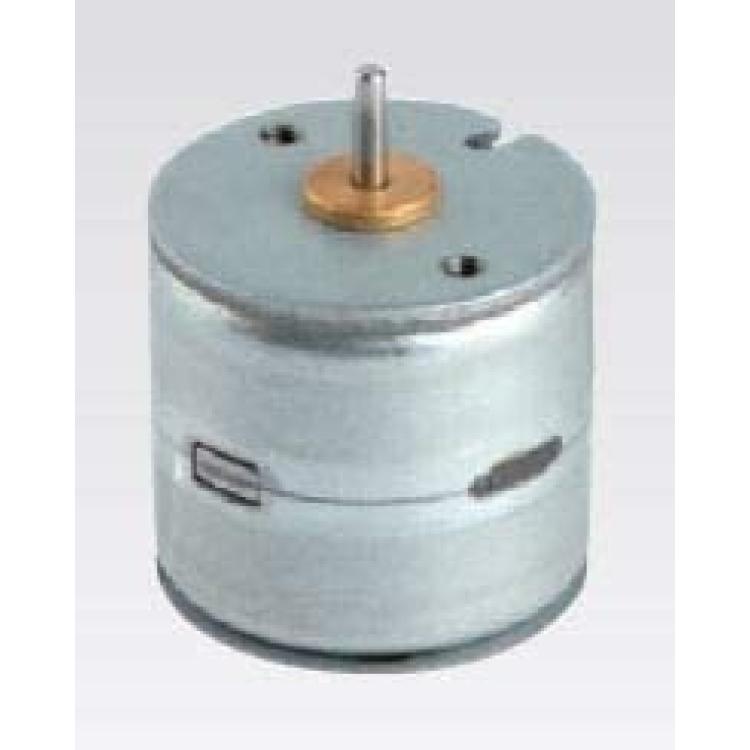

PM Stepper Motor Bipolar 24 VDC 13Ω step angle 18° 2-2 Phase
Description
Performance Parameters:
Rated voltaje: 24 VDC
Step angle: 18°
Excitation Mode: 2-2 Phase
Drive method: Bipolar
Phase Current: 350mA
Phase Resistance: 13 ?
Detent Torque: 1.22 mN·m
Holding Torque: ? 10.2 mN·m
Noise: ? 50
Working Temperature: -10 ? 50 °C
