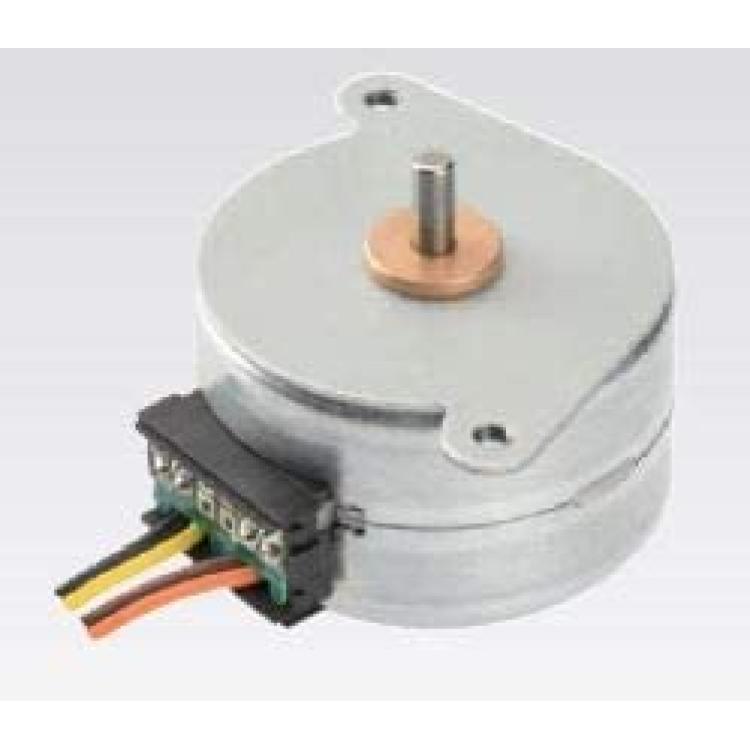

PM Stepper Motor Bipolar 24 VDC 5 Ω step angle 7.5° 2-2 phase
Description
Performance Parameters:
Rated voltaje: 24 VDC
Step angle: 7.5°
Excitation Mode: 2-2 Phase
Drive method: Bipolar
Current Phase: 0.6 mA Phase Resistance: 5 ?
Detent Torque: 11.76 mN·m
Holding Torque: ? 40.1 mN·m
Noise: ? 50 dba
Working Temperature: -10 ? 50 °C

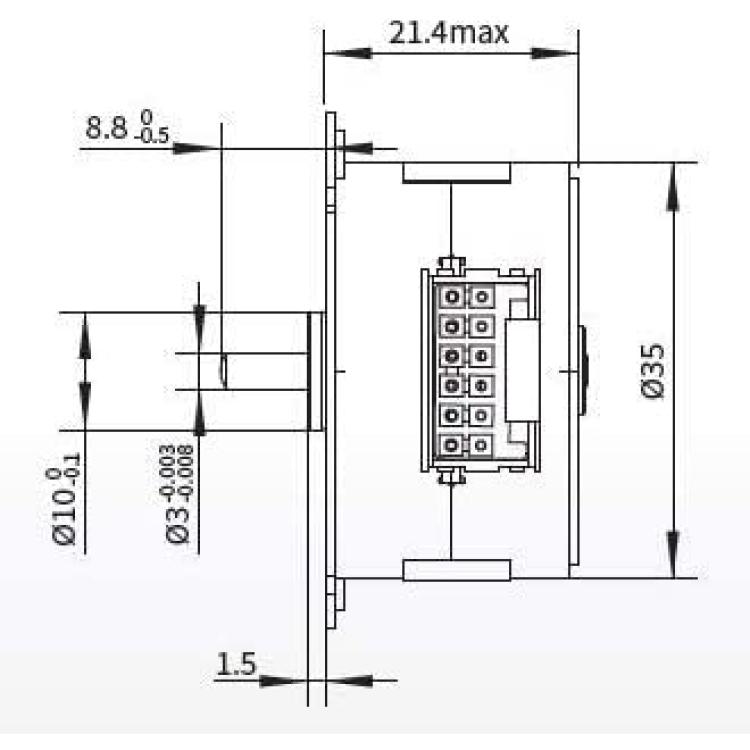

Motor thickness: 22mm
