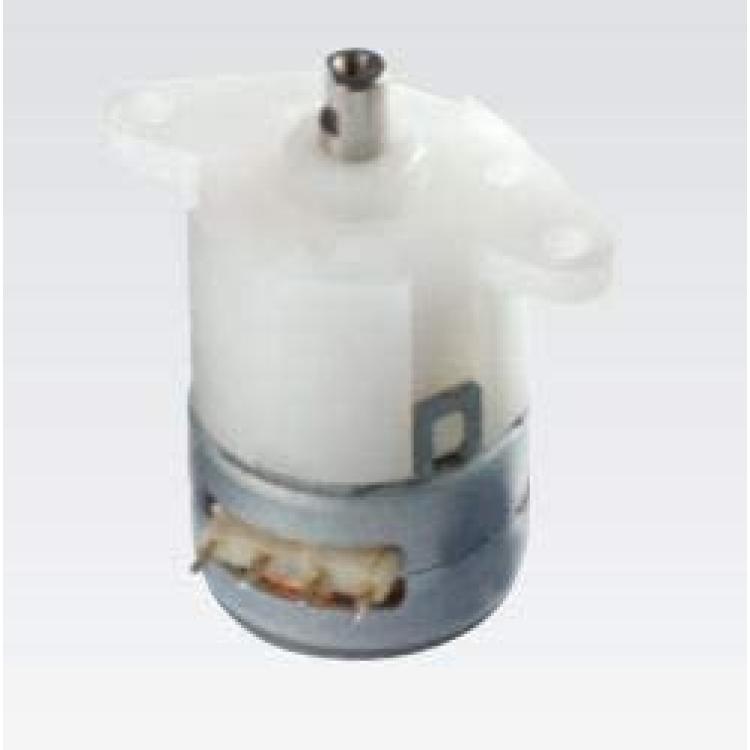

PM Stepper Motor Bipolar 5 VDC step angle 18/50° 2-2 phase
About this product
*Equipment
*Equipment
Description
Performance Parameters:
Step angle: 18/50 °
Excitation mode: 2-2
Phase Drive method: Bipolar
Rated Voltage: 5VDC
Coil resistance phase: 8 ?
Holding torque: ?7.1 mN·m
Noise: ? 50 dbA
Working temperature: -10 - 50 °C
