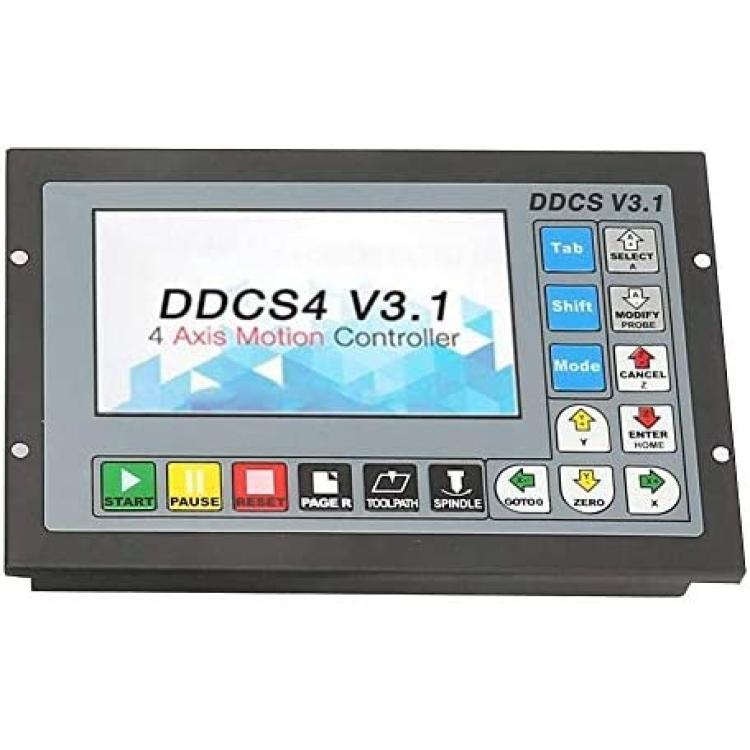

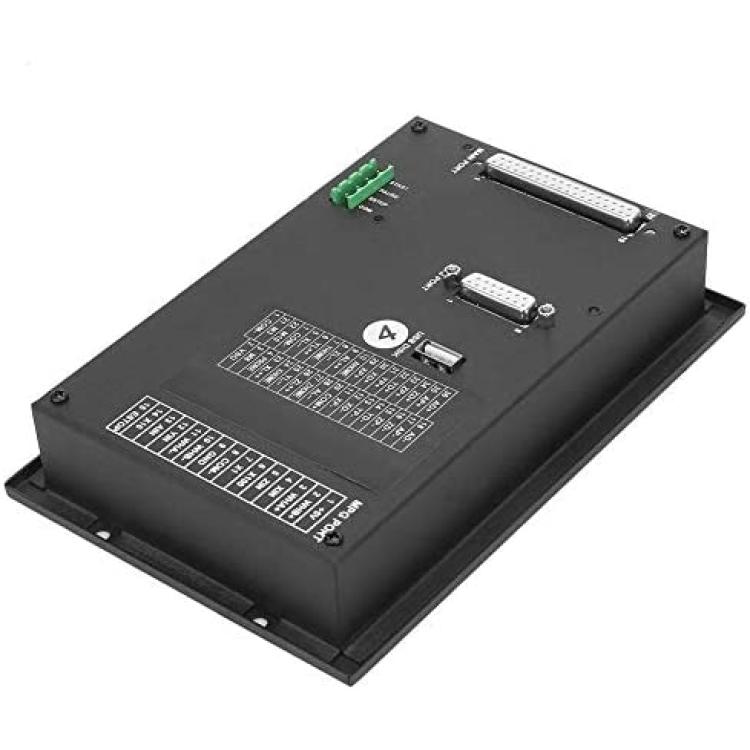

DDCSV3.1 Motion Controller 4 Axle Off-Line Controller Prcatical CNC Controller with Emergency Stop Function Handwheel Kit for CNC Router Engraving Milling Lathe Machine
About this product
*✔Upgrade Algorithm：Upgrade algorithm, support soft interpolation, fix the arc interpolation error of the old version. Analog spindle control 0-10V spindle control (can be modified to PWM output). 4-axis motor control differential pulse and direction output signal, each axis maximum 500Khz. ARM9 main control chip, FPGA core algorithm chip

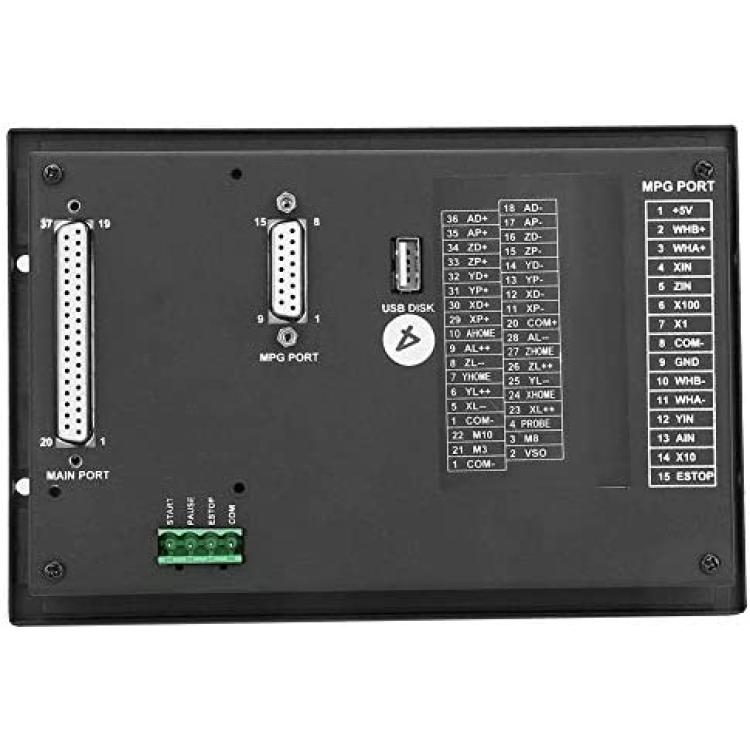

*✔Input & Output：The motion controller supports 16 optically isolated digital inputs and 3 optically isolated digital outputs, and supports the origin and limit sharing the same input port. 24VDC power input, the minimum current is 0.5A
*✔Data Automatically Saved：The 4-axis offline controller supports the operation of quickly specify the running position and Power Cut recovery. Data is automatically saved.The controller only support NPN type limited switch
*✔USB Flash Drive：The USB flash drive supports G-code file input and is not limited by the size of the G-code file. 1GB memory and support standard MPG. Drive output type, strong anti-interference ability, long-distance transmission
*✔Scope of Applications：The 4-axis offline controller is applied in CNC machine tools, printing machinery and other 0 correction and signal segmentation.Motion controller has strong anti-interference ability and supports long-distance transmission
Description
Features:
16 opto isolated digital inputs,3 opto isolated digital outputs. Upgrade algorithm,support soft interpolation,fixed arc interpolation bug of the old version. Analog spindle control 0-10V spindle control (can be modified as PWM output). 4 axle motor control differential Pulse and direction output signal,maximum.500Khz per axle. ARM9 main control chip,FPGA core algorithm chip. 5 inches TFT screen, resolution ratio: 480x272,17 operation keys. 24VDC power input, minimum current is 0.5A. USB flash disk support for G code file input,no size limited of the G-code file. 1GB internal memory and support standard MPG. Jog function for each axle (continuous, step, defined distance). Support the operation of quickly specify the running position and ''Power Cut'' recovery. Data is automatically saved. Support the origin and Limit share the same Input ports.The controller only support NPN type limited switch. Drive output type, strong anti-interference ability, long-distance transmission. Applications: CNC machine tools, printing machinery and other 0 correction and signal segmentation. Â
Specification:

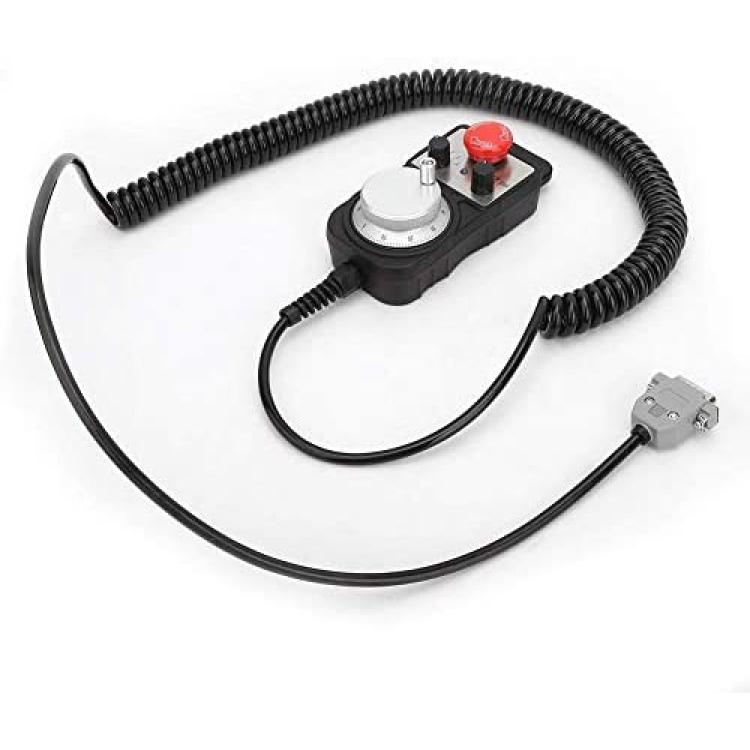

Handwheel Working Voltage:5V
Handwheel Three Output:Voltage, Single-Ended, Differential
Handwheel Pulse Output:100PPR

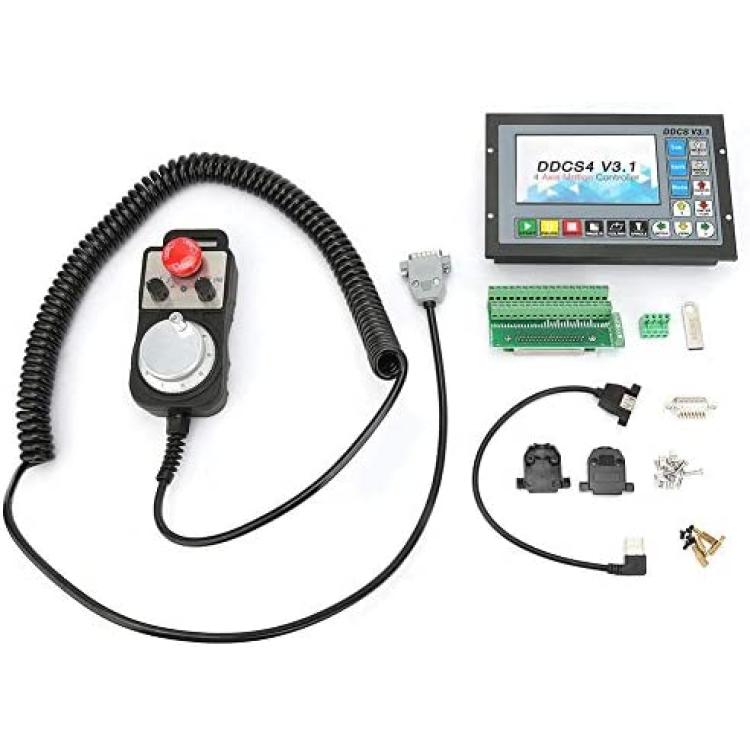

Package List:
1 x Controller
1 x Flash Disk
1 x Terminal
1 x Connection Cord
1 x Installation Screw
1 x Handwheel
1 x Handwheel Hook
