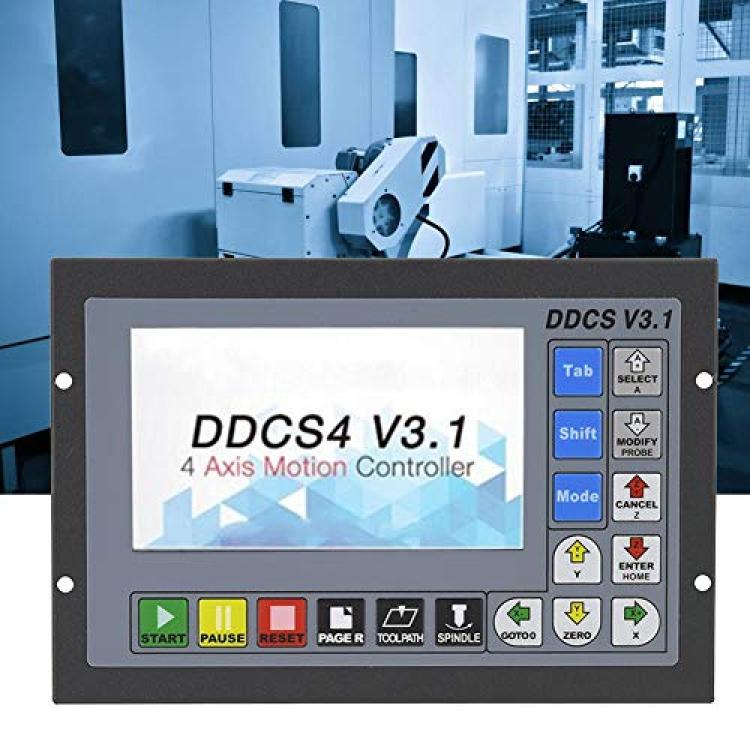

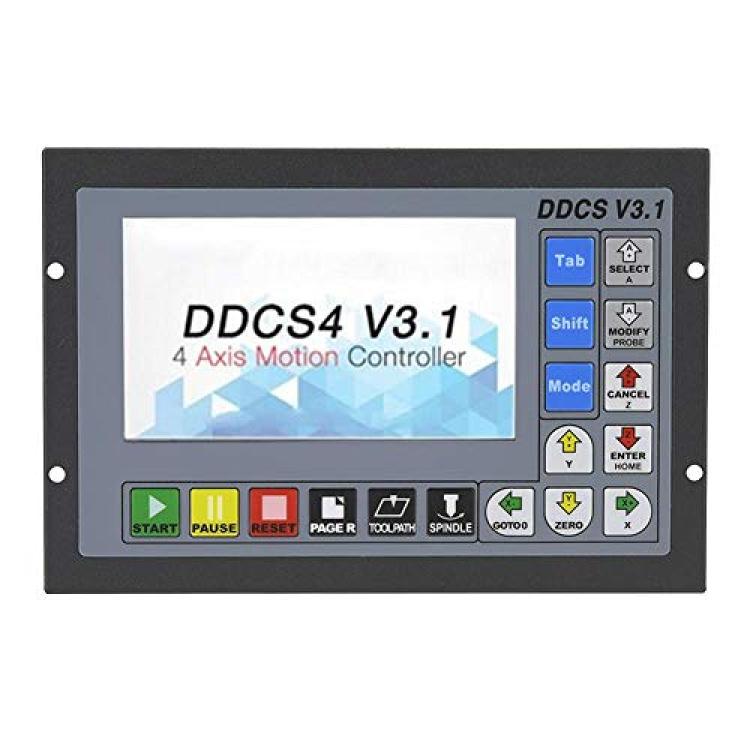

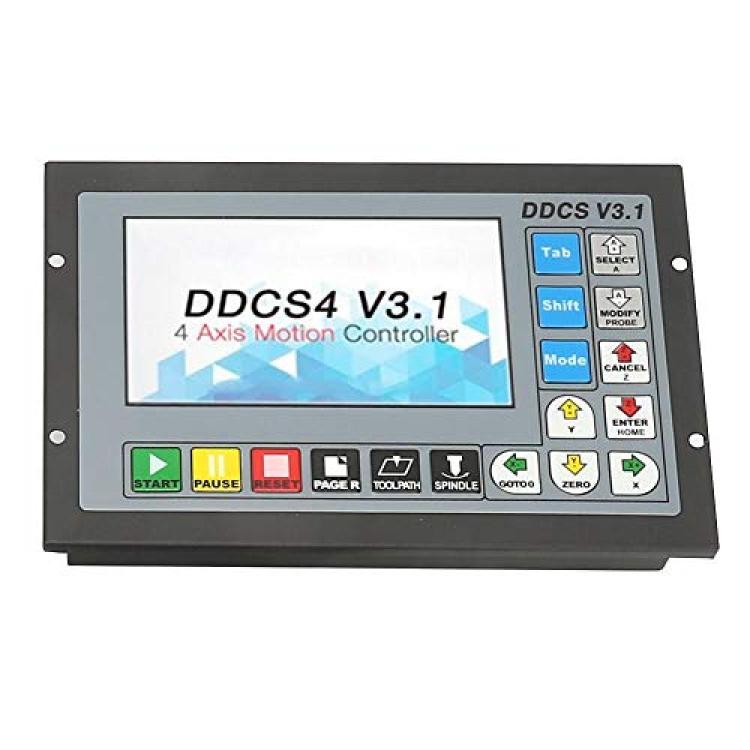

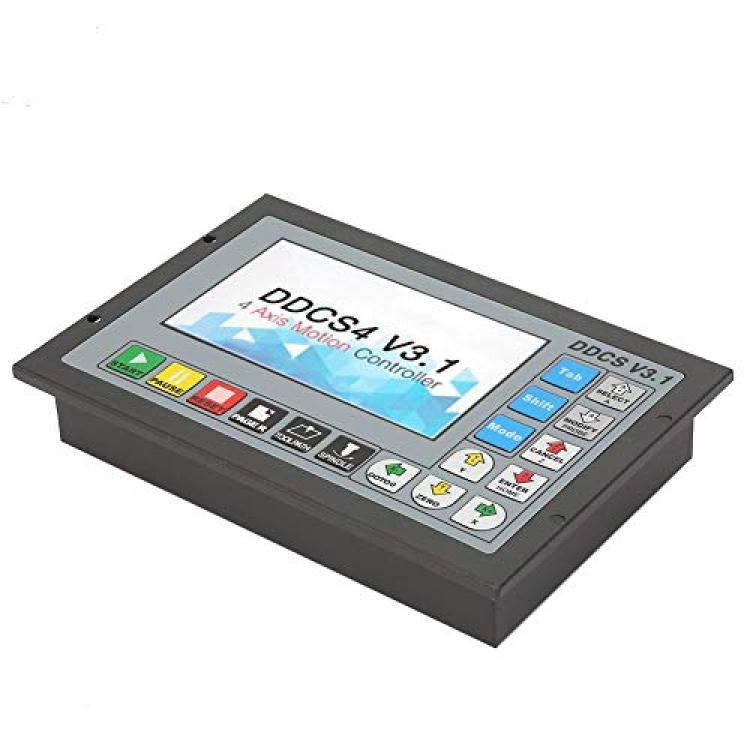

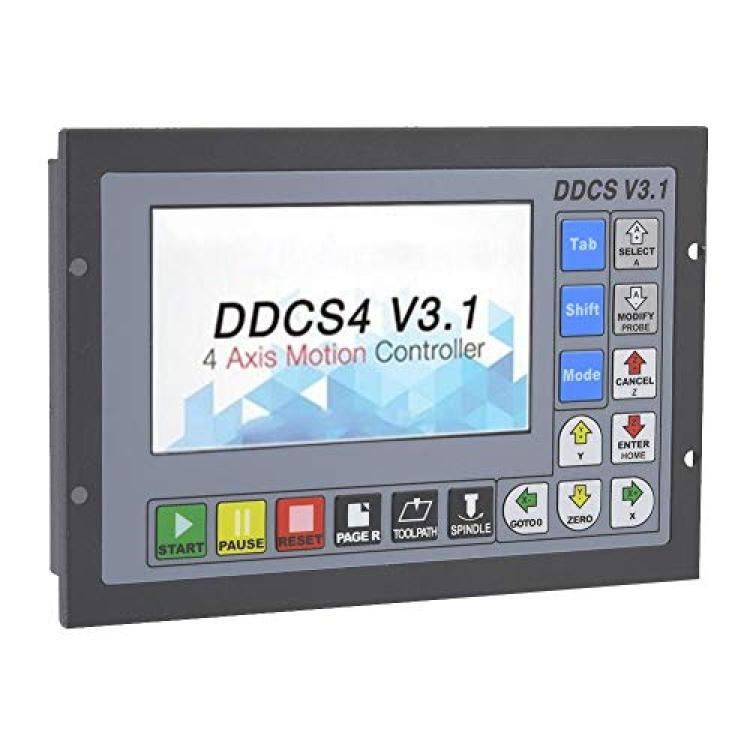

4 Axle Linkage Offline Motion Controller System with Emergency Stop Function Offline Stand Alone CNC Motion Controller System Handwheel Kit for CNC Engraving Machine DDCSV3.1
Availability: Pre-Order, Inquiry Price
About this product
*【INPUT AND OUTPUT】The 4-axis offline controller supports 16 optically isolated digital inputs and 3 optically isolated digital outputs.It supports the origin and Limit share the same Input ports
*【DATA AUTOMATICALLY SAVED】The 4-axis offline controller supports the operation of quickly specify the running position and Power Cut recovery. Data is automatically saved.The controller only support NPN type limited switch
*【SOFT INTERPOLATION】The 4-axis offline controller supports soft interpolation, and fixes the arc interpolation errors of the old version.It can analog spindle control 0-10V spindle control (can be modified as PWM output)
*【WIDELY USED】The 4-axis offline controller is applied in CNC machine tools, printing machinery and other 0 correction and signal segmentation.It has strong anti-interference ability and supports long-distance transmission
*【INTERNAL MEMORY】The 4 axle motor control differential Pulse and direction output signal,maximum.500Khz per axle.The USB flash disk support for G code file input,no size limited of the G-code file.1GB internal memory and support standard MPG
Description
Features:
16 opto isolated digital inputs,3 opto isolated digital outputs.Upgrade algorithm,support soft interpolation,fixed arc interpolation bug of the old version.Analog spindle control 0-10V spindle control (can be modified as PWM output).4 axle motor control differential Pulse and direction output signal,maximum.500Khz per axle.ARM9 main control chip,FPGA core algorithm chip.5 inches TFT screen, resolution ratio: 480x272,17 operation keys.24VDC power input, minimum current is 0.5A. USB flash disk support for G code file input,no size limited of the G-code file.1GB internal memory and support standard MPG.Jog function for each axle (continuous, step, defined distance).Support the operation of quickly specify the running position and ''Power Cut'' recovery. Data is automatically saved.Support the origin and Limit share the same Input ports.The controller only support NPN type limited switch.Drive output type, strong anti-interference ability, long-distance transmission.Applications: CNC machine tools, printing machinery and other 0 correction and signal segmentation. Specification:

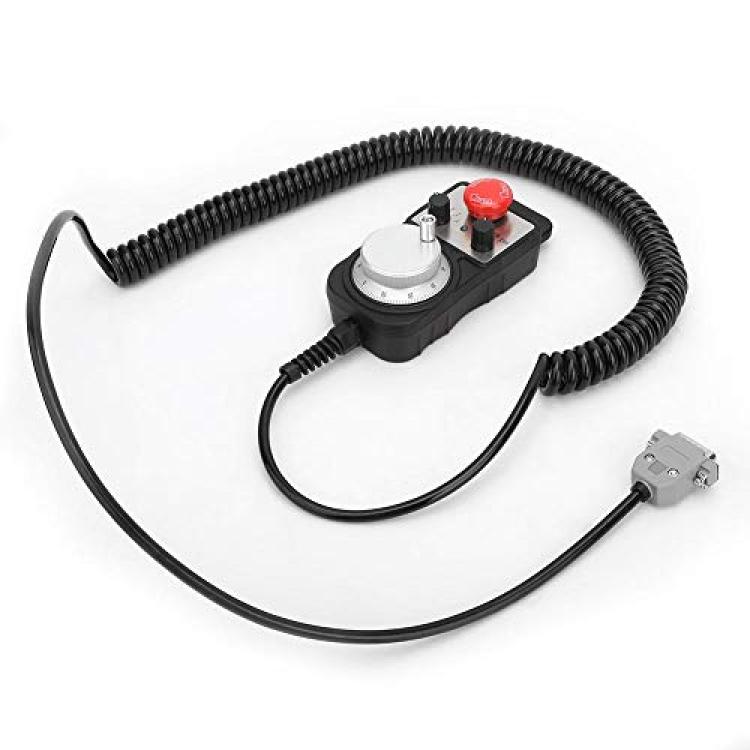

Handwheel Working Voltage:5V
Handwheel Three Output:Voltage, Single-Ended, Differential
Handwheel Pulse Output:100PPR

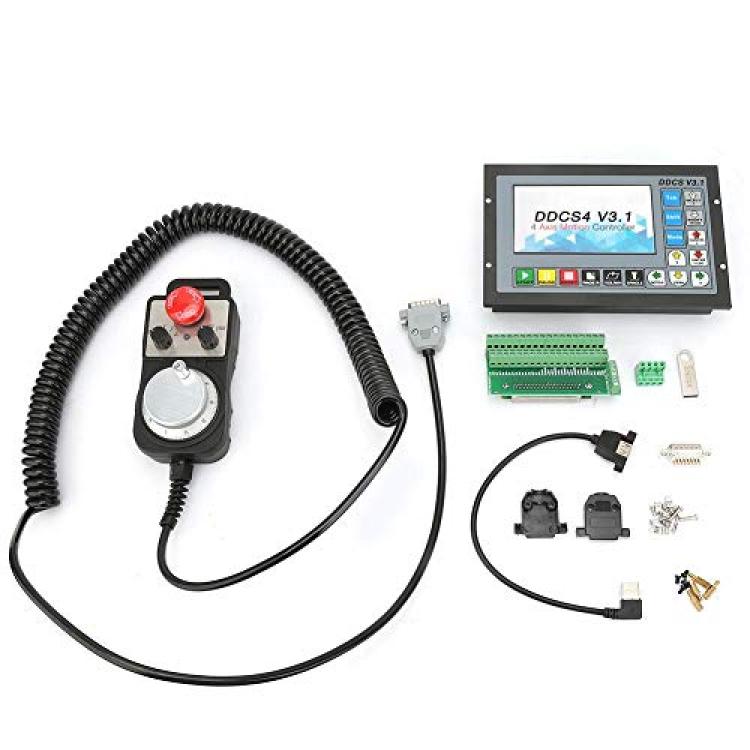

Package List:
1 x Controller
1 x Flash Disk
1 x Terminal
1 x Connection Cord
1 x Installation Screw
1 x Handwheel
1 x Handwheel Hook
