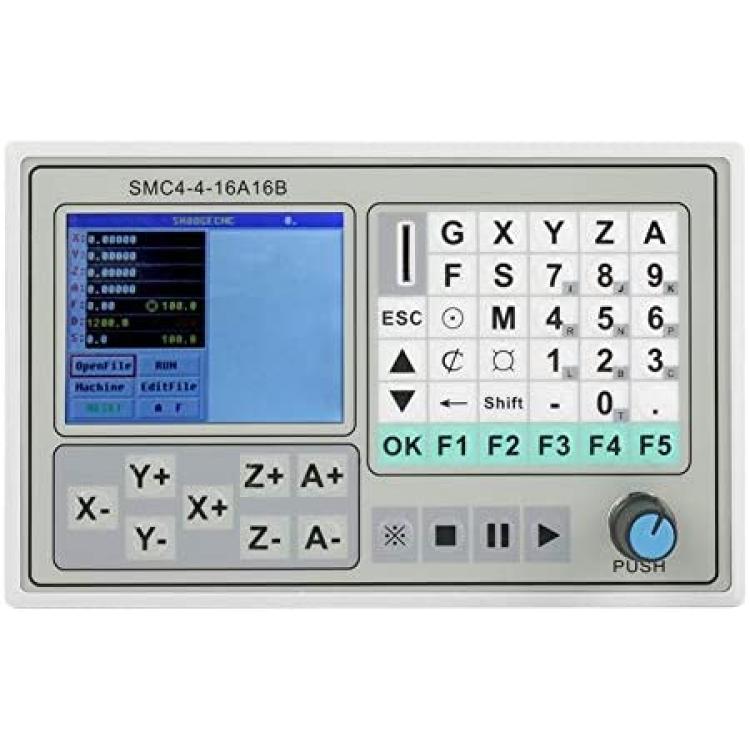

4 Axis CNC Controller, SMC4-4-16A16B CNC Motion Controller for Carving Machine Control System, High-Performance Router Control Engraving Milling Machine Stand Alone Motion Controller
About this product
*【PARAMETER SETTING】: 4 Axis CNC motion controller can set, process and operation various control parameters, to reach the optimal effect. The smallest unit of data: 0.0001mm, The maximum data size: ± 99999.999mm, Maximum pulse output frequency: 50KHz (-axis simultaneous 50KHZ).
*【MANUAL OPERATION】: Manually define a variety of external functions to facilitate the use, can be achieved manually, jog, back to the program zero, back to mechanical zero, cleared coordinate operations.
*【FREEDOM TO SELECT THE INPUT FUNCTION】: The limited input port can achieve a variety of user needs, can create program, delete, modify, read, save, save, automatic processing, continuous, and pause.
*【CNC SYSTEM KIT CONTAINS】: 1.High-performance, high-speed 32-bit ARM CPU; 2.Liquid crystal display (resolution: 320 x 240) ,display size:60*45; 3.Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank flow 500MA); 4.Users machining program memory can be implemented in any storage memory card; 5.Support Folder read, each folder maximum support 50 tool path files.
Description
Features:
Parameter setting: can set, process and operation various control parameters, to reach the optimal effect.
Manual operation: can be achieved manually, jog, back to the program zero, back to mechanical zero, cleared coordinate operations.Â
Program management: can create program , delete, modify, read, save, save, automatic processing, continuous, and pause.Â
External Manual: Manually define a variety of external functions to facilitate the use
Freedom to select the input function: the limited input port can achieve a variety of user needsÂ
CNC system consists of the following components:
1.High-performance, high-speed 32-bit ARM CPU
2.Liquid crystal display (resolution: 320 x 240) ,display size:60*45
3.Input / Output (10MA 16 opto-isolated inputs and 16 opto-isolated output pull-down tank 500MA)
4.Users machining program memory can be implemented in any storage TF cardÂ
5.Support Folder read, each folder maximum support 50 tool path files
Specifications:
The smallest unit of data: 0.0001mm
The maximum data size: ± 99999.999mm
Maximum pulse output frequency: 50KHz (-axis simultaneous 50KHZ)
Control axes: 4 axis (X, Y, Z, A)
Linkage axle count: 4 axis linkage and four - axis multi - micro multi - line prospective interpolation control
Weight: 611g

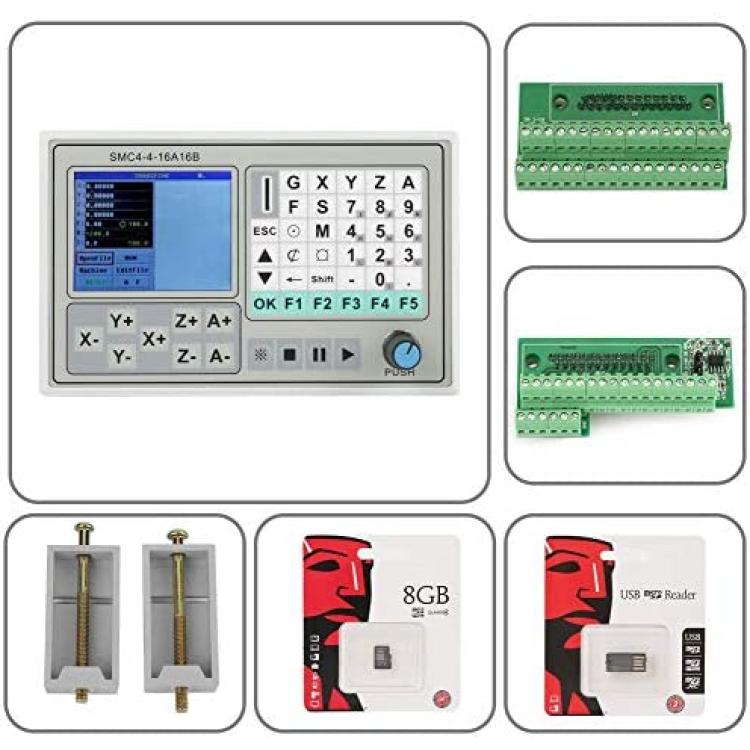

Package includes:

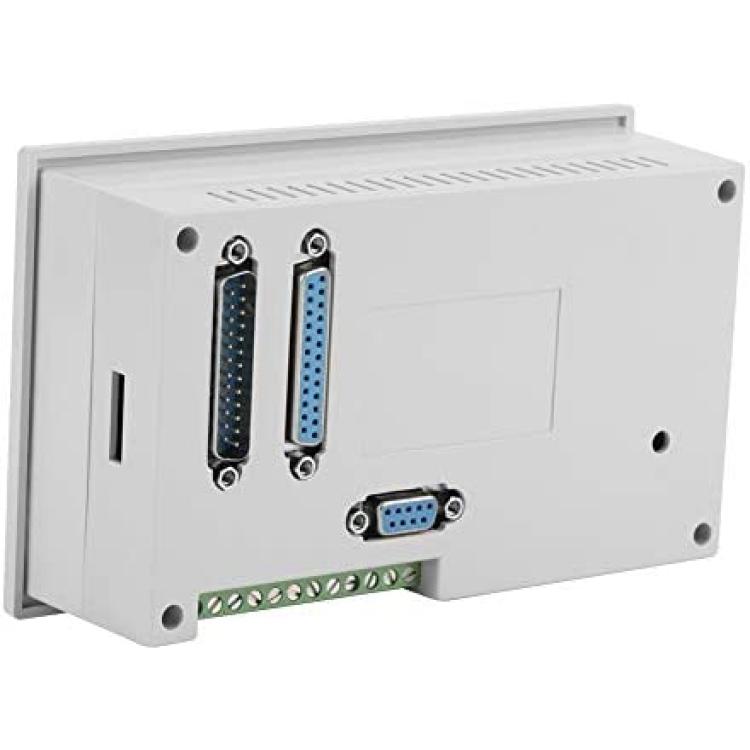

1 x CNC Motion Controller
2 x CardÂ
2 x Connection board

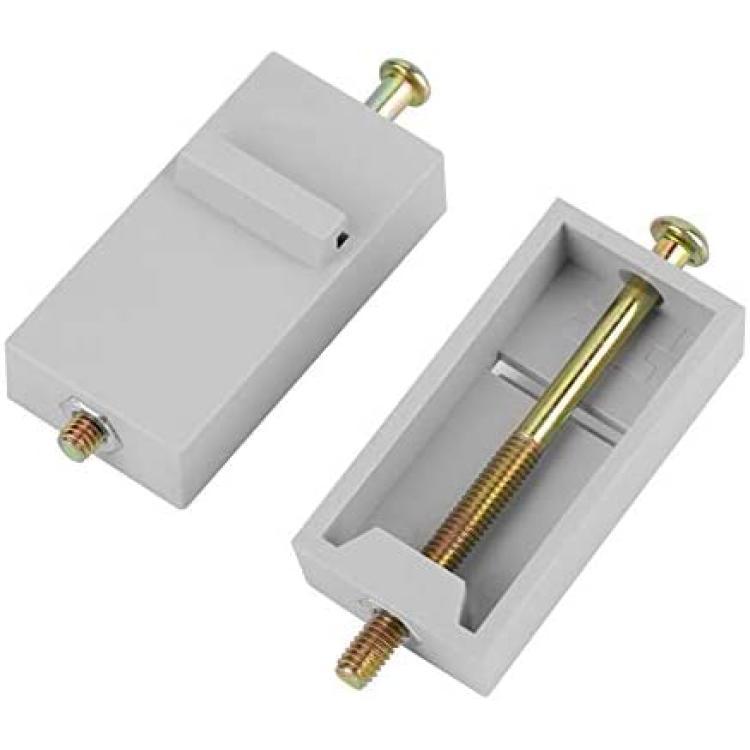

2 x fixed seat
