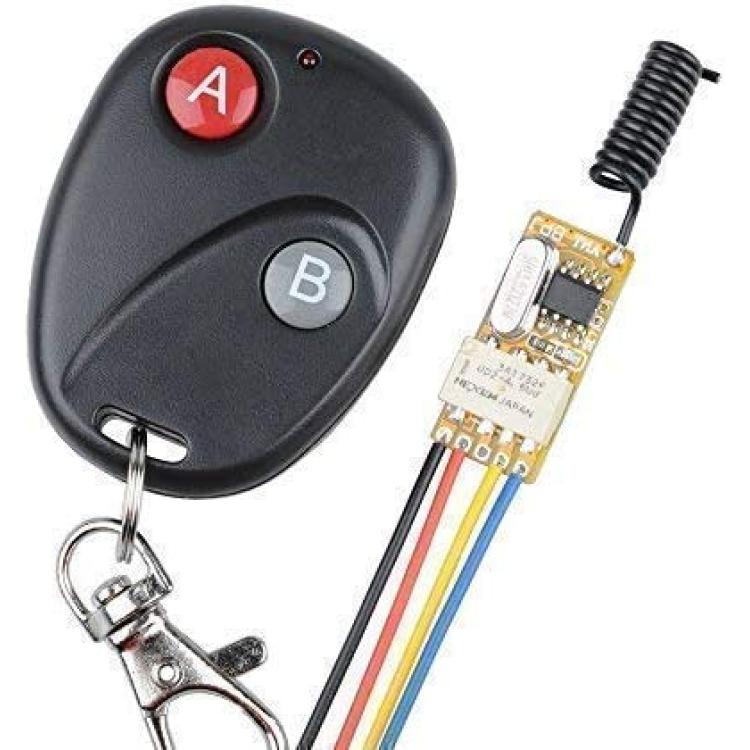

Mini Relay Wireless Switch 12V 433Mhz Remote Control Relay Switch, Secure 1-Channel Micro Receiver with Transmitter System in Latched Mode DC 3.7V 5V 6V 7V 9V 12V

This is a simple, safe and convenient, widely used, compact and flexible remote control switch.
*Working Voltage: DC3.5V-DC12V

*Wide Range Working Voltage DC3.7V 4.5V 5V 6V 9V 12V

*it can work with DC Power / Rechargeable lithium battery / Rechargeable

*Max Load: 1A (have better Load less than 700ma)

*Quiescent Current: 5ma

*Relay Working Current: 20-30ma

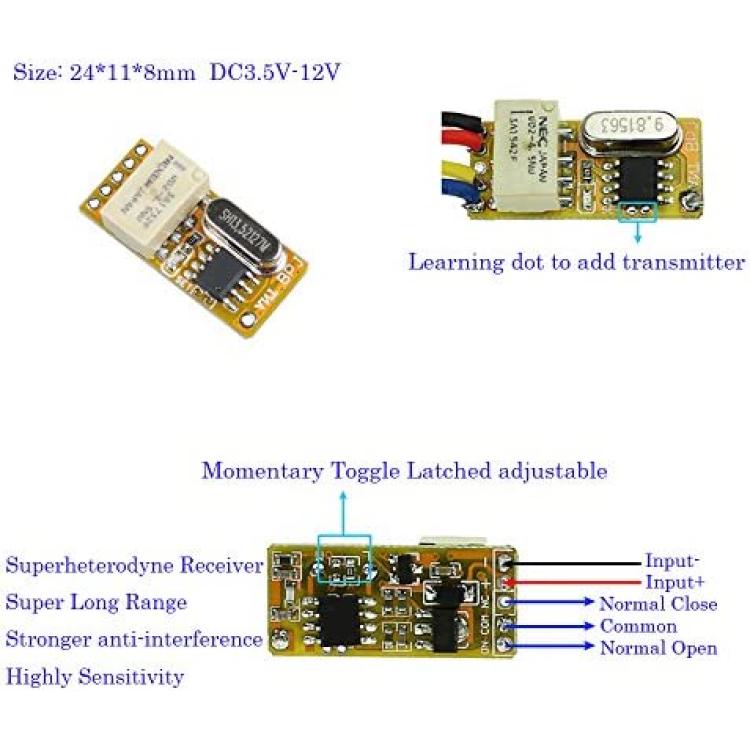

*Size: 25*11*8mm

.Working Mode: Momentary. Toggle .Latched adjustable(Notice: we send latched mode default . If you want to change the working mode, please use solder tool to operate)

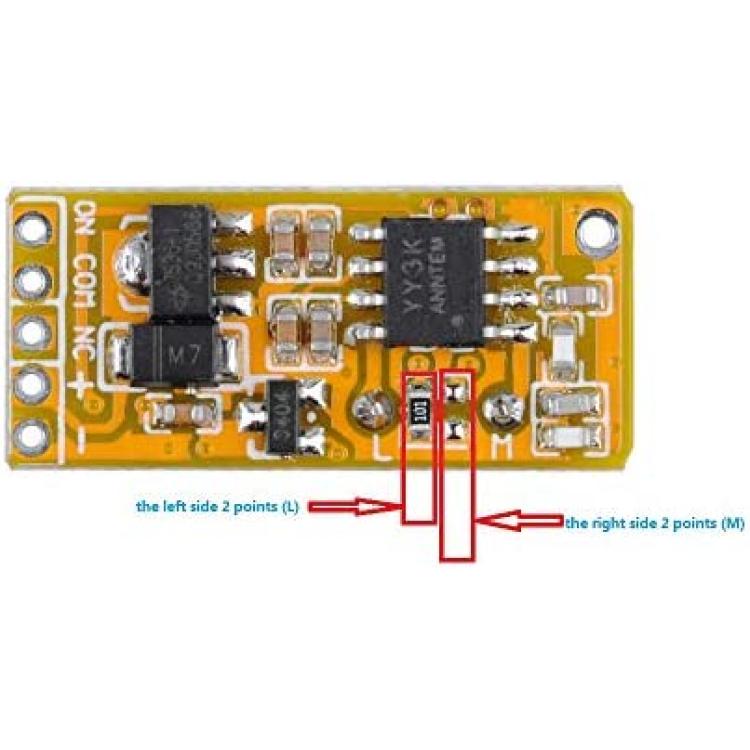

How to change working mode :
?Momentary : Connect the right side 2 points (M)with a soldering iron
?Toggle : Let Point (L) and Point (M) in non-occupation

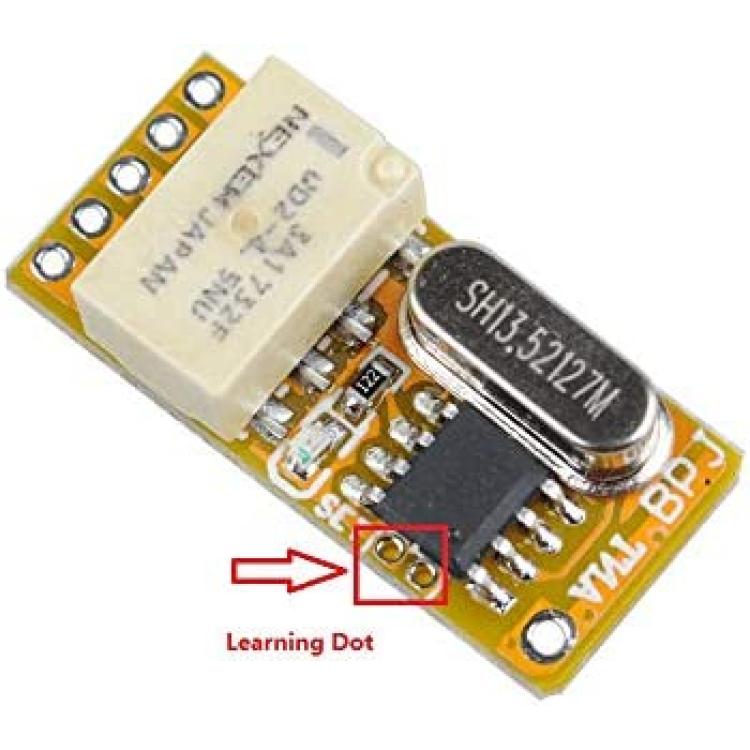

.Encoding Type: Learning point to add extra Transmitter
Learning method?Input 3.5V - 12V for the Receiver ,Connect the learning point with tweezers, the receiver LED indicator lights up or flashes, Press remote button A 1 time, Led indicator flash for 3 times , Then Press remote button B 1 time , Led indicator flash for 3 times again , it mean learning successfully

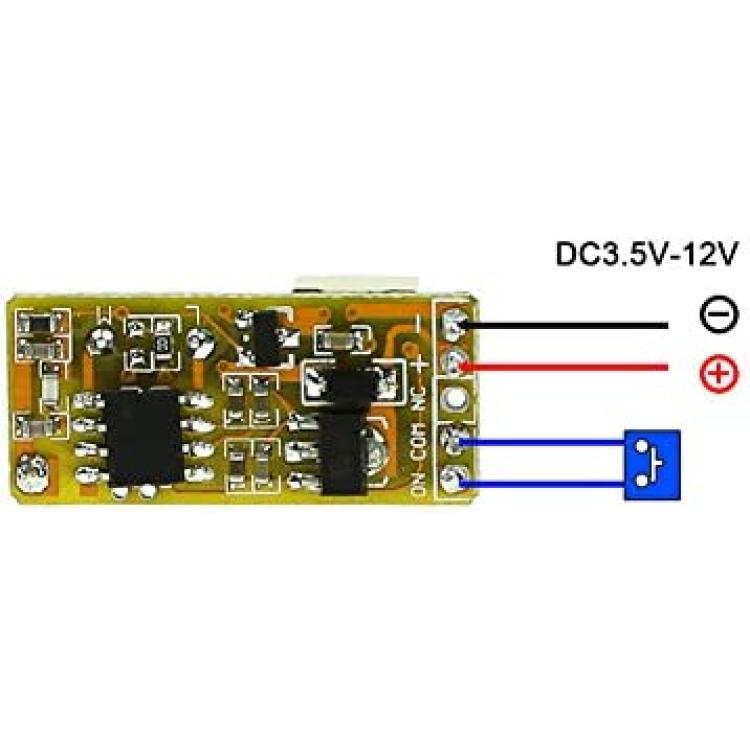

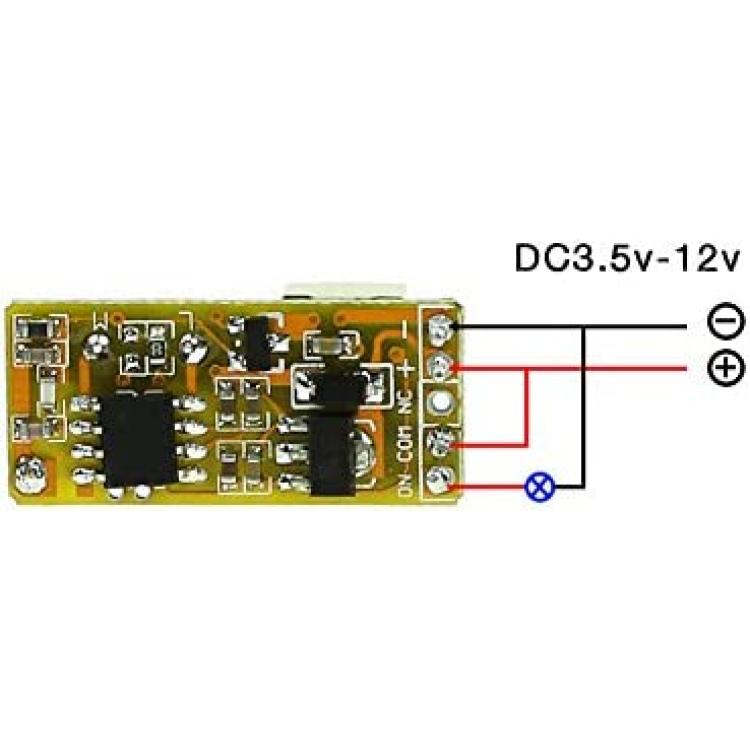

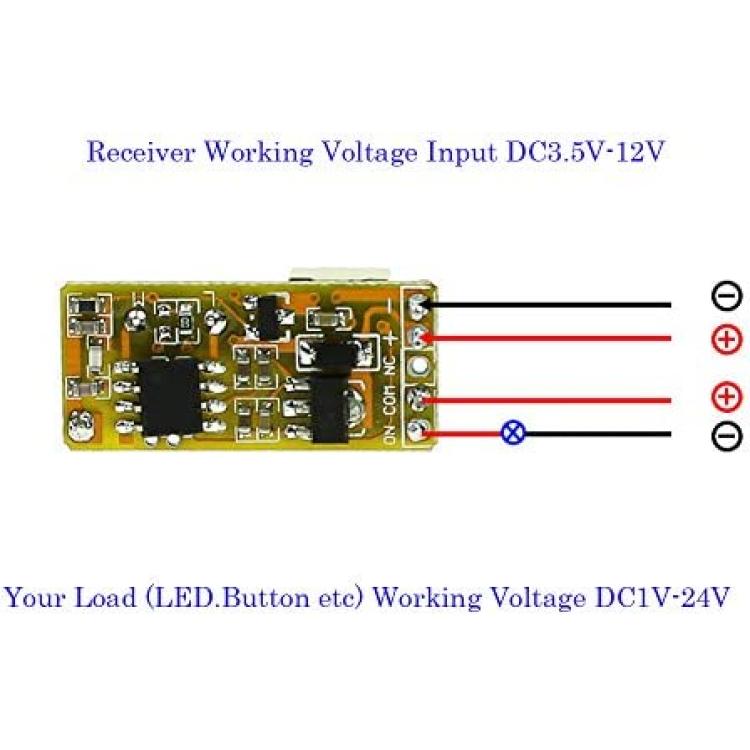

Normally Open Port (NO) Common Port (COM) Normally Close Port (NC) Input DC3.5V-DC12V Output 0V Switching Value

1.Momentary----press one button is working /ON. loosen your finger on the same button is stop/OFF .(one channel switch need one button remote)

2.Toggle----press one button for one time is working/ON .press the same button again is stop/OFF .(one channel switch need one button remote )

3.Latched----press one button is working/ON ,press another button is stop/OFF . ( one channel switch need 2 buttons remote )

Package Include:
1 x Receiver(without cover)
1 x Transmitter(with battery)
