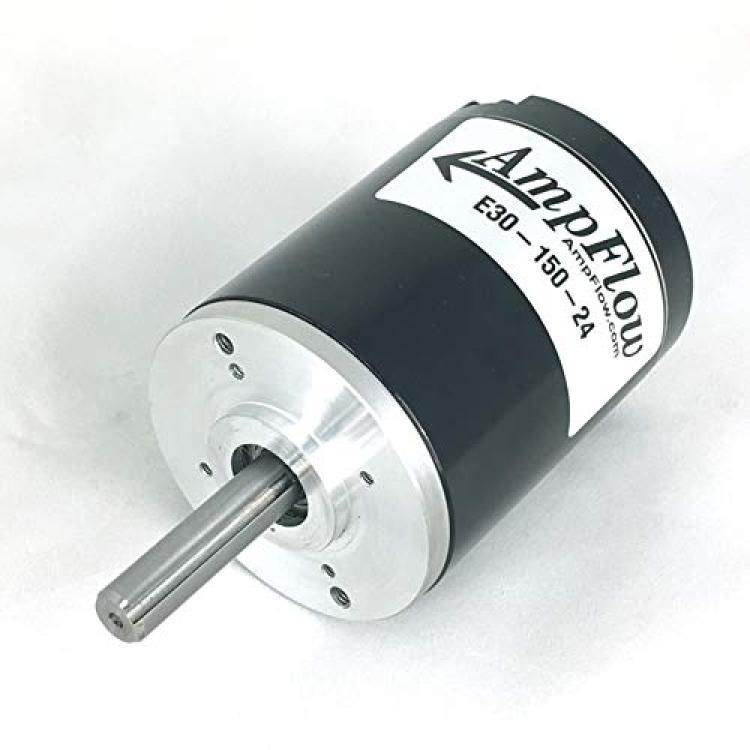

AmpFlow E30-150-24 Brushed Electric Motor, 12V, 24V, or 36 VDC, 5600 RPM
Availability: Pre-Order, Inquiry Price
About this product
*Measures 3. 1 inches diameter (78 mm) by 4. 0 inches long (102 mm)
*No-load rpm: 5600 at 24 volts; Can be used with voltages ranging from 12V to 36VDC
*Maximum power: 740 watts (1. 0 horsepower); Maximum stall torque: 5. 0 Nm (710 oz-in)
*Peak efficiency at 24V: 76% at 17 amps and 4900 RPM
*Power and torque at peak efficiency: 309 watts, (0. 41 horsepower), and 600 mNm (85 oz-in)
Description

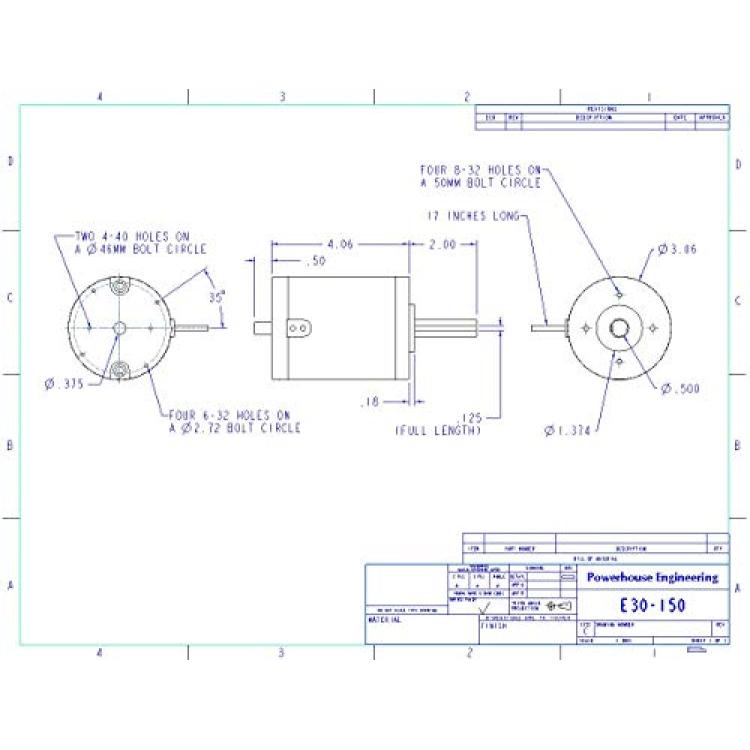

The AmpFlow E30-150-24 motor is designed to deliver good performance and efficiency at an economical price. This is achieved by using four brushes and advanced electromagnetic computer modeling and design. This reversible motor can be used at voltages ranging from 12V to 36V (the RPM is proportional to the voltage. ) At 24 Volts, it has a no-load speed of 5600 RPM. Peak short-term power output is 740 Watts (1. 0 horsepower). Peak efficiency of 76% is reached while drawing 17 Amps at 4900 RPM. The power output at 17 Amps is 309 Watts (0. 41 horsepower). These motors are made from two sturdy aluminum castings and a seamless body. The E30-150-24 motor is 3. 1 inches in diameter and 4 inches long. The 1/2-inch diameter shaft is two inches long, and it rides in two high-quality ball bearings. There is a short 3/8-inch diameter shaft on the rear of the motor for mounting an optical encoder. The heavy-gauge 12 AWG motor leads are 18 inches long. The motor weighs 3. 6 pounds, and it is finished in a high-quality black powder-coat paint. This motor is also available with an optional gearhead. Search for "AmpFlow Gearmotors". AmpFlow® motors are used in diverse applications, including robots, industrial motion control, factory automation, semiconductor manufacturing, power tools, pumps, and personal transport systems. Search for "AmpFlow motors" for more choices.
