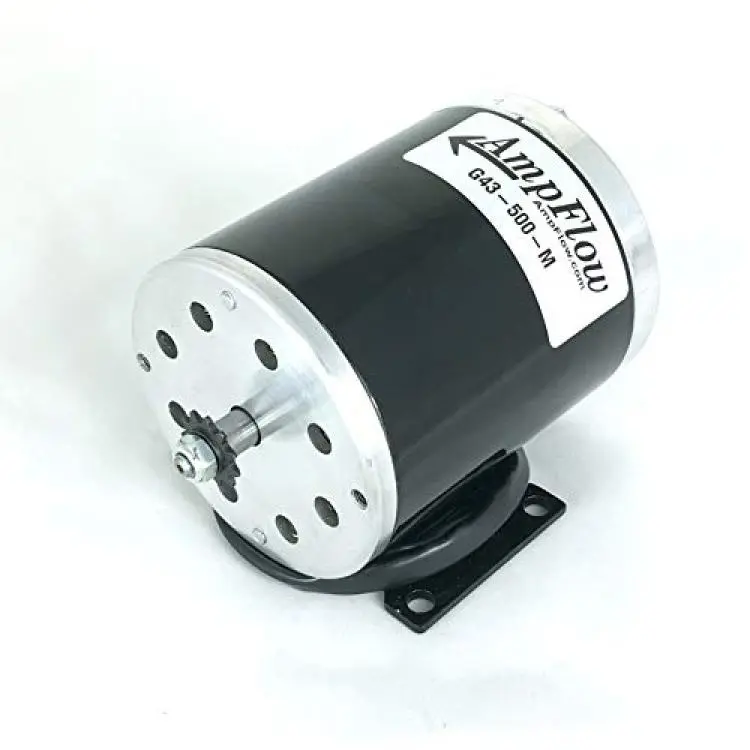

AmpFlow G43-500-M Brushed Electric Motor, 150W, 12V, 24V or 36 Volts DC, 3300 RPM
Availability: Pre-Order, Inquiry Price
About this product

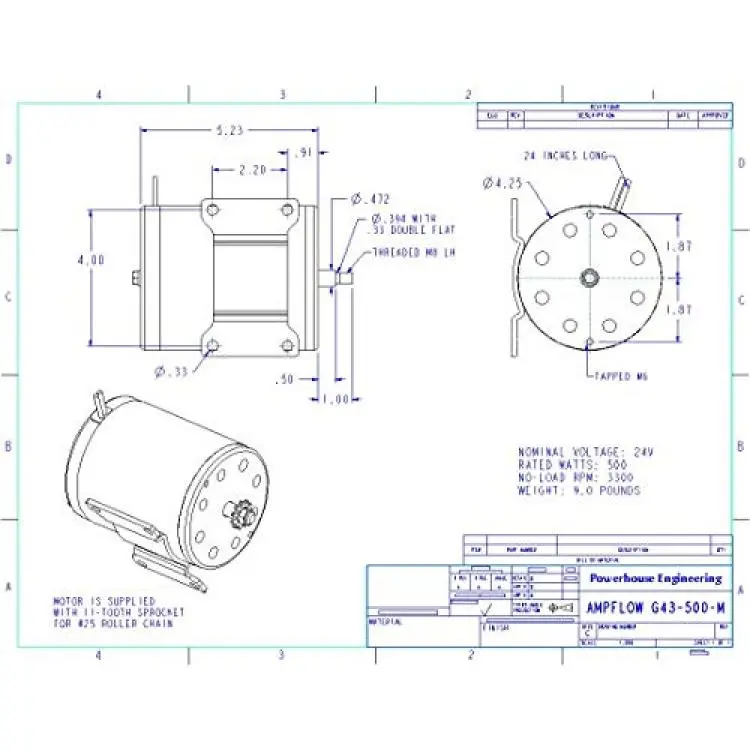

*Measures 4.3 inches diameter (109 mm) by 5.3 inches long (209 mm)
*No-load rpm: 3300 at 24 volts; Can be used with voltages ranging from 12V to 36VDC
*Continuous power: 500 watts (2/3 horsepower)
*Peak efficiency at 24V: 80%
*Supplied with 11-tooth sprocket for #25 chain
Description
The AmpFlow G43-500-M motor is designed to deliver good performance and efficiency at an economical price. This is achieved by the use of four brushes and advanced electromagnetic computer modeling and design. The motor is 4.3 inches in diameter and 5.3 inches long. The shaft rides in two high-quality ball bearings. The heavy-gauge motor leads are 24 inches long. The motor weighs 8.6 pounds, and it is finished in black powder-coat paint. This reversible motor can be used at voltages ranging from 12V to 36VDC. At 24 Volts, the no-load speed is 3300 RPM. The rated power output is 500W at 2800 RPM at 27 Amps. Peak efficiency is 80%. This motor is supplied with an 11-tooth sprocket for #25 roller chain. AmpFlow® motors are used in diverse applications, including robots, electric scooters, electric bicycles, and other personal transport systems. Search for "AmpFlow motors" for more choices.
