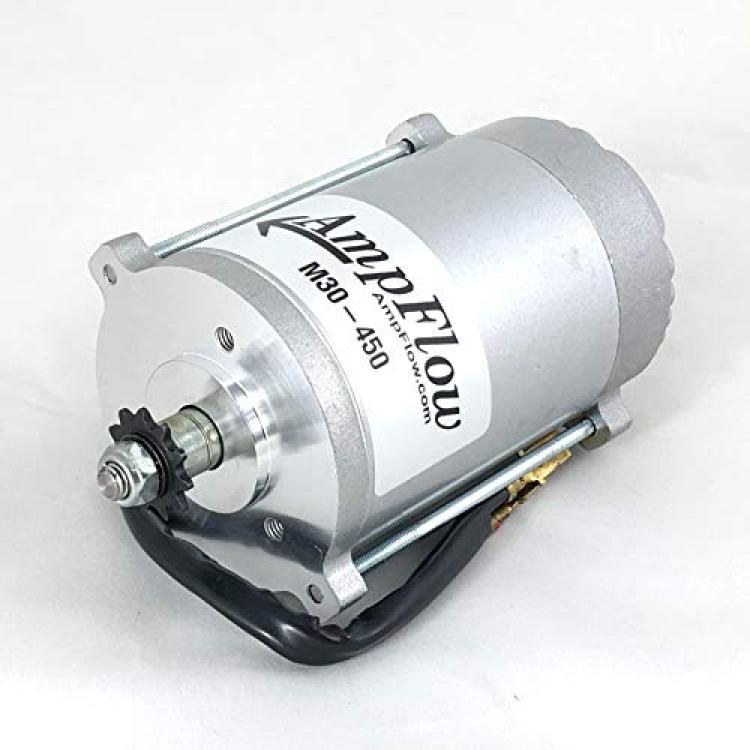

AmpFlow M30-450 Brushed Electric Motor, 450W, 12V, 24V or 36 VDC, 3700 RPM

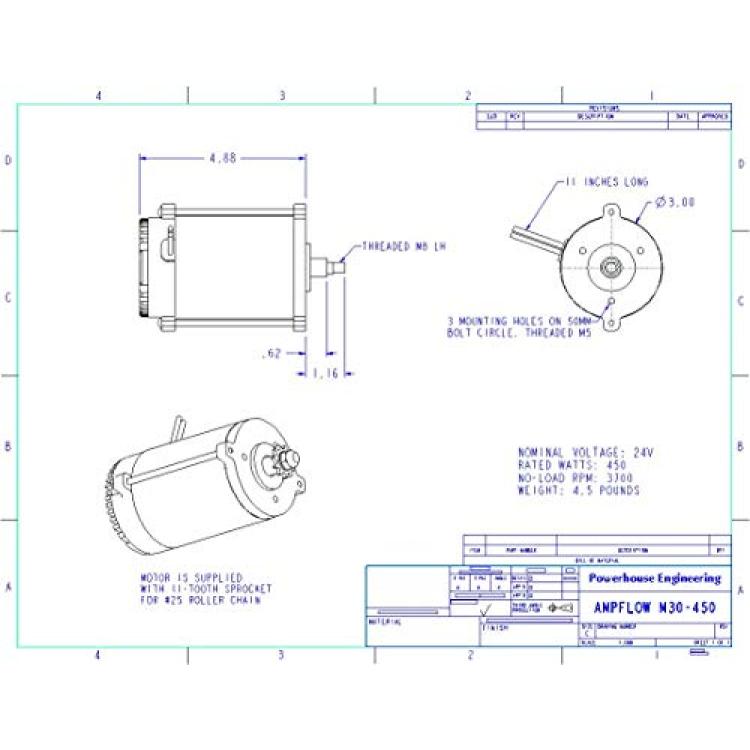

The AmpFlow M30-450 motor is designed to deliver good performance and efficiency at an economical price. This is achieved by the use of four brushes and advanced electromagnetic computer modeling and design. The motor is 3.0 inches in diameter and 4.9 inches long. The shaft rides in two high-quality ball bearings. The heavy-gauge motor leads are 24 inches long. The motor weighs 4.5 pounds. This motor is very compact and light for the amount of power it produces.This reversible motor can be used at voltages ranging from 12V to 36VDC. At 24 Volts, the no-load speed is 3700 RPM. The rated power output is 450W at 3400 RPM at 23 Amps. Peak efficiency is 80%. This motor is supplied with an 11-tooth sprocket for #25 roller chain. AmpFlow® motors are used in diverse applications, including robots, electric scooters, electric bicycles, and other personal transport systems. Search for "AmpFlow motors" for more choices.
