AmpFlow E30-400-12 Brushed Electric Motor, 6V, 12V, or 18 VDC, 6500 RPM
Availability: Pre-Order, Inquiry Price
About this product
*Measures 3. 1 inches diameter (78 mm) by 5. 8 inches long (147 mm)
*No-load rpm: 6500 at 12 volts; Can be used with voltages ranging from 6V to 18VDC
*Maximum power: 1170 watts (1. 6 horsepower); Maximum stall torque: 6. 9 Nm (970 oz-in)
*Peak efficiency at 12V: 78% at 48 amps and 5800 RPM
*Power and torque at peak efficiency: 450 watts (0. 60 horsepower) and 740 mNm (105 oz-in)
Description

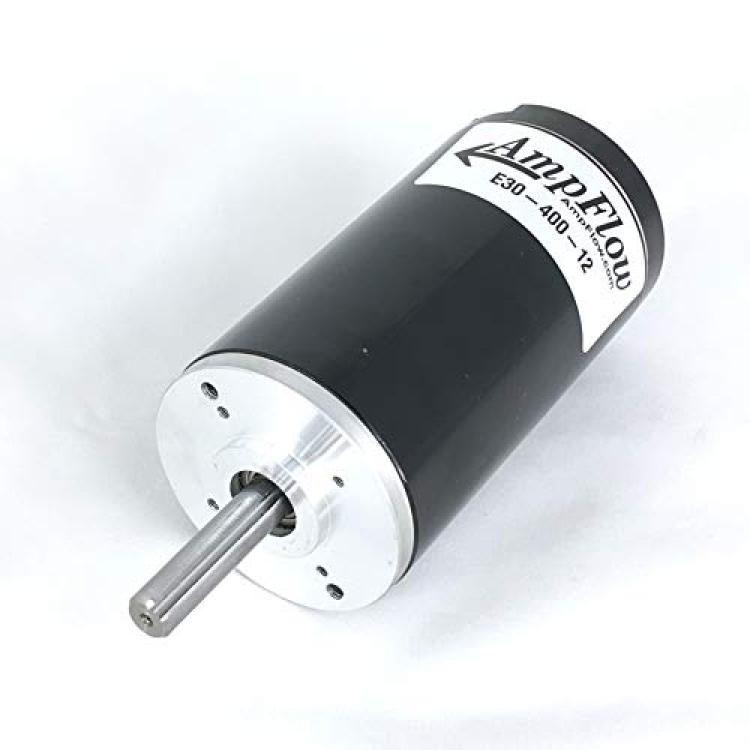

The AmpFlow E30-400-12 motor is designed to deliver good performance and efficiency at an economical price. This is achieved by using four brushes and advanced electromagnetic computer modeling and design. This reversible motor can be used at voltages ranging from 6V to 18V (the RPM is proportional to the voltage. ) At 12 Volts, it has a no-load speed of 6500 RPM. Peak short-term power output is 1170 Watts (1. 6 horsepower). Peak efficiency of 78% is reached while drawing 48 Amps at 5800 RPM. The power output at 48 Amps is 450 Watts (0. 60 horsepower). These motors are made from two sturdy aluminum castings and a seamless body. The E30-400-12 motor is 3. 1 inches in diameter and 5. 8 inches long. The 1/2-inch diameter shaft is two inches long, and it rides in two high-quality ball bearings. There is a short 3/8-inch diameter shaft on the rear of the motor for mounting an optical encoder. The heavy-gauge 12 AWG motor leads are 18 inches long. The motor weighs 5. 9 pounds, and it is finished in a high-quality black powder-coat paint. This motor is also available with an optional gearhead. Search for "AmpFlow Gearmotors". AmpFlow® motors are used in diverse applications, including robots, industrial motion control, factory automation, semiconductor manufacturing, power tools, pumps, and personal transport systems. Search for "AmpFlow motors" for more choices.
