KingVal Replacement 2430 5800KV Waterproof Brushless Motor Shaft 2.0mm with 25A Brushless ESC Compatible with 1/16 1/18 RC Car

Features:

? 4 Pole 12 Slot Hi-torque Motor Design

? CNC Machined 6061 T6 Billet Aluminum Heatsink Can

? High Purity Copper Windings Maximizes Efficiency

? High RPM ABEC5 Oversized Bearings

? Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws

? Precision balanced rotor,smoothness for best reliability and maximum RPM

? Stator - Super Thin (0.35mm) Laminations

? Removable/Replaceable Rotor

? Precision Engineered for Maximum Energy Conversion

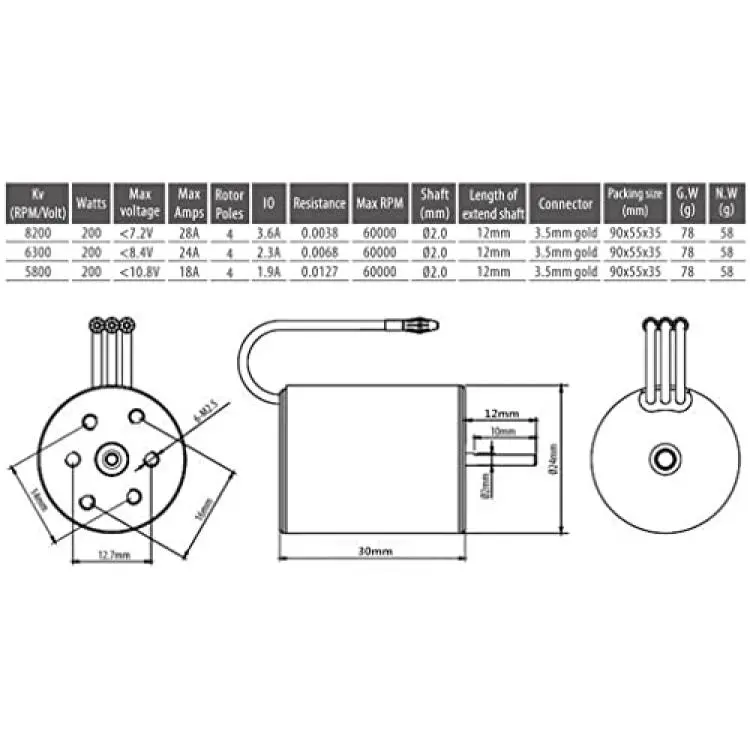

Specification:

Brand: KingVal

Sensored or sensorless: sensorless

Product: 2430-5800KV

Watts: 200

Max voltage: <10.8V (2S Lipo)

Max Amps: 18A

Rotor Poles: 4

IO: 1.9A

Resistance: 0.0127

Max RPM: 60000

Shaft: 2.0mm

Length of extend shaft: 12mm

Connector: 3.5mm gold

N.W: 58g

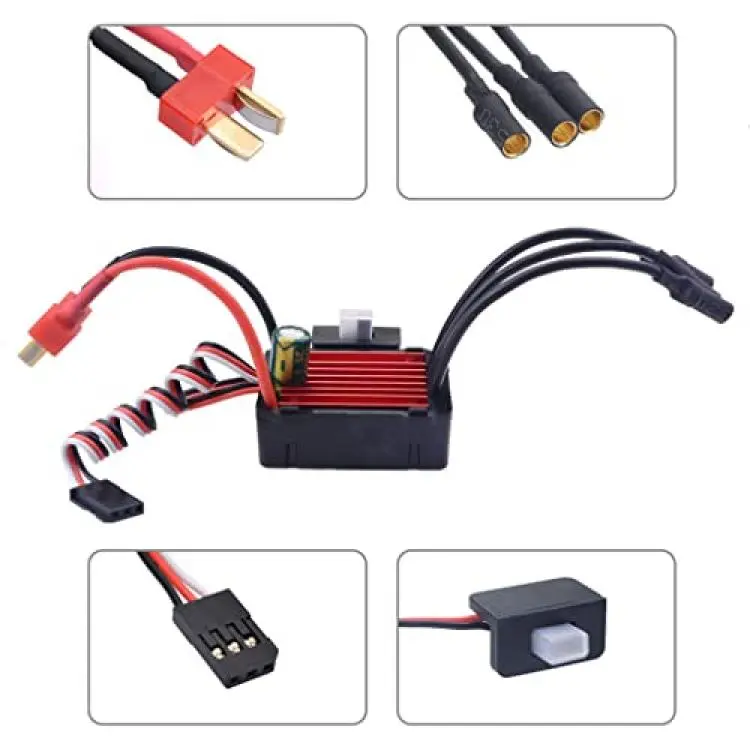

25A ESC:

Model: 25A

Continuous / maximum current: 25A/100A

Adaptation Motor: Sensorless Brushless Motor

For 2S Lipo or 6 cells NiMH:

1.on-road:24XX-size or smaller motor with the KV<7200

2. Off-road / Buggy / Monster: 24XX-size or smaller motor with the KV<4800

Applicable models: 1/20, 1/18, 1/16 car

Resistance: 0.0014ohm

Battery: 2 cells Lipo / 4~6 cells NiMH

BEC output: 5.0V/2A (analog mode)

Size / single weight 40*32*15/33g

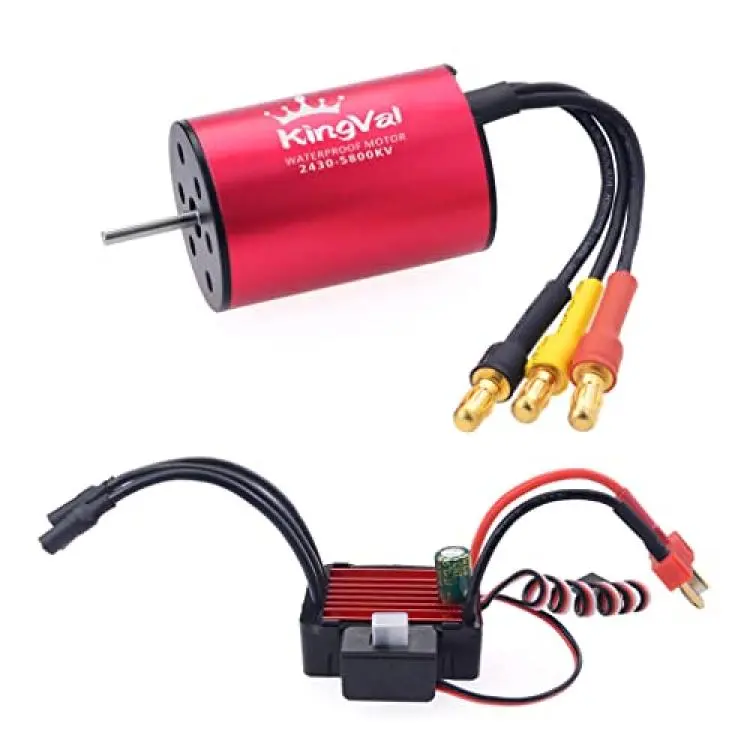

Package List:

1 x 2430 Motor

1 x 25A ESC
