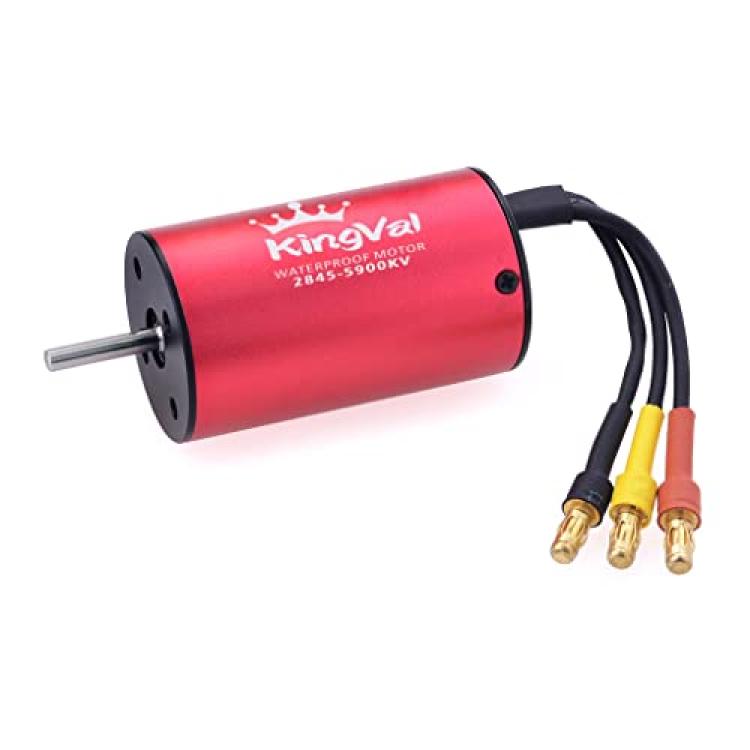

KingVal Replacement 2845 5900KV Waterproof Brushless Motor Shaft 3.175mm Compatible with 1/14 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 Pole 12 Slot Hi-torque Motor Design
*High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
*Universal fit, fits all 1/14 rc car for M3 screws
*Precision balanced rotor,smoothness for best reliability and maximum RPM
*Removable/Replaceable rotor ; Precision Engineered for maximum Energy Conversion
Description
Features:
4 Pole 12 Slot Hi-torque Motor Design.

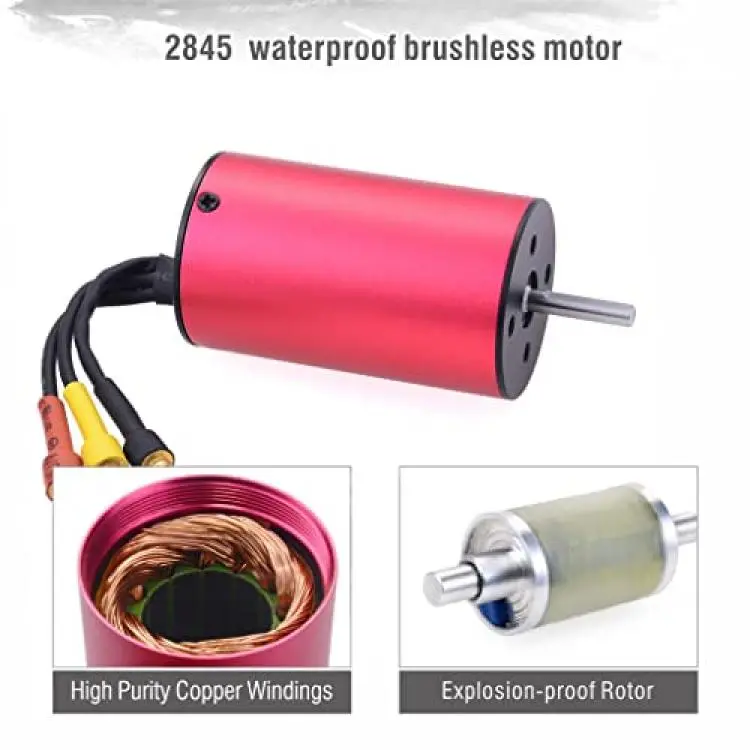

High Quality: CNC Machined 6061 T6 Billet Aluminum Heatsink Can, High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings.
Universal fit, fits all 1/14 rc car for M3 screws.
Precision balanced rotor,smoothness for best reliability and maximum RPM.
Stator - Super Thin (0.35mm) Laminations.
Removable/Replaceable rotor
Precision Engineered for maximum Energy Conversion
Specifications:
Brand: KingVal
Name: 2845 Waterproof RC Motor
KV(RPM/Volt): 5900KV
Watt: 800
Max RPM: 50000
Max voltage: <9V
Max amps: 88A
IO: 5.2A
Resistance:0.0104
Rotor poles: 4

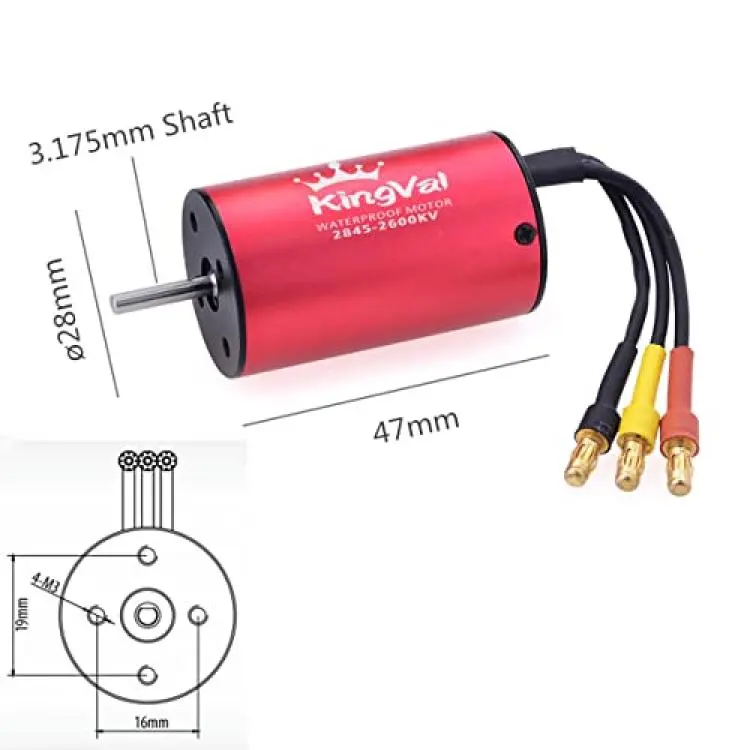

Shaft: 3.175mm
Shaft length: 15mm
Connector: 3.5mm gold
G.W: 145g
N.W: 125g
Package List:
1 x 2845 Waterproof Motor
1 x English Manual
