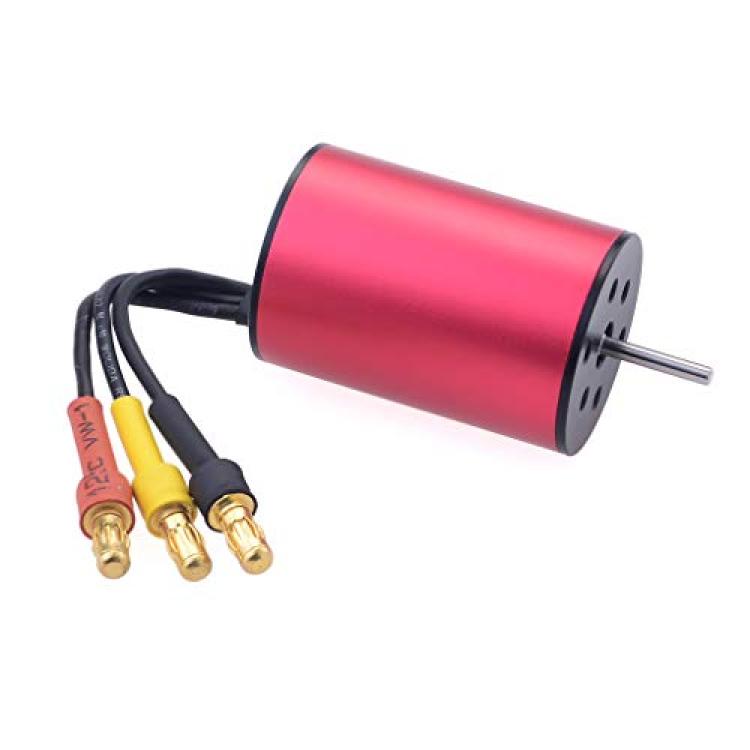

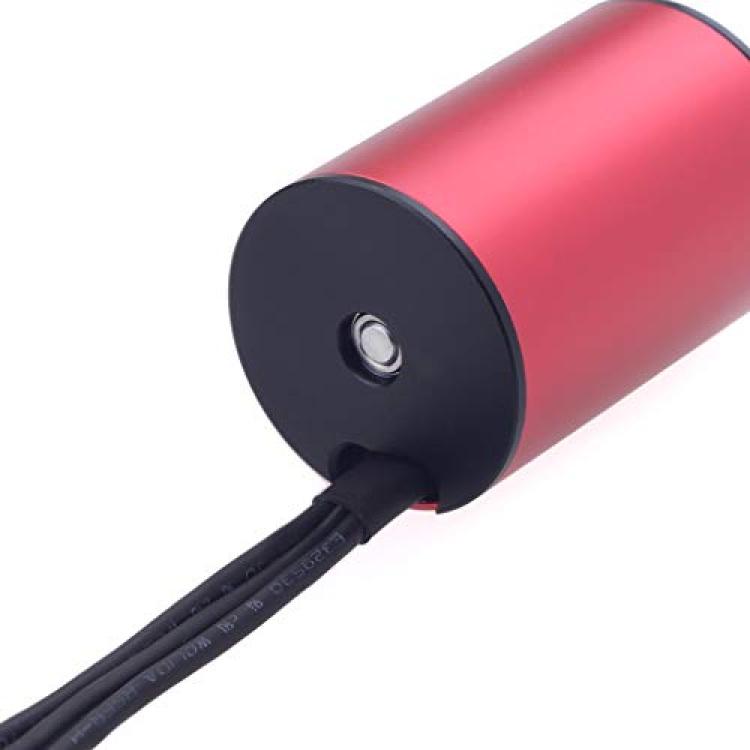

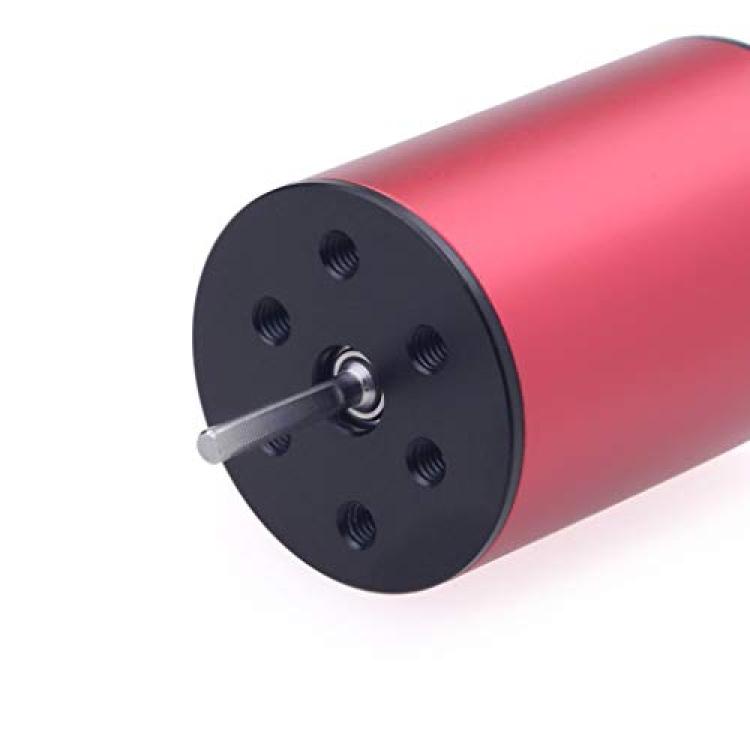

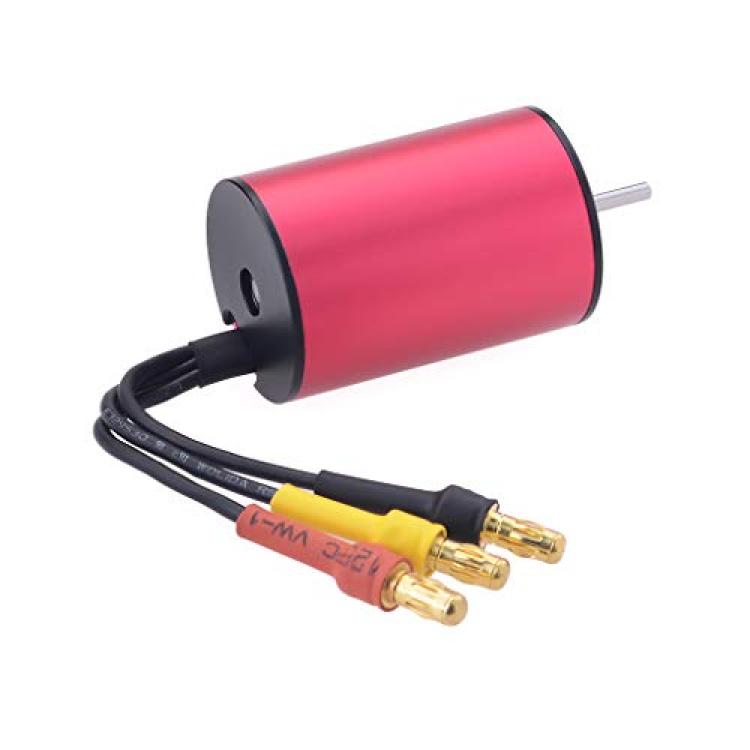

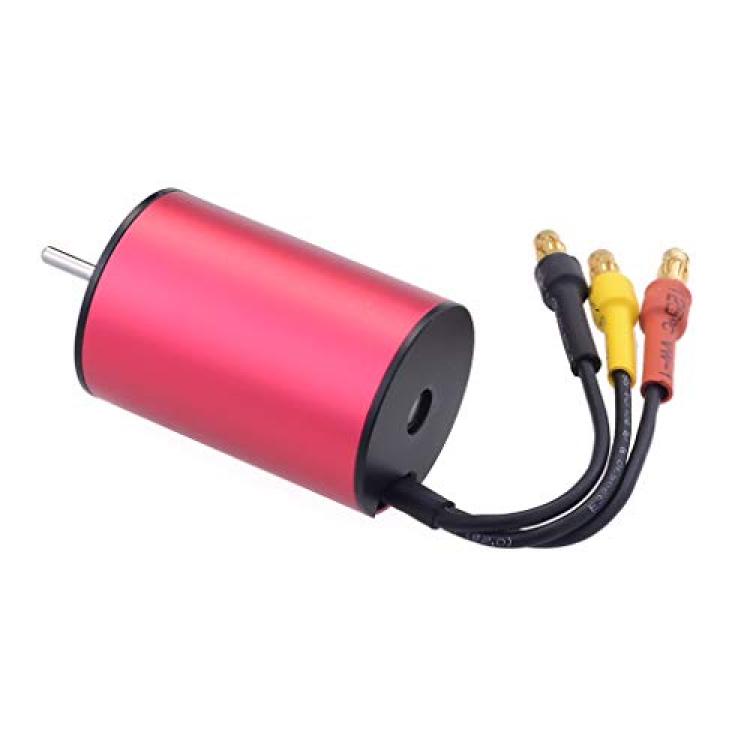

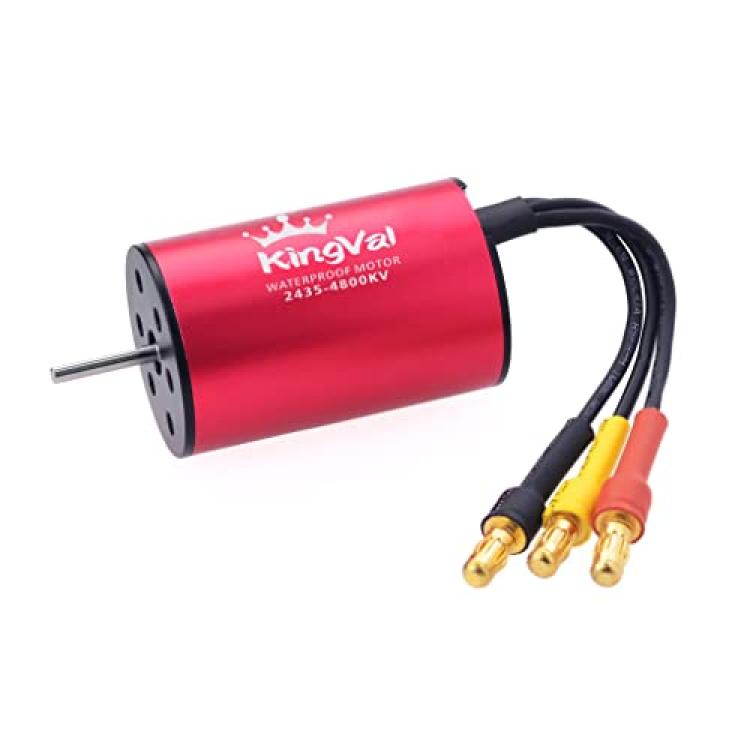

KingVal Replacement 2435 4800KV Waterproof Brushless Motor Shaft 2.3mm Compatible with 1/16 1/18 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 Pole 6 Slot Hi-torque Motor Design
*CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency; High RPM ABEC5 Oversized Bearings
*Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws
*Precision balanced rotor,smoothness for best reliability and maximum RPM
Description
Features:
? 4 Pole 12 Slot Hi-torque Motor Design
? CNC Machined 6061 T6 Billet Aluminum Heatsink Can
? High Purity Copper Windings Maximizes Efficiency
? High RPM ABEC5 Oversized Bearings
? Universal fit,fits all 1/16th,1/18th brushless cars-multi-mounting system for M2.5 screws
? Precision balanced rotor,smoothness for best reliability and maximum RPM
? Stator - Super Thin (0.35mm) Laminations
? Removable/Replaceable Rotor
? Precision Engineered for Maximum Energy Conversion
Specification:
Brand: KingVal
Sensored or sensorless: sensorless
Product: 2435-4800KV Motor
KV(RPM/Volt): 4800
Watts: 300
Max voltage: <12.6V(3S Lipo)
Max Amps: 24A
Rotor Poles: 4
IO: 2.0A
Resistance: 0.0057
Max RPM: 60000
Shaft: 2.3mm
Length of extend shaft: 12mm
Connector: 3.5mm gold
N.W: 63g
Package List:
1 x 2435 Motor
1 x Manual
