KingVal Replacement 2430 8200KV Waterproof Brushless Motor Shaft 2mm with 35A Brushless ESC Compatible with 1/18 1/16 RC Car

Motor Features:

*4 pole 12 slot Hi-torque motor design

*CNC machined 6061 T6 Billet aluminum Heatsink can

*High purity copper windings maximizes efficiency

*High RPM ABEC5 oversized bearings

*Universal fit,fits all 1/16,1/18 brushless cars-multi-mounting system for M2.5 screws

*Precision balanced rotor,smoothness for best reliability and maximum RPM

*Stator-super thin(0.35mm) Laminations

*Precision engineered for maximum energy conversion

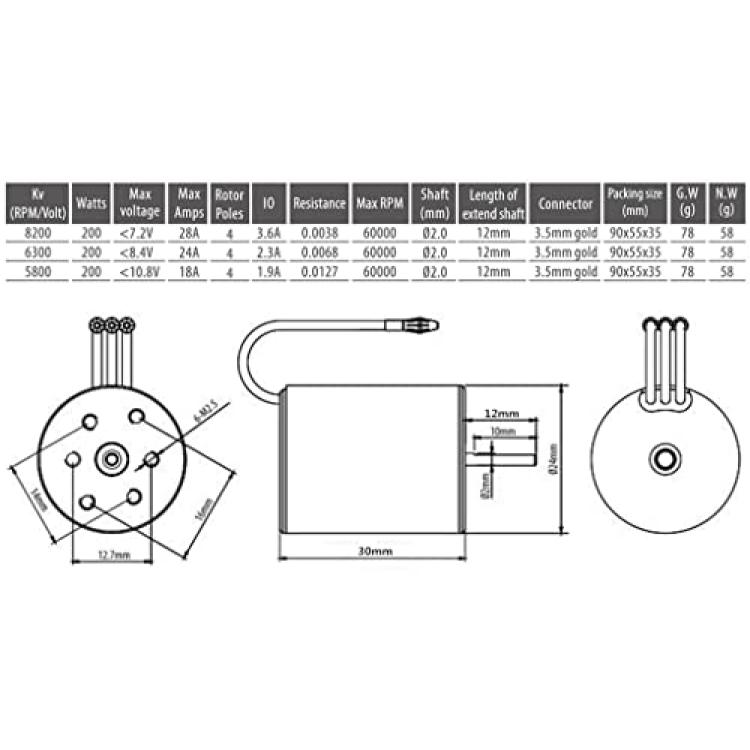

Motor Spec:

Brand: KingVal

Product: Waterproof 2430

KV(RPM/Volt): 8200

Watts: 200

Max Voltage: <7.2V

Max Amps: 28A

Rotor Poles: 4

IO: 3.6A

Resistance: 0.0038

Max RPM: 60000

Shaft: 2.0mm

Length of extend shaft: 12mm

Connector: 3.5mm gold

N.W: 58g

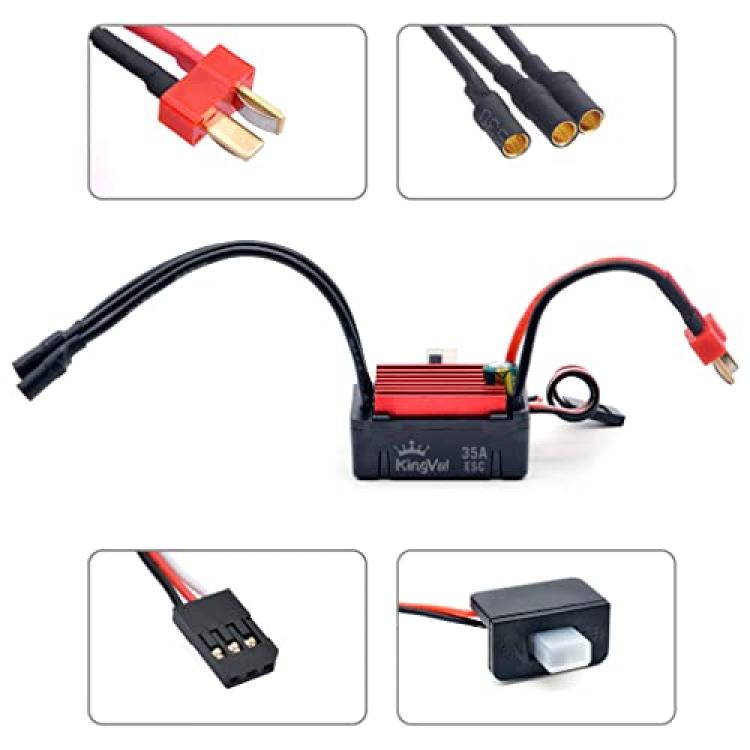

35A ESC:

Cont.Current/Burst Current: 35A/120A

Motor Type: Sensorless Brushless Motor

For 2S Lipo or 6 cells NiMH:

1.on-road: 28XX-size or smaller motor with the KV<6000

2.Off-road/Buggy/Monster: 28XX-size or smaller motor with the KV<4000

For 3S Lipo or 9 cells NiMH:

1.on-road: 28XX-size or smaller motor with the KV<4000

2.Off-road/Buggy/Monster: 28XX-size or smaller motor with the KV<3000

Suitable Car: 1/16, 1/14 car

Resistance: 0.0007ohm

Battery: 2-3 cells Lipo / 4-9 cells NiMH

BEC Output: 5V/2A(analog mode)

Dimensions/Weight: 40x32x20mm/37g

Package Included:

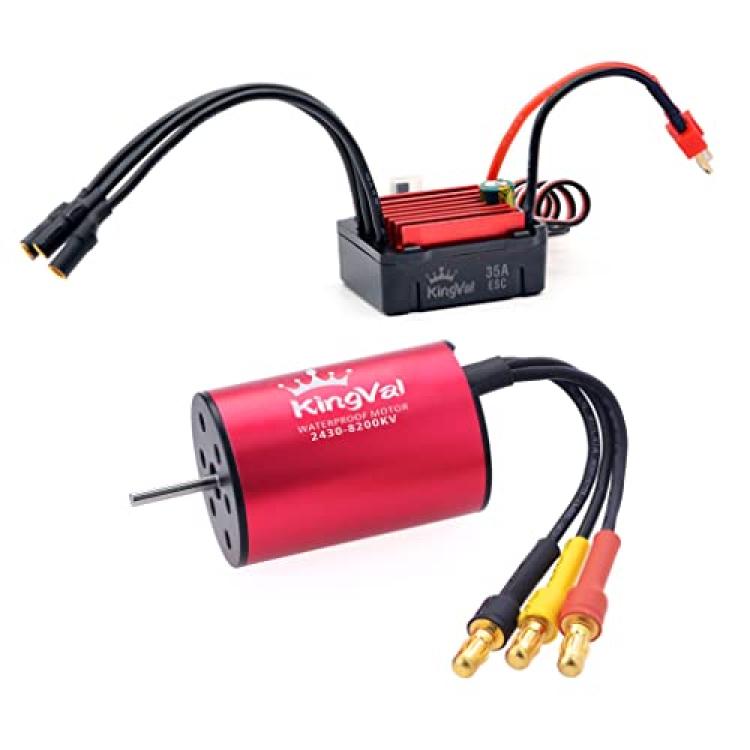

1 x 2430 Brushless Motor

1 x 35A Brushless ESC

2 x Manual
