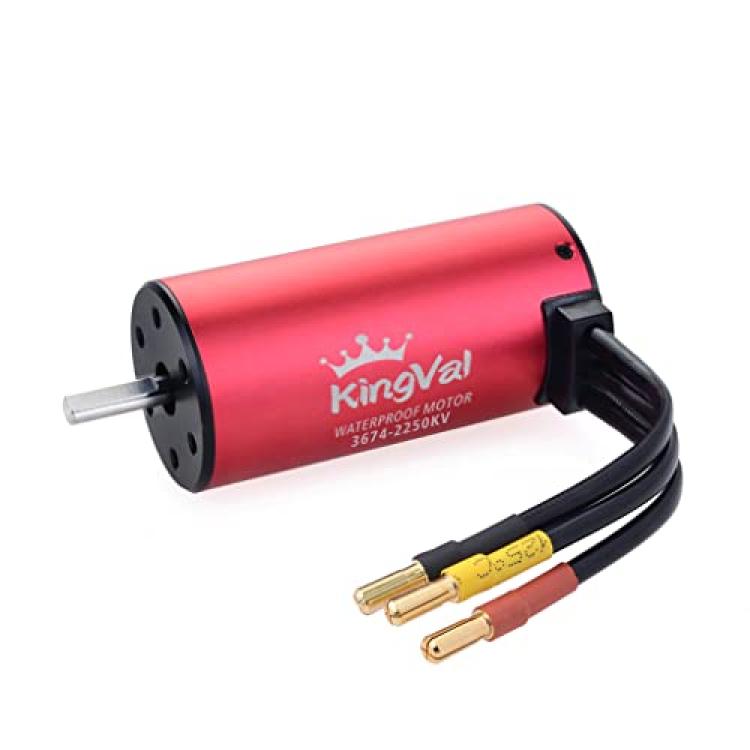

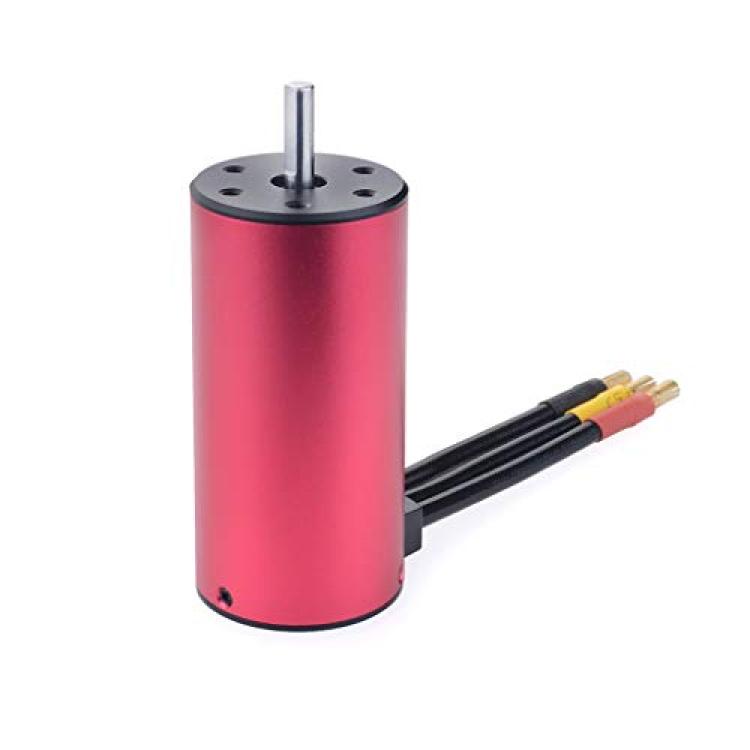

KingVal Replacement 3674 2250KV Waterproof Brushless Motor Shaft 5mm Compatible with 1/8 RC Car
Availability: Pre-Order, Inquiry Price
About this product
*4 Pole 6 Slot Hi-torque Motor Design, CNC Machined 6061 T6 Billet Aluminum Heatsink Can
*High Purity Copper Windings Maximizes Efficiency, High RPM ABEC5 Oversized Bearings
*Universal fit,fits all 1/8th brushless cars-multi-mounting system for M3 screws
*Precision balanced rotor,smoothness for best reliability and maximum RPM
*Stator - Super Thin (0.35mm) Laminations, Removable/Replaceable Rotor,Precision Engineered for Maximum Energy Conversion
Description
Features:
? 4 Pole 6 Slot Hi-torque Motor Design
? CNC Machined 6061 T6 Billet Aluminum Heatsink Can
? High Purity Copper Windings Maximizes Efficiency
? High RPM ABEC5 Oversized Bearings
? Universal fit,fits all 1/8th brushless cars-multi-mounting system for M3 screws
? Precision balanced rotor,smoothness for best reliability and maximum RPM
? Stator - Super Thin (0.35mm) Laminations
? Removable/Replaceable Rotor
? Precision Engineered for Maximum Energy Conversion

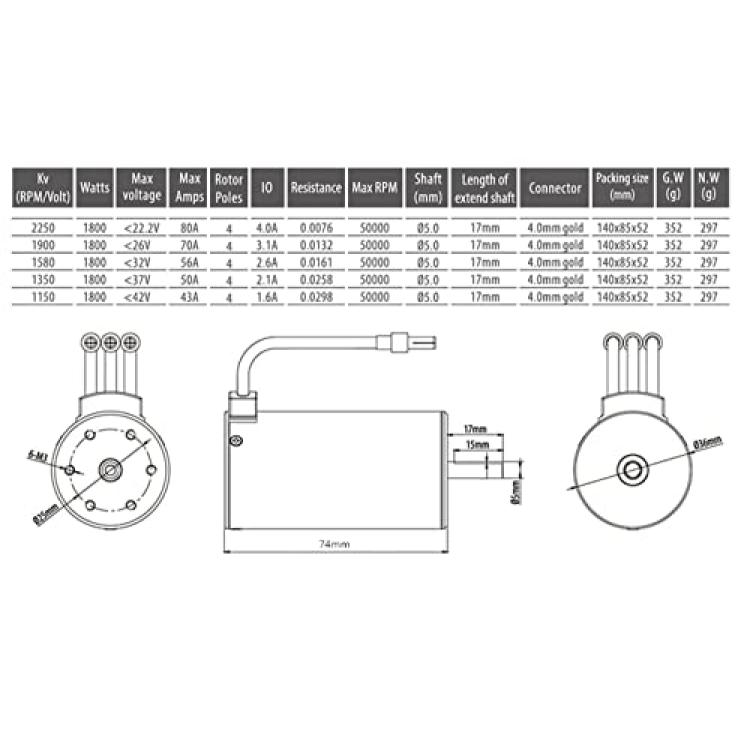

Specification:?3674?
Scale tpye?Fits all 1/8 brushless cars
Brand: KingVal
Sensored or sensorless: Sensorless
Product: Waterproof 3674 RC Motor
KV(RPM/Volt): 2250
Watts: 1800
Max voltage: <22.2V
Max Amps: 80A
Rotor Poles: 4
IO: 4.0A
Resistance: 0.0076
Max RPM: 50000

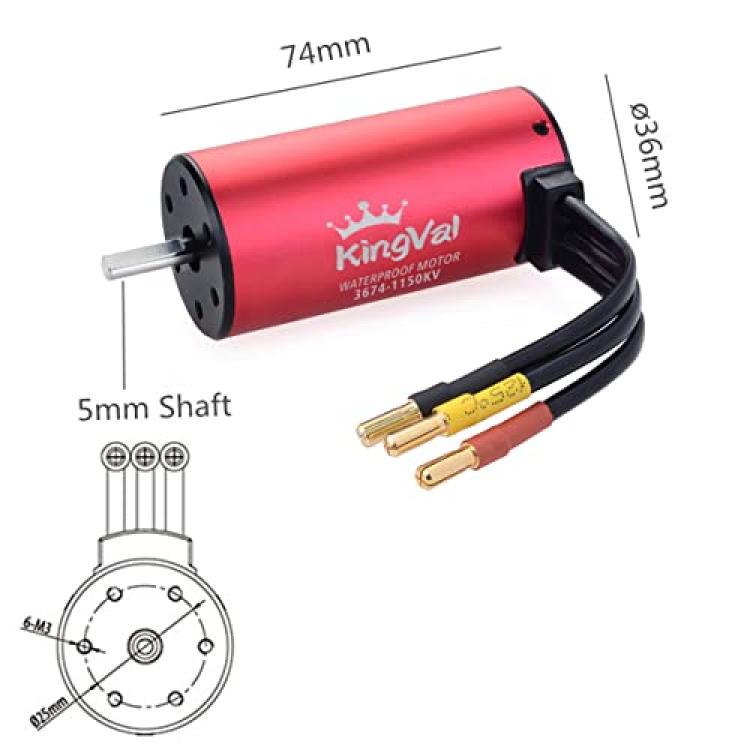

Shaft: 5mm
Length of extend shaft: 17mm
Connector: 4.0mm gold
Package List:
1 x Waterproof 3674 Motor
1 x English Manual
