CHANCS CH-3420 Permanent Magnet 12v/24V DC Motor 30W CW/CCW Reversible Electric Gear Motor High Speed DC Adjustable-speed Motor Mounting Bracke Fixed Seat Holder for DIY Generator(24v 7000RPM)
About this product
*Need for external direct current governor, it can achieve speed adjustment function.
*It drives up the super smooth, almost no noise..This motor features high speed 7000pm and large torque

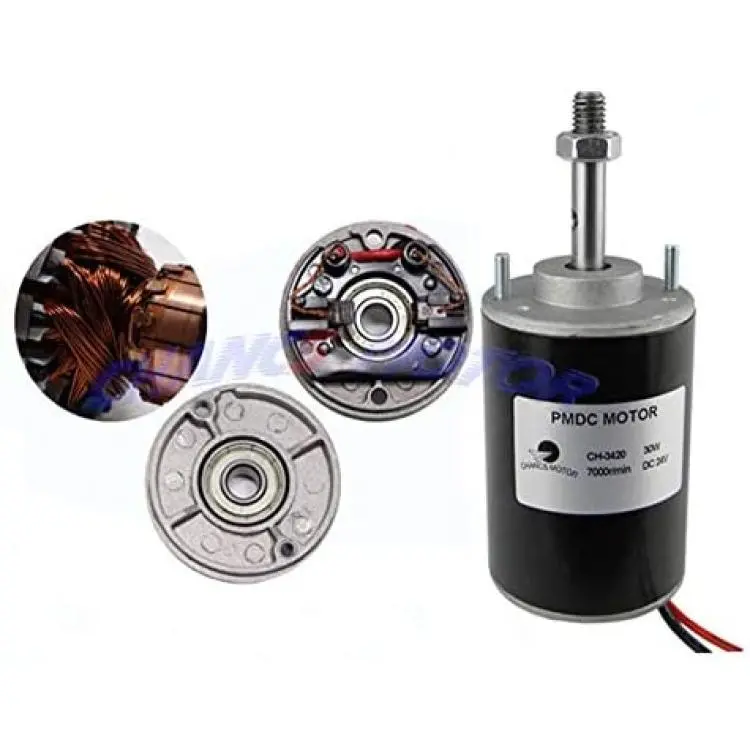

*The stator windings of the motor are copper wire, low heat, low loss, long life,and with CW/CCW by switch control (switch not included).
*This permanent magnet DC motor is for DIY generator.

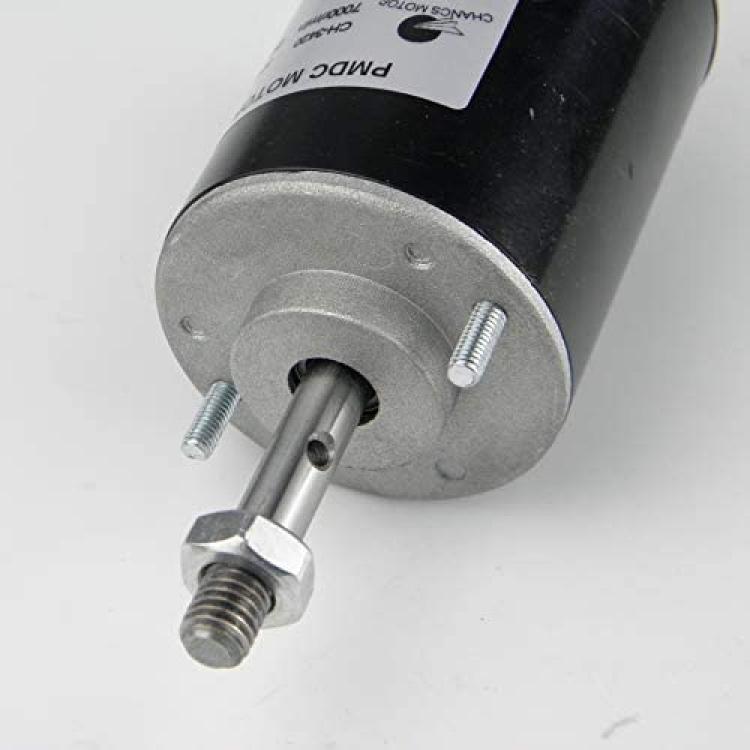

*The motor shaft is made with 3mm diameter hole and 13mm threaded connecting tip. It can be widely usded in cotton candy machine, mini cutting bench, grinder, medical equipment and other mechanical equipmen
Description

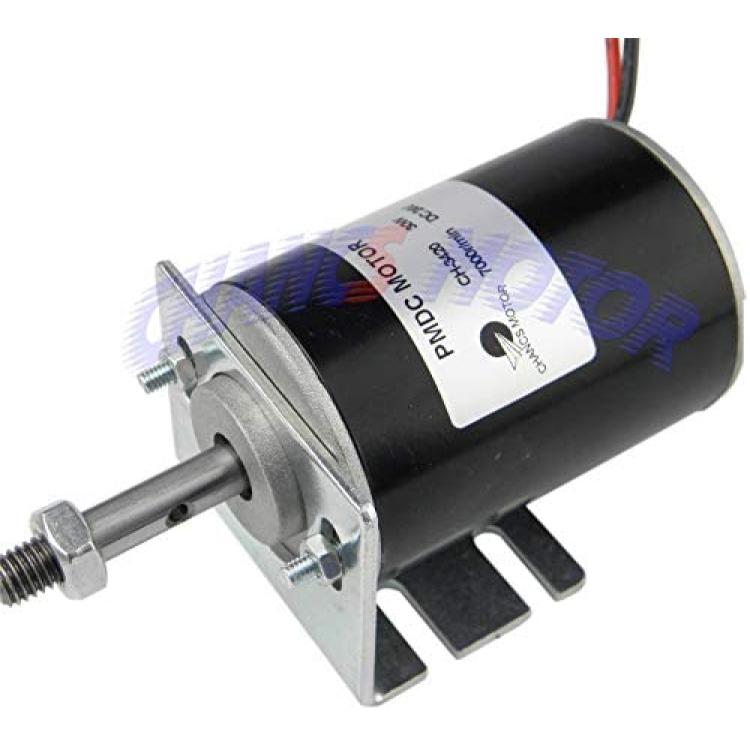

This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. Ball bearing, small friction, strong oil seal, high bearing capacity It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection. The motor shaft is made with 3 mm diameter hole and 13mm threaded connecting tip. It can be widely usded in cotton candy machine, mini cutting bench, grinder, medical equipment and other mechanical equipment.

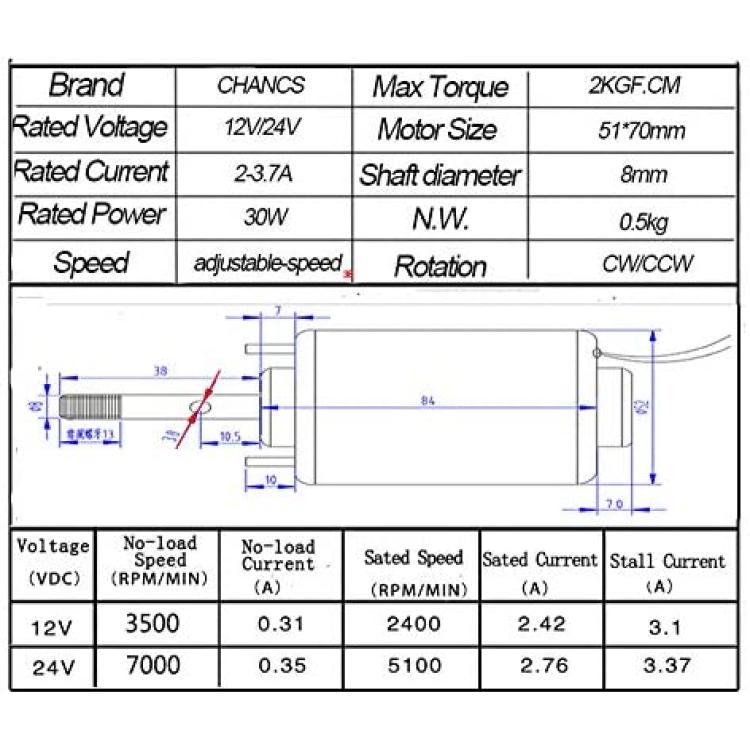

Specification
CH-3420
N.W.Weight: 0.49kg
Model: CH-3420
Function types: adjustable speed
Voltage:24V
Rated voltage:2-3.7A
Rated power : 30W
Speed: 7000RPM
Torque:2kgf.cm
Package size:13*8*9cm
Shaft diamater:8mm
Life:3000H
Rotation:CW/CCW

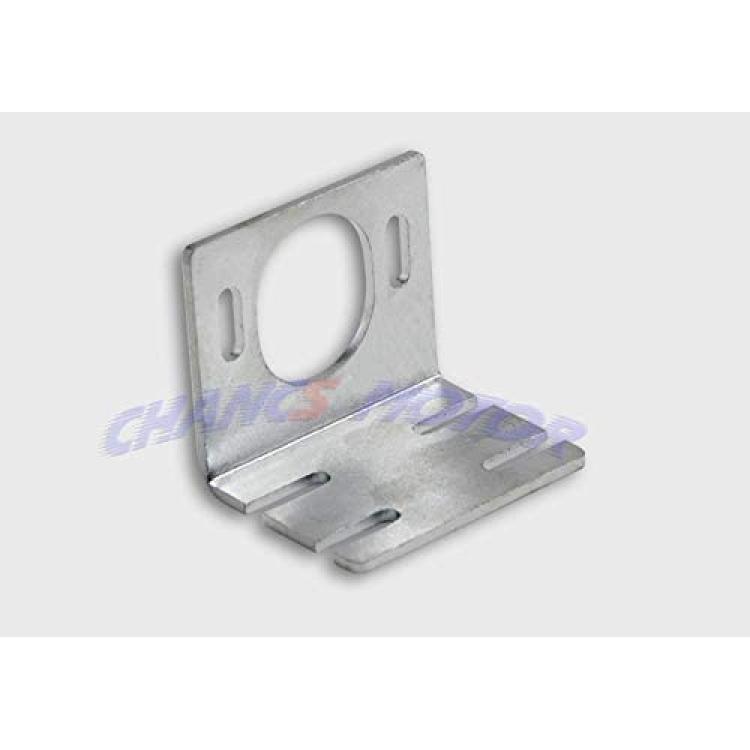

Bracket :
N.W.Weight: 0.11kg
Packing size:13*8*9cm
Materials: High Strength Steel

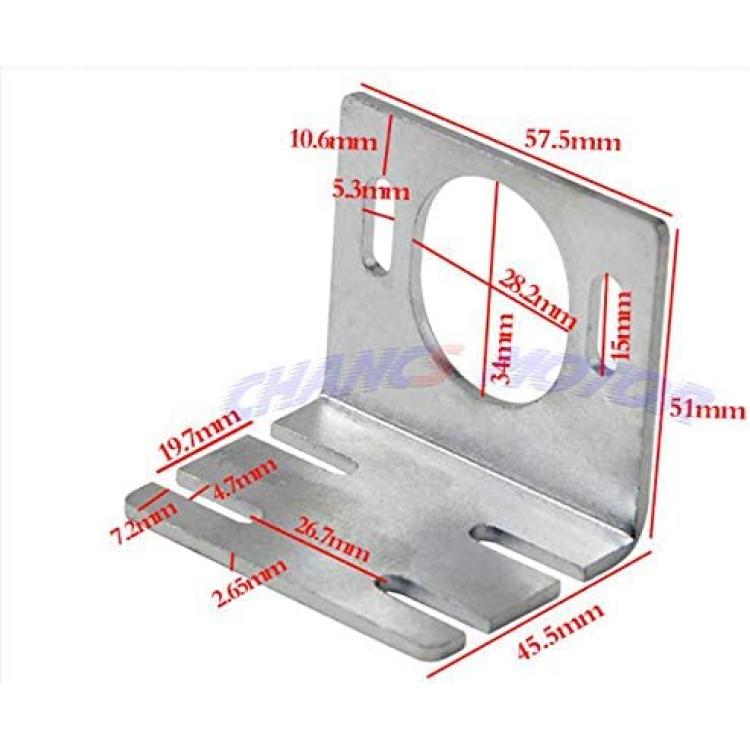

Vertical Plane: thickness 2.65mm/0.104inch, height 51mm/2.008in
Baseboard: .45.5mmx57.5mm/1.791in x 2.264in
