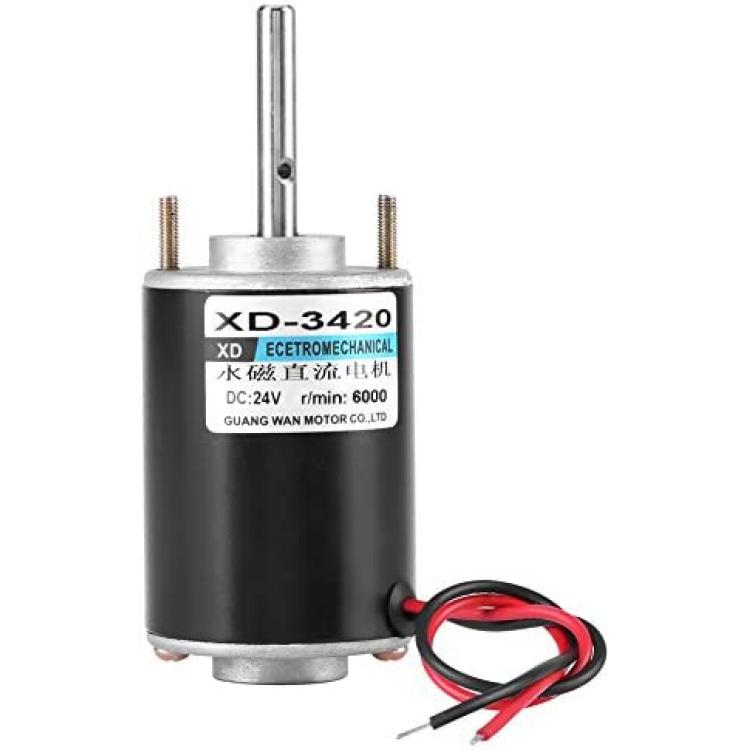

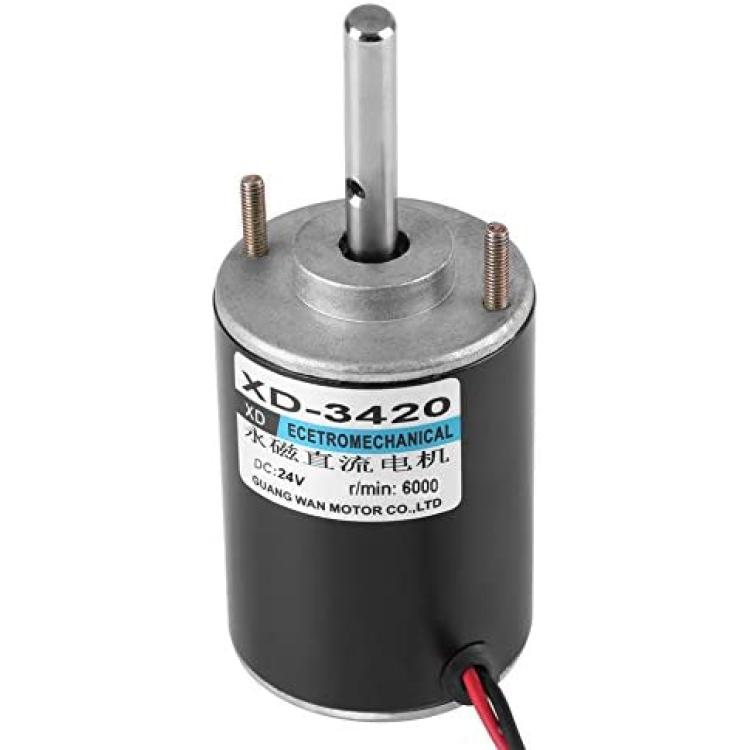

Mini Electric Motor 30W Permanent Magnet DC Motor 12V/24V High Speed CW/CCW (DC 24V 6000RPM)
Availability: Pre-Order, Inquiry Price
About this product
*Permanent magnet dc motor high speed with long output shaft,easy to install.
*DC 12V 3000RPM or DC 24V 6000RPM,2 size for your choice.
*The stator windings of the motor are copper wire, low heat, low loss, long life,and with CW/CCW control.
*Widely used in cotton candy machine, small cutting bench, grinding machine, medical equipment and other mechanical equipment.
*Mini Size- Motor body (Diameter x Height) 5.1cm/2 inch x 7.1cm/2.8 inch.
Description
Specifications Product type: brush DC motor
Model: XD-3420
Rated power: 30W
Rated voltage(Optional):12V, 24V
Rated speed: 3000RPM(12V),6000 RPM(24V)
Current: 0.5 A
Output Shaft Length: 43mm/1.7inch
Torque:1kgf.cm(12V),2kgf.cm(24v)
Weight:480g
Package Included
1 x DC Electric Motor
Frequency Asked Questions
What is motormaker.net?
MotorMaker.net is an online retailer and bulk order e-shop for electric motor and controller products, range from standard products and customized products. Main production bases are located in Shenzhen, Dongguan, Wuhan, Shanghai and Chengdu. A professional team supports your order and customization design.
What service can be supported from motormaker.net?
MotorMaker.net offer product order and product customization service. All orders will be supported after-sales service, including quanlity gurantee, and technical support.
How to order products from motormaker.net?
You can online order product from motormaker.net by adding product to cart and got to checkout page. Multiple currency options are supported. You can choose suitable currency to place order. Before checkout, you should register account to submit order information.
How to delivery your order from motormaker.net to you?
For order delivery, motormaker.net provides three shipping options, express, air-flight and sea freight. You can choose one option according to your order.
How to inquiry product bulk price?
For the interested product, you can submit bulk price inquiry by bulk order inquiry form.
