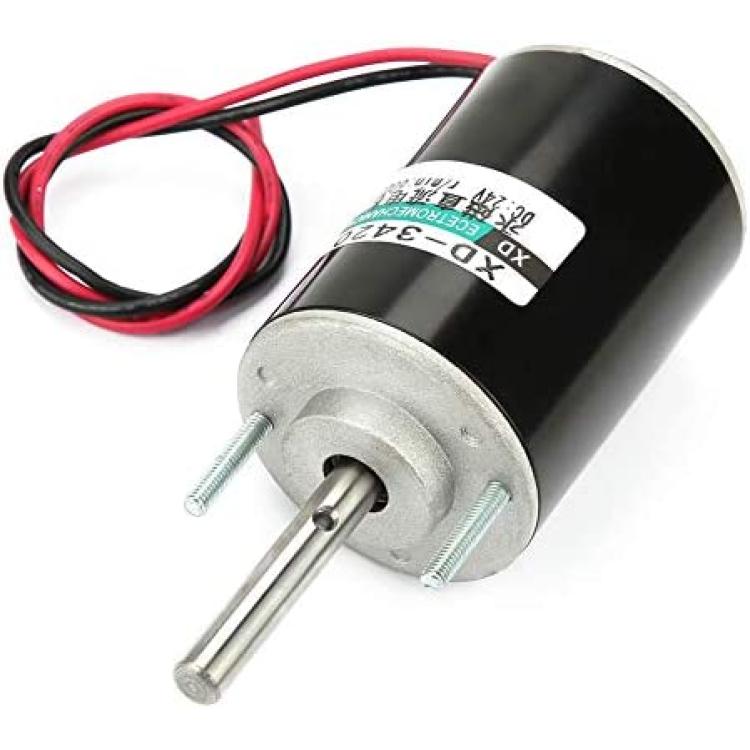

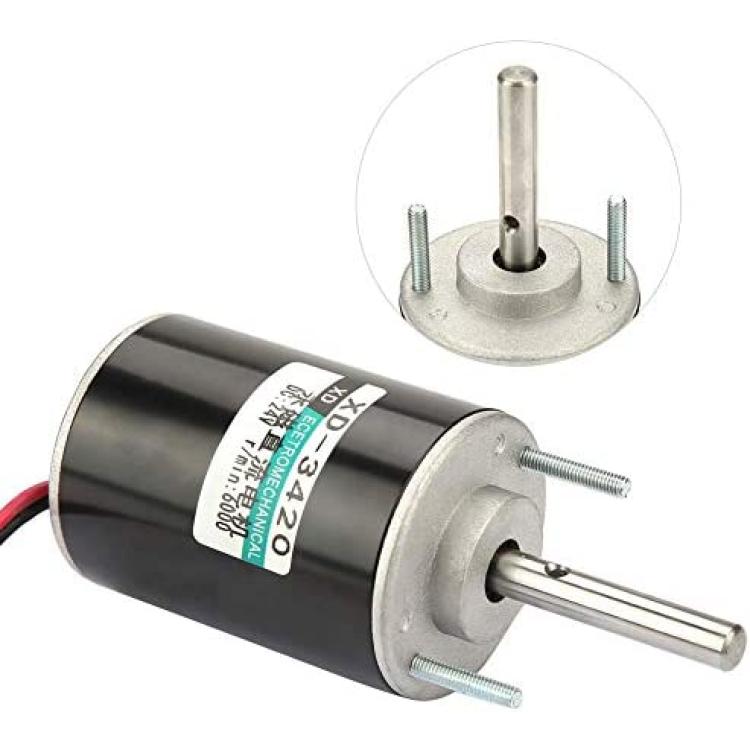

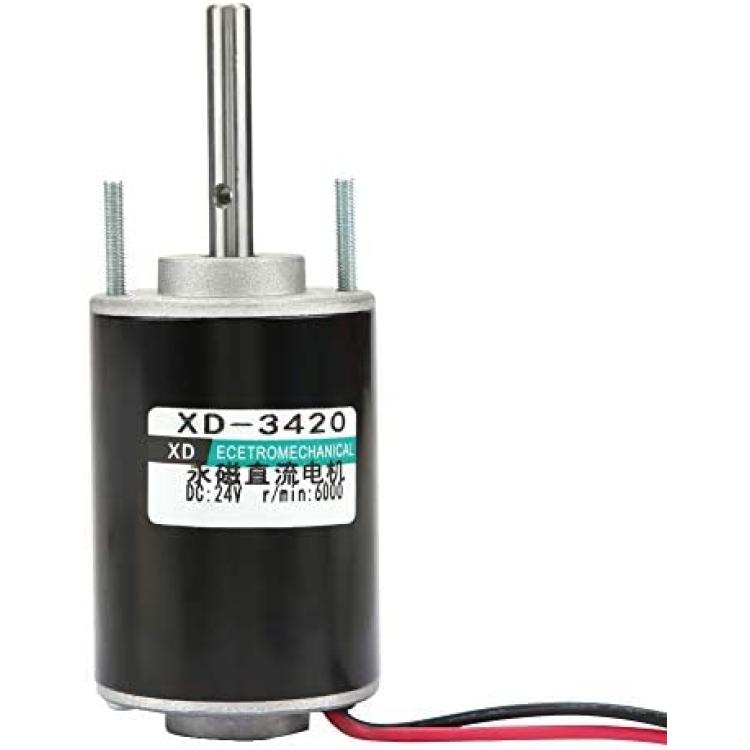

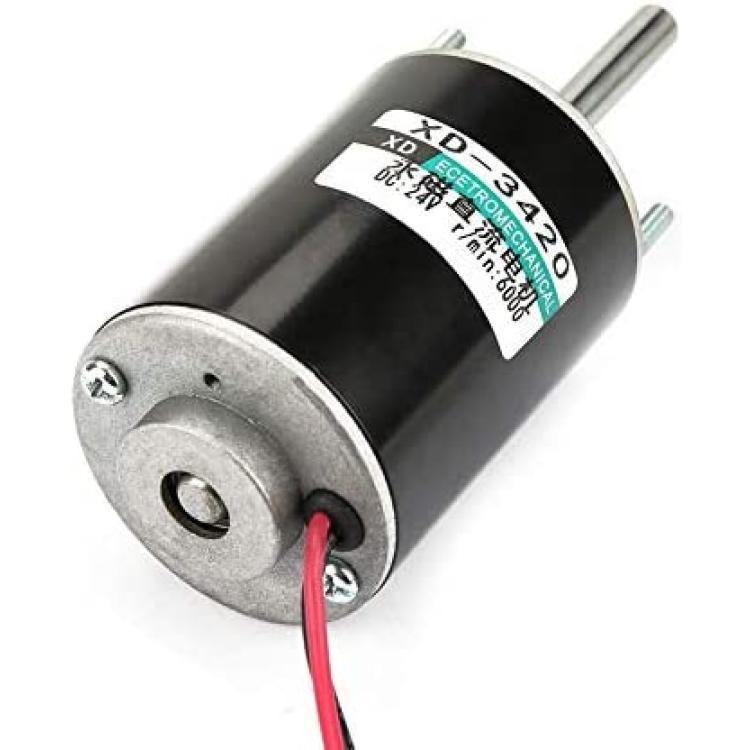

12V/24V 30W CW/CCW Permanent Magnet DC Motor Reversible Electric Gear Motor High Speed for DIY Generator (24V 6000RPM)
About this product

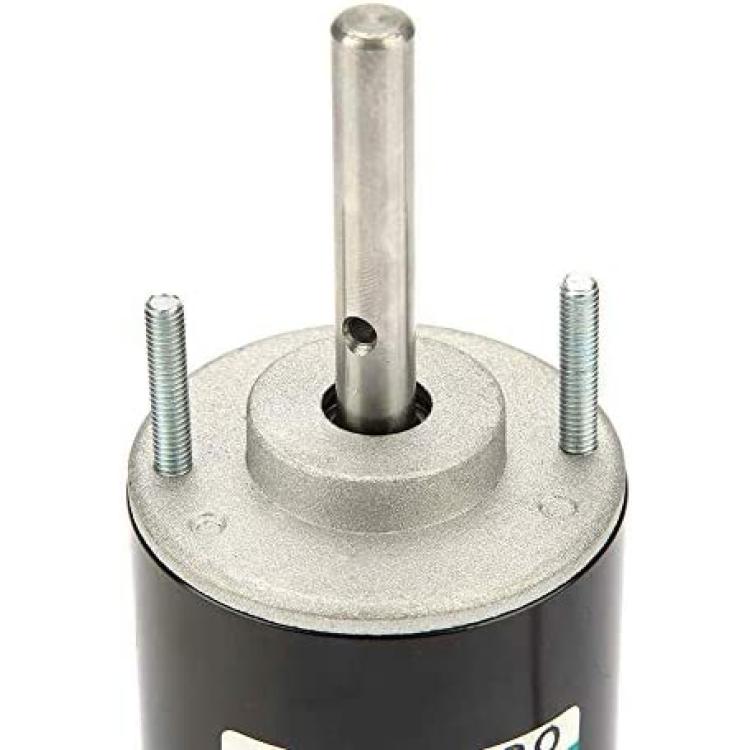

*Ball bearing, small friction, strong oil seal, high bearing capacity
*It drives super smooth, almost no noise, safe to use.
*With high speed 3000/6000rpm for your choice and large torque
*The stator windings of the motor are copper wire, low heat, low loss, long life,and with CW/CCW by switch control (switch not included)
*Need for external direct current governor, it can achieve speed adjustment function, Widely used in cotton candy machine, small cutting bench, grinding machine, medical equipment and other mechanical equipment.
Description
This DC electric motor drives super smooth, almost no noise, safe to use.With high speed 3000/6000rpm for your choice and large torque. Widely used in cotton candy machine, small cutting bench, grinding machine, medical equipment and other mechanical equipment.
Specifications:
Product type: brush DC motor
Model: XD-3420
Rated power: 30W
Rated voltage(Optional):12V, 24V
Rated speed: 3000RPM(12V),6000 RPM(24V)
Current: 0.5 A

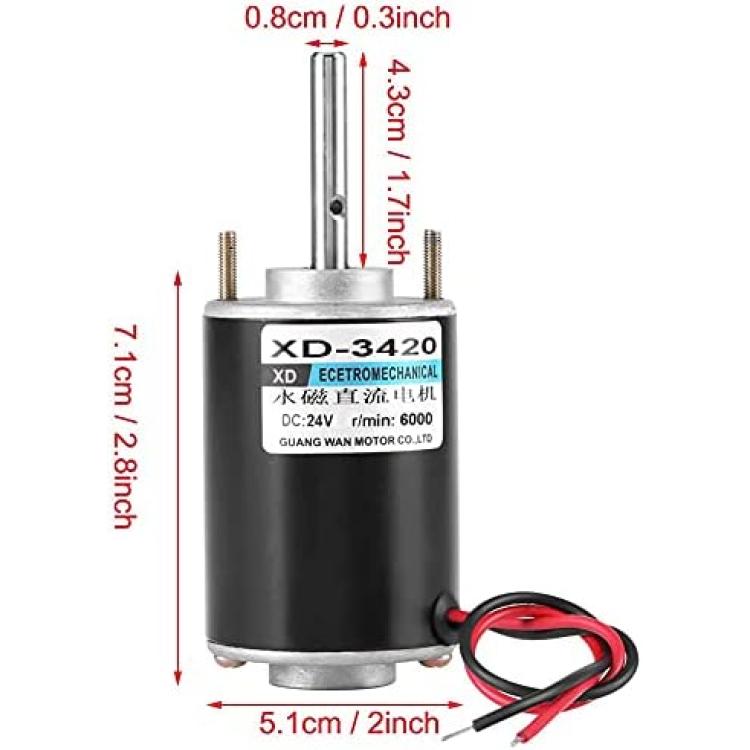

Output Shaft Length: 43mm/1.7inch
Torque:1kgf.cm(12V),2kgf.cm(24v)
Weight:480g
Package Included:
1 x DC Electric Motor
