BBT 12V 30W High Speed Permanent Micro DC Magnet Motor,30dB Low Noise Reversible Electric Gear Motor for DIY Generator (DC 12V 3000RPM)
Availability: Pre-Order, Inquiry Price
About this product
*【HIGH SPEED】 3000 rpm/min and large torque with 2KGF.cm

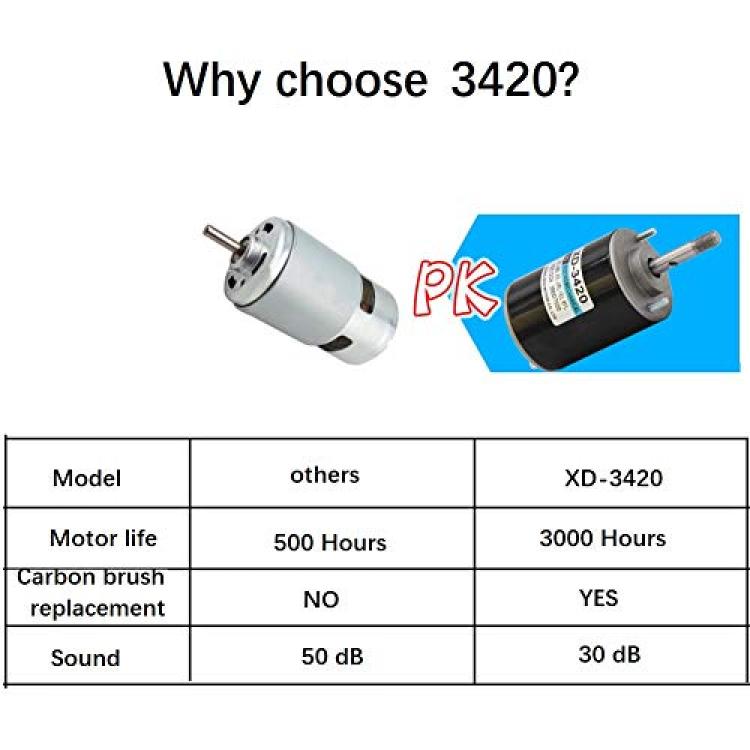

*【LOW NOISE】It drives up the super smooth, almost no noise. Compared with other motors, this motor has 3000 hours long service life.
*【ADJUSTABLE SPEED】The stator windings of the motor are copper wire, CW/CCW control. Need for external direct current governor, it can achieve speed adjustment function
*【Suitable For DIY Generator】This permanent magnet DC motor is ideal for DIY generator
*【Wide Application】These DC Motors Can be applied in candy machine, small cutting bench, cutting machine, electric drill, small generator ,Toys, egg beater, small water pump, medical equipment and other applications.
Description
Specifications:

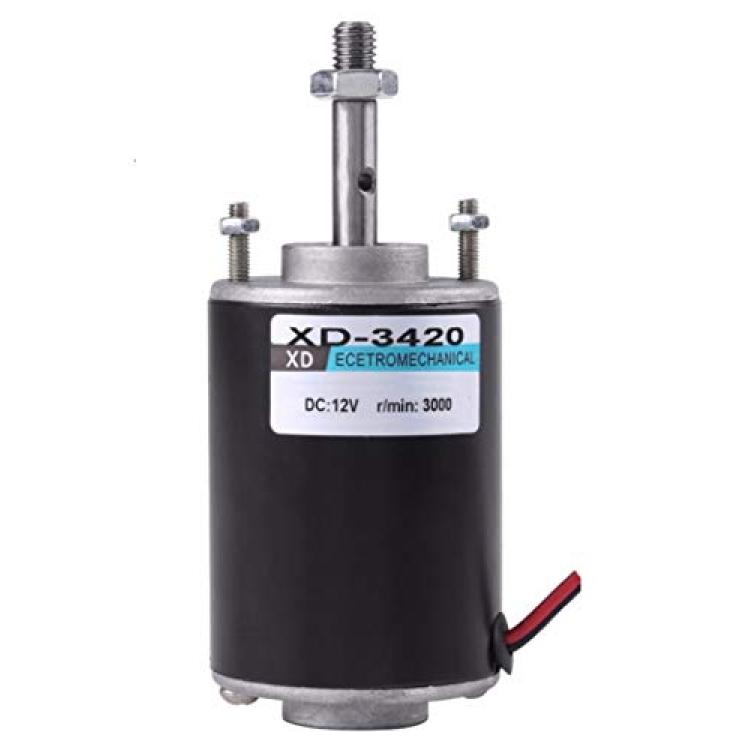

Model: XD-3420
Name: Micro DC High Speed Motor
Weight: 480g
Voltage: DC 12V/24V
Current: 2-3.7A
Power: 30W
Speed: 3000RPM / 6000RPM
Maximum torque: 2KGF.cm

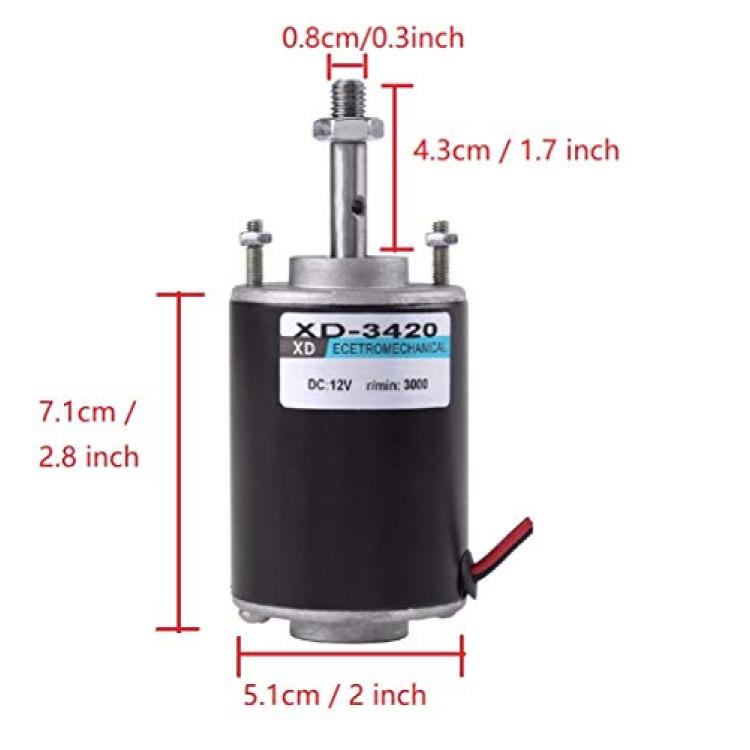

Motor size: Total length 7.1cm / diameter 5.1cm

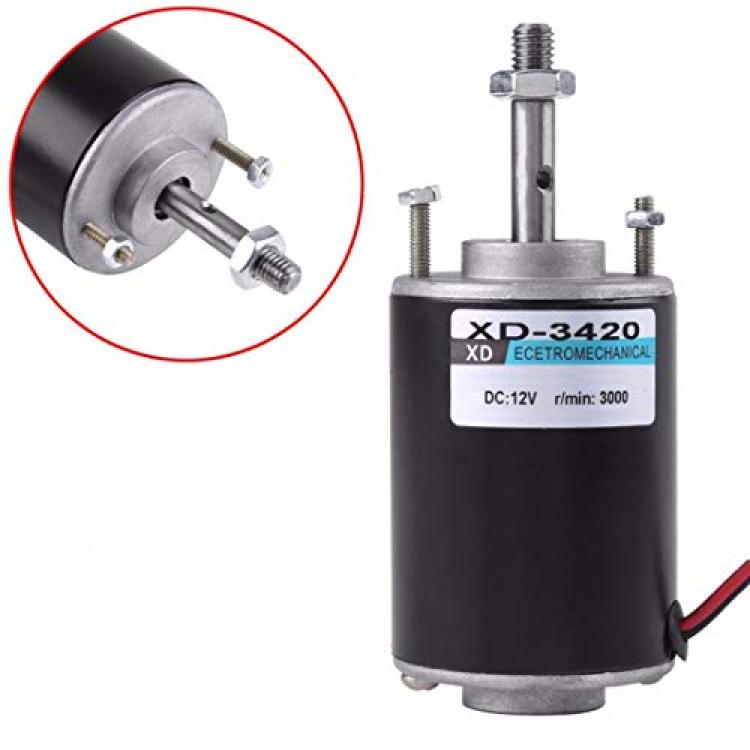

Outlet mode: center output shaft (shaft with thread)
Out shaft size: diameter 0.8cm / shaft length 4.3cm
Direction of rotation: positive and negative controllable
Speed control: Yes (external DC governor required)

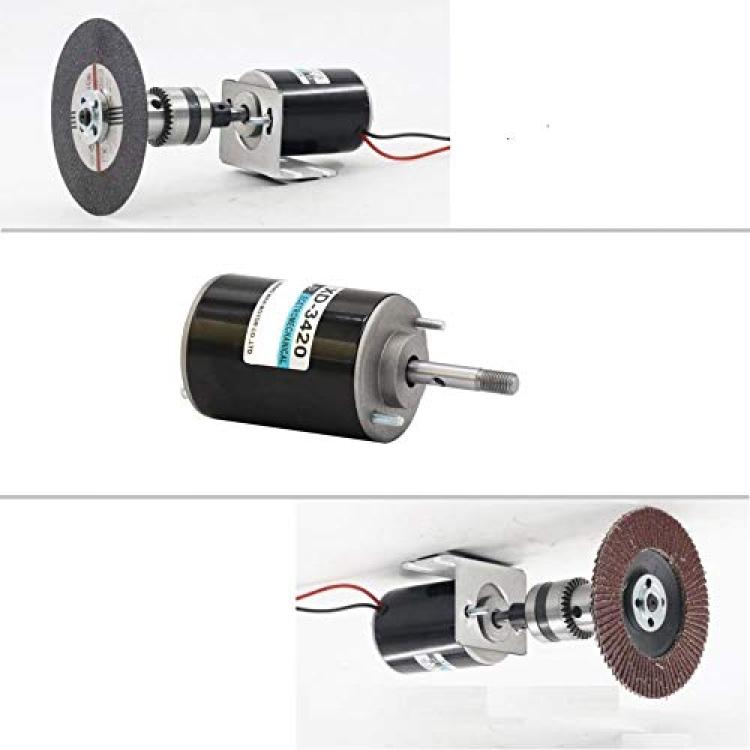

Applications: lawn mowers, grinding machines, cutting machines, toys, car models, ship models, small pumps, etc.
Package include:
DC High Speed Motor x1
