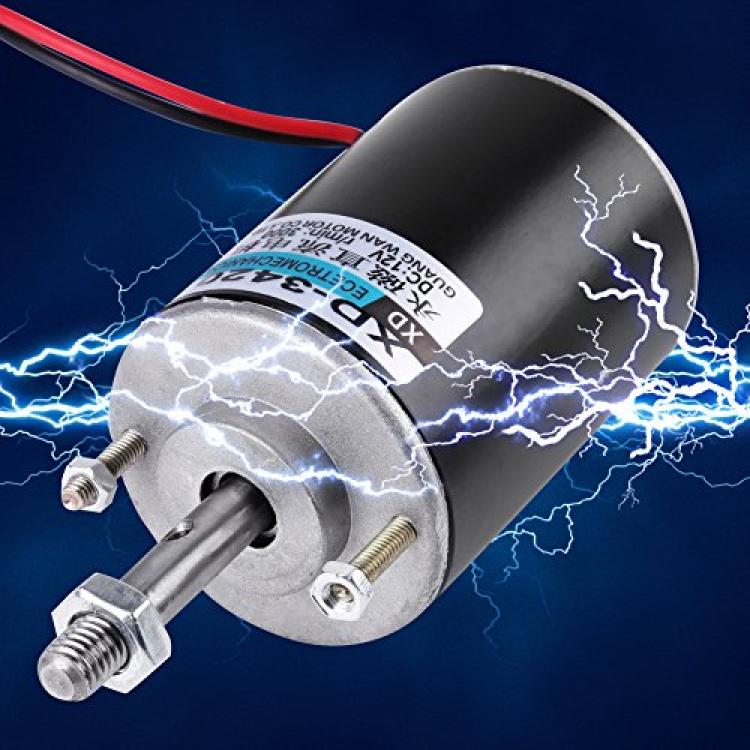

Mini 12V CW/CCW Permanent Magnet DC Motor Reversible Electric Gear Motor High Speed Low Noise for for DIY Generator(DC 12V 3500RPM)
Availability: Pre-Order, Inquiry Price
About this product
*Can be applied in cotton candy machine, small cutting bench, grinding machine, medical equipment and other mechanical equipment
*It drives up the super smooth, almost no noise
*This motor features high speed 3500rpm and large torque
*The stator windings of the motor are copper wire, CW/CCW control
*This permanent magnet DC motor is ideal for DIY generator
Description

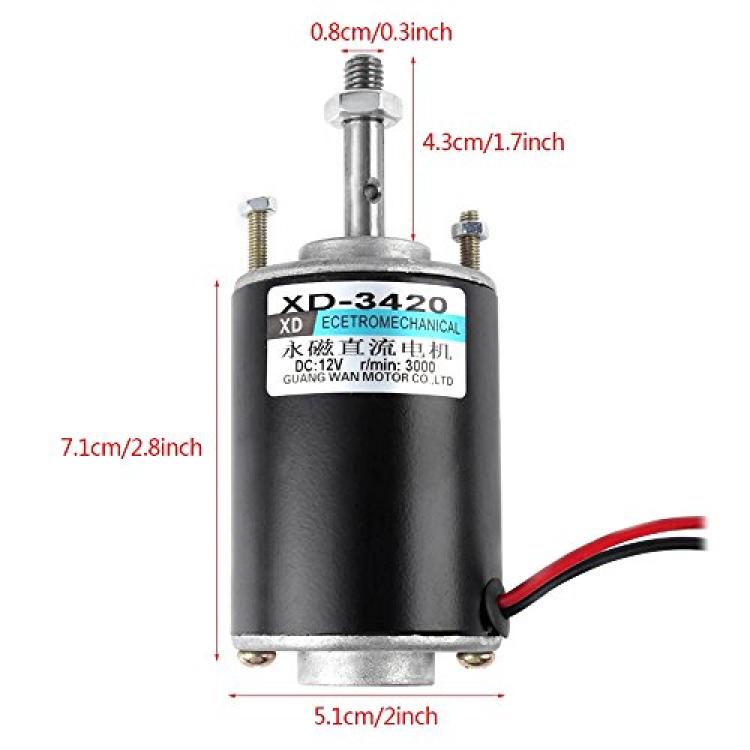

This DC permanent magnet motor features small size, stable performance, high speed with little noise and CW/CCW rotation. It's all-metal construction, so it's strong and durable. Provide two threaded screw outlet for easy connection. The motor shaft is made with 3 mm diameter hole and 13mm threaded connecting tip. It can be widely usded in cotton candy machine, mini cutting bench, grinder, armarium and other mechanical facilities.Â
Specifications:

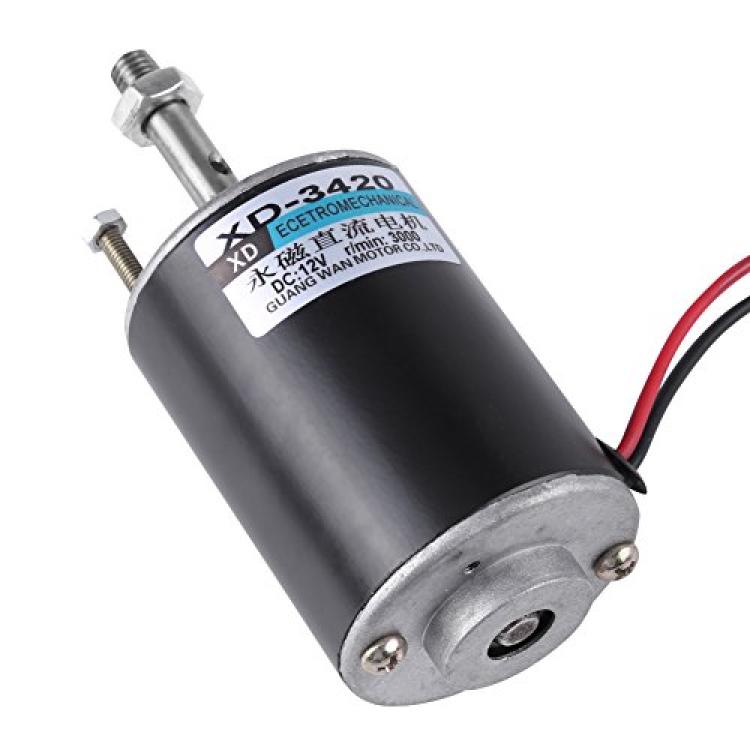

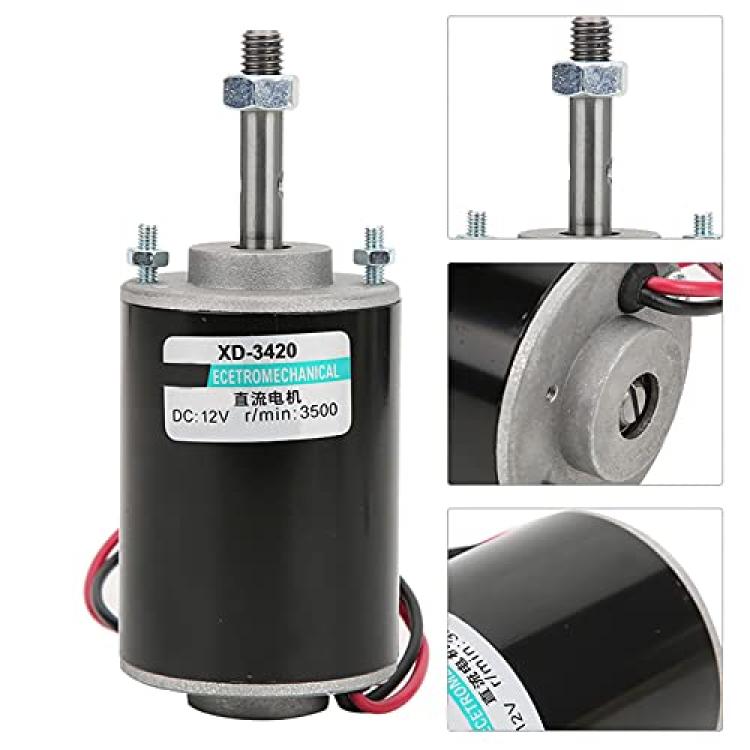

Model: XD-3420
Voltage(Optional): DC12V/24V
Power: 30W
Speed: 3500RPM(12V)
Voltage  No Load Speed  No Load Current  Rated revolution   locked-rotor current
12V Â Â Â Â Â 3500RPM Â Â Â Â Â Â 2.42 Â Â Â Â Â Â Â Â Â Â 2400 Â Â Â Â Â Â Â Â Â Â Â Â Â 3.1
24V Â Â Â Â Â 6000RPM Â Â Â Â Â Â 2.76 Â Â Â Â Â Â Â Â Â Â 5100 Â Â Â Â Â Â Â Â Â Â Â Â Â 3.37
Package Included:
1 x Permanent Magnet DC Motor
