Brushless Motor and ESC Combination,3650 3900KV Motor+Brushless ESC + Heat Sink + Program Card Set Accessory Compatible with RC Car (80A)
About this product
*√ [Brushless motor and BEC parameters]: 3650 3900KV brushless motor, maximum RPM: 50000, maximum voltage 13V. 5.8V/3A, 45A, 60A, 80A, 120A ESC types for your choice.
*√[Excellent upgrade accessories]: Brushless motor + ESC + radiator + program card, replacement of RC accessories, practical remote control car modification accessories, improved overall performance.
*√[Programming card]: brushless motor and esc program card, light weight, easy to use, portable design, specially designed for brushless ESC
*√[Radiator cover]: The blue motor radiator cover, made of aluminum alloy and plastic, with cooling fan radiator and stainless steel protective net cover, is a good accessory for RC.
*√[Guarantee]: If you are not satisfied with the product we received, you can apply for an unconditional return and refund within 180 days. For any questions about this product, you can send us an email at any time. We will reply to you as soon as possible.
Description
Specification:
Condition: 100% Brand New
Item Type: RC Motor ESC Set
Material: Alloy
Optional ESC Type: 45A, 60A , 80A, 120A
3650 3900KV Motor
Wattage: 900W
Maximum Voltage: <13V
Maximum Ampere: 69A
KV (RPM/V) : 3900KV
Maximum RPM: 50000
Diameter: Approx. 36mm / 1.42in
Length: Approx. 50mm / 1.97in
Axle Length: Approx. 15mm / 0.59in
Axle Diameter: Approx. 3.175mm / 0.13in
Inner Axle Length: Approx. 5mm / 0.2in
Plug Type: 4mm Golden banana plug
45A ESC:
Continuous Current: 45A
Burst Current: 180A
Battery: 2-3S Lipo / 4-9S NiMH
BEC Output: 5.8V / 3A
Power Plug: T plug Male
60A ESC:
Name: Waterproof ESC
Continuous Current: 60A
Burst Current: 320A
Battery: 2-3S Lipo / 4-9S NiMH
BEC Output: 5.8V / 3A
Power Plug: T plug male
Motor Plug: 4mm banana plug female
80A ESC:
Continuous Current: 80A
Burst Current: 480A
Battery: 2-3S Lipo / 4-9S NiMH
BEC Output: 5.8V / 3A
Power Plug: T plug male
Motor Plug: 4mm banana plug female
120A ESC:
Continuous Current: 120A
Burst Current: 480A / 10sec
Battery: 2-3S Lipo / 4-12S NiMH
BEC Output: 5.8V / 3A
Power Plug: T plug
Motor Plug: 5mm bullets plug female
Package List:

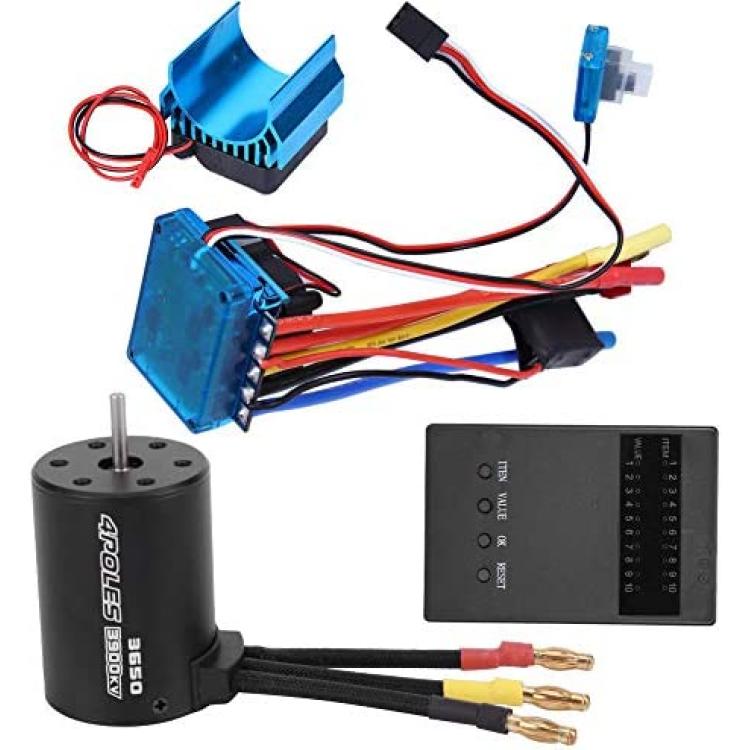

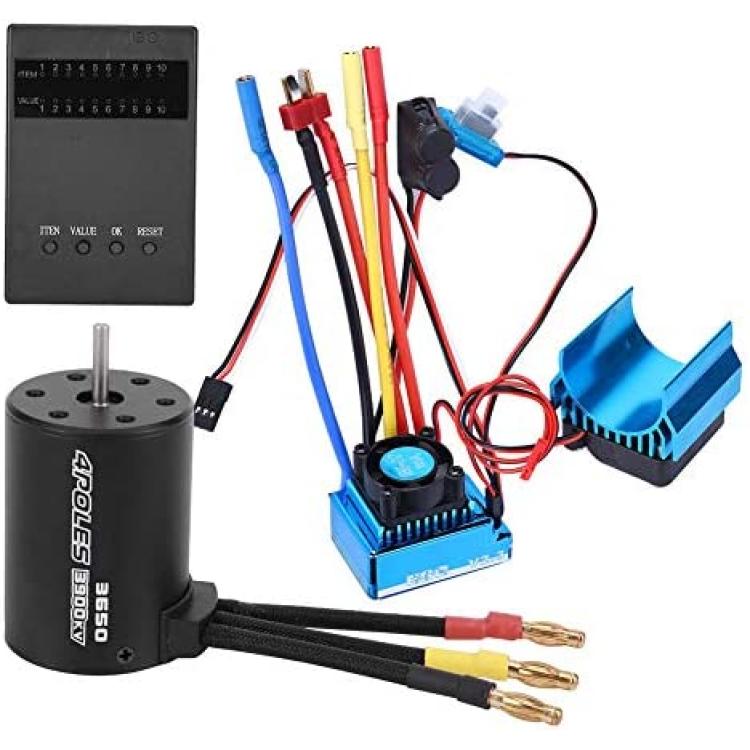

1 x Motor 1 x ESC 1 x Manual 1 x Program Card 1 x Heat Sink
