DollaTek Mini 1410 brushless Motor 9500kv with 18A ESC Combo and Programming Card Set use for 1:24 and1:26 rc car - Gold
Availability: Pre-Order, Inquiry Price
About this product
*High rpm abec5 oversized bearings.
*CNC machined 6061 t6 billet aluminum heatsink can.
*2 pole 3 slot hi-torque motor design.
*High purity copper windings maximizes efficiency.
*Specially designed for RC car with excellent start-up,acceleration and linearity freatures.
Description
Motor Specifications:
KV: 9500 kV
Max. Voltage: <6W.
Max Amps: 12A
Rotor Poles: 2
batter: 1-2 cells LIPO.
Axle diameter: 2.0mm.
Motor features:
1. 2 Pole 3 SlotHi-torque MotorDesign
2. CNC Machined 6061 T6 Billet AluminumHeatsink Can
3. High Purity Copper Windings Maximizes Efficiency
4. High RPM ABECS Oversized Bearings
5. Universal fit,fits all 1/24th,1/ 28th brushless cars-multi-mounting system for M2.0 screws
6. Predision bala nced ro tor,smoothness for best reliabilityand maximum RPM

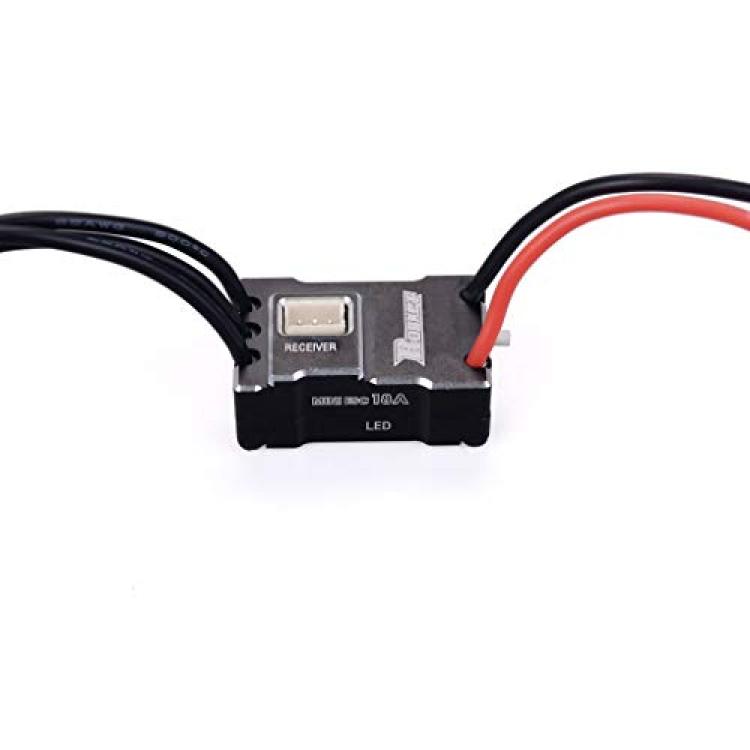

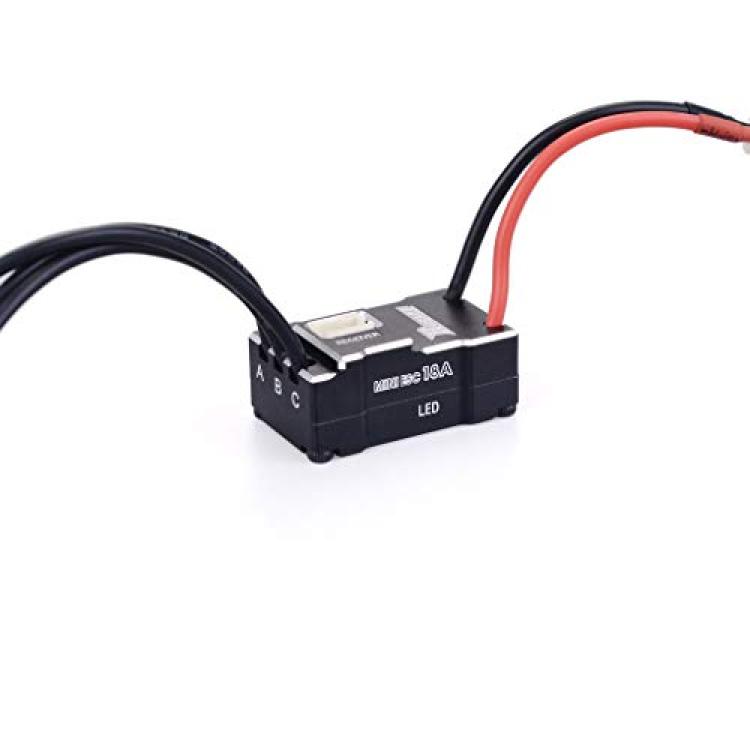

ESC functions:
1. Specially designed for RC car with excellent start-up,acceleration and linearity features.
2. Compatible with sensorless brushless motor.
3. The strong resistant current capability,excellent heat dissipation.
4. Multiple protection features:Low voltage cut-offprotection for lithium or nickel battery/Over-heat protection/Throttlesignalossprotectiot/Motor blocked protection
5. Easily programmed and compatible with pocket-sized program card.
ESC Specifications:
Counter current / burst current: 12 A/36A.
Battery: 1-2 Lipo cells,3-4 NiMH cells.
Motor type: sensorless brushless motor.
BEC output: 5V/300mA (analog mode).
Size: 15 x 26 x 11.5mm.

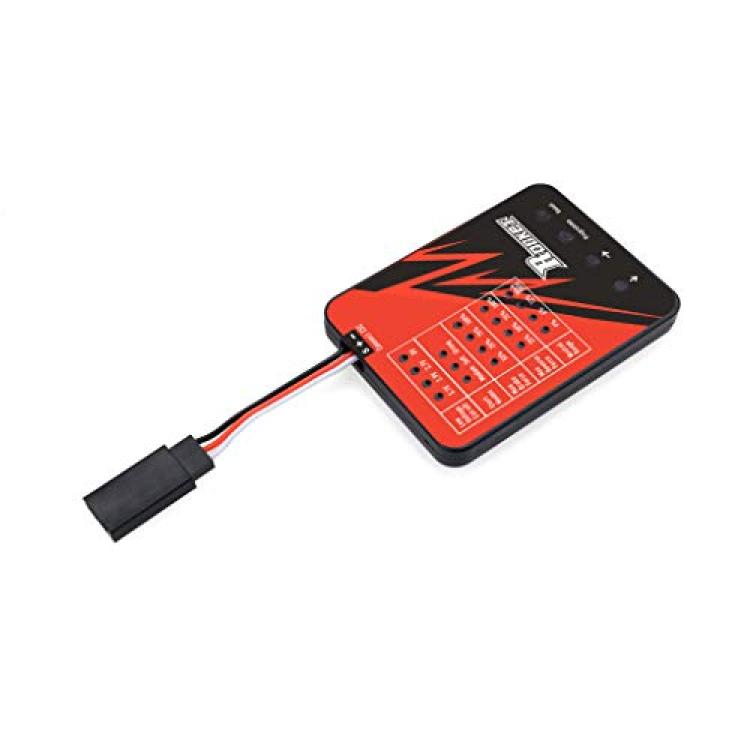

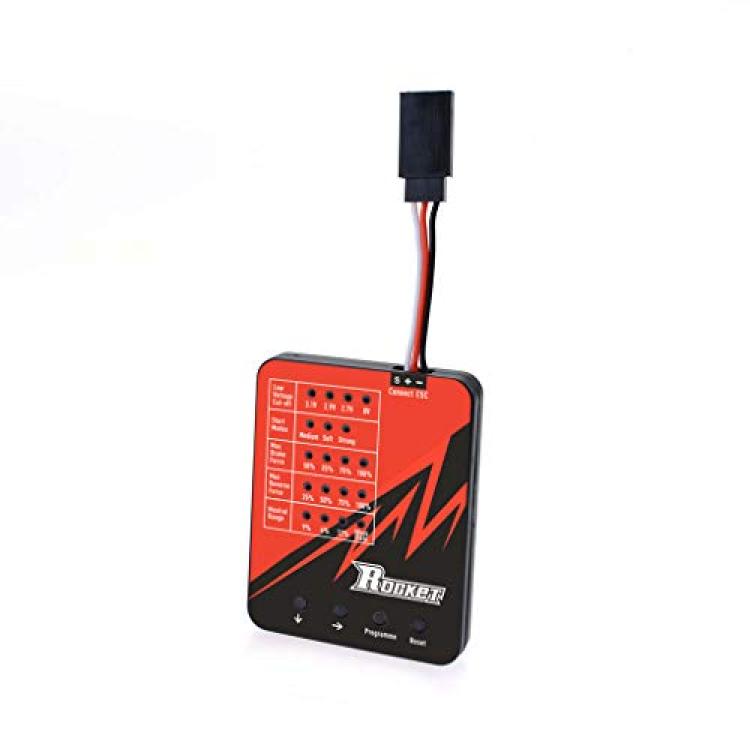

Programme card description:
1. Low Voltage Cut-Off:The function is mainly to prevent the lithium battery packfrom over discharging.When using lithium battery pack,please set the suitable value for low-voltage protection.WARNING:Never use the default value"Non-protection"for lithium battery! 3.1V?2.9V?2.7V?Non-Protection(default value 3.1V).
2. 3 start modes(Also called"Punch") from "soft" to"very aggressive"”(default value Medium)
3. Maximum brake force: 50%,25%,75%,100%(default value 50%)
4. Maximum reverse force: 25%,50%,75%,100%(default value 25%)

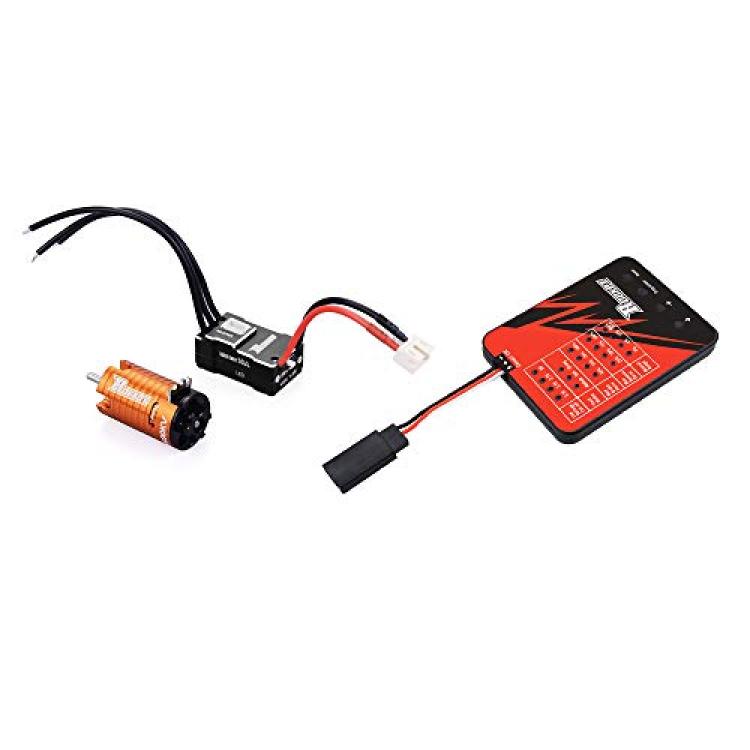

Package contents:
1 x brushless motor
1 x ESC
1 x Programming card
