Jimi 540 3100KV Sensorless Brushless Motor & 60A Brushless ESC with 6V/3A BEC & LED Programming Card Combo Set for 1/10 RC Car
Description
Use : Vehicles & Remote Control Toys
Brand Name : GOOLSKY
Material : Composite Material
Technical parameters : Value 2
For Vehicle Type : Cars
Four-wheel Drive Attributes : Motors
RC Parts & Accs : Speed Controllers
Tool Supplies : Assembly Category
Remote Control Peripherals/Devices : Motor
Model Number : 3100KV
Upgrade Parts/Accessories : Programming Card

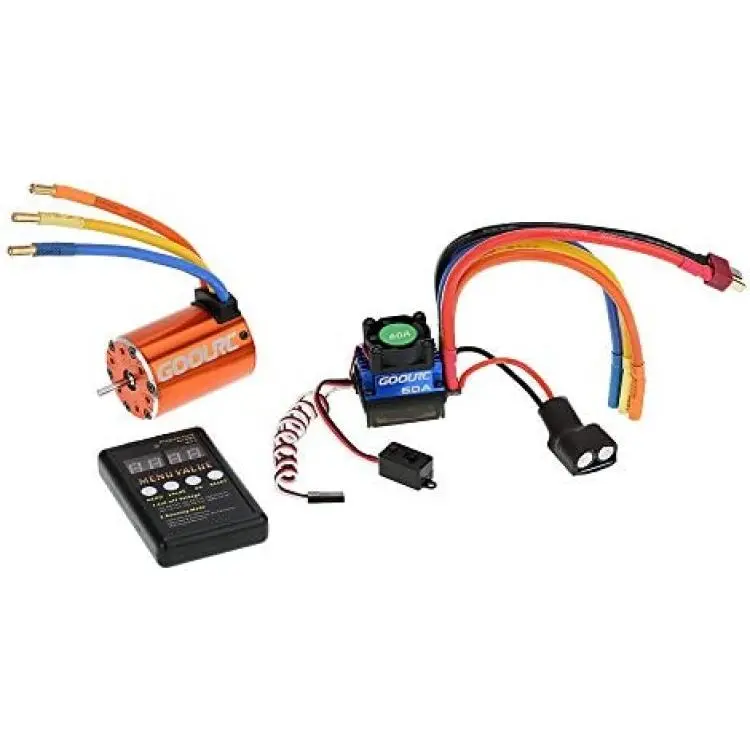

540 3100KV Sensorless Brushless Motor & 60A Brushless ESC with 6V/3A BEC & LED Programming Card Combo Set for 1/10 RC Car
The 1/10th combo set is combined with 540 3100KV sensored brushless motor, 60A brushless ESC and LED program card. The ESC is designed for 1/10 scale RC car with the use of 2-3s LiPo battery and 4-9s NiMH battery. When you connect the ESC with the program card, you could tune and tweak parameters that add up to an incredible RC driving experience.
Features:
High RPM oversized bearings
4 pole 12 slot hi-torque motor design
High purity copper windings maximizes efficiency
Precision engineered for maximum energy conversion
Precision balanced rotor,smoothness for best reliability and maximum RPM
Using advanced software interface to set up or update the software
Enhanced throttle response, excellent acceleration, strong brakes and throttle linearity
Built-in switch mode BEC has powerful output to supply all the electronic equipments
Multiple protection features: Low voltage cut-off protection, over-heat protection and throttle signal loss protection

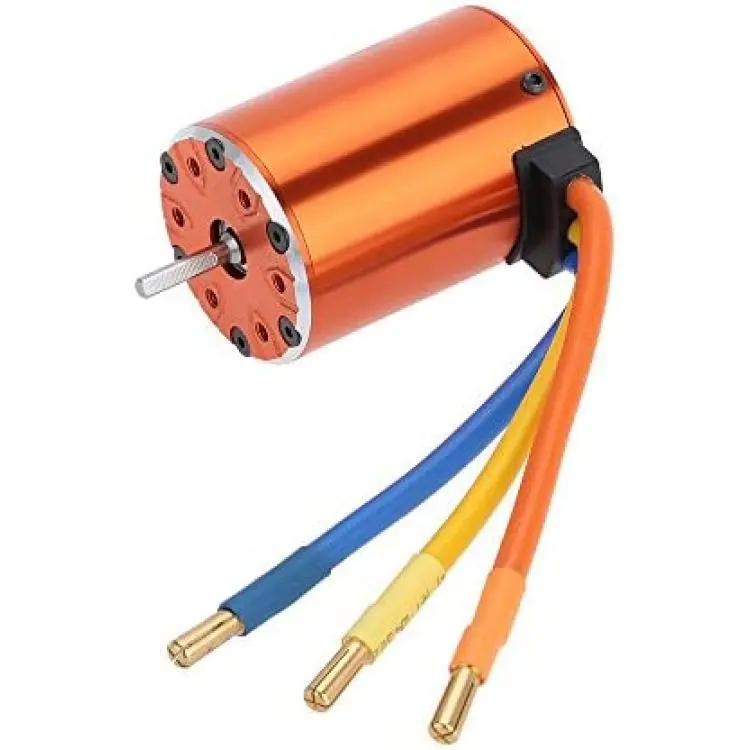

Motor Specifications:
Brand: GoolRC
Rotor poles: 4
Product: 540/3Y
KV(RPM/Volt): 3100
Max voltage: 16V
Max amps: 56A
Max power(W): 900W
Item weight: 194g
Item size: 50 * 36mm
Idle current: 1.4A
Max RPM: 50K
Shaft diameter: 3.175mm
Shaft length: 17mm
