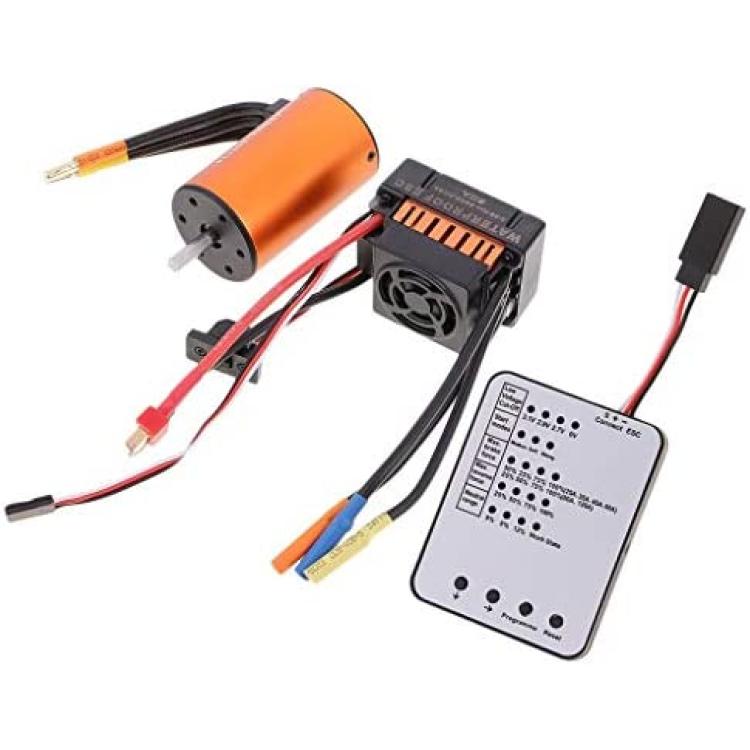

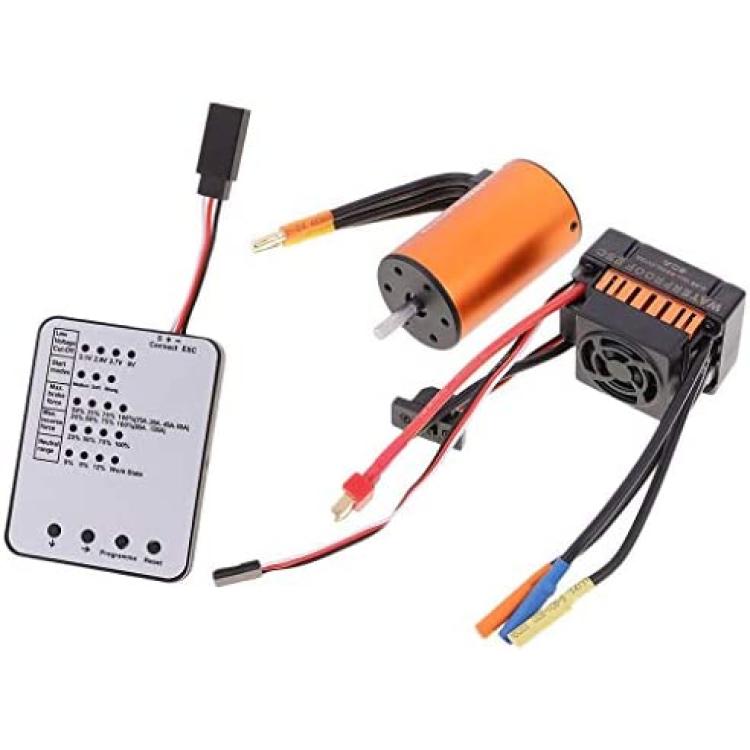

Vehicles-OCS 3660 3300KV Waterproof Brushless Motor + 60A ESC + LED Program Card Spare Parts Vehicles-OCS for 1/10 Remote Control RC Car
Description
The Descriptions:
- Multiple protection characteristics: low voltage cut-out protection, overheating protection, throttle loss protection, 5.8V / 3A BEC.
- Motor boat suit for power boats 1/10 RC.
- LED program card material: plastic
- Brushless motor and ESC material: plastic + aluminum alloy
Specifications:

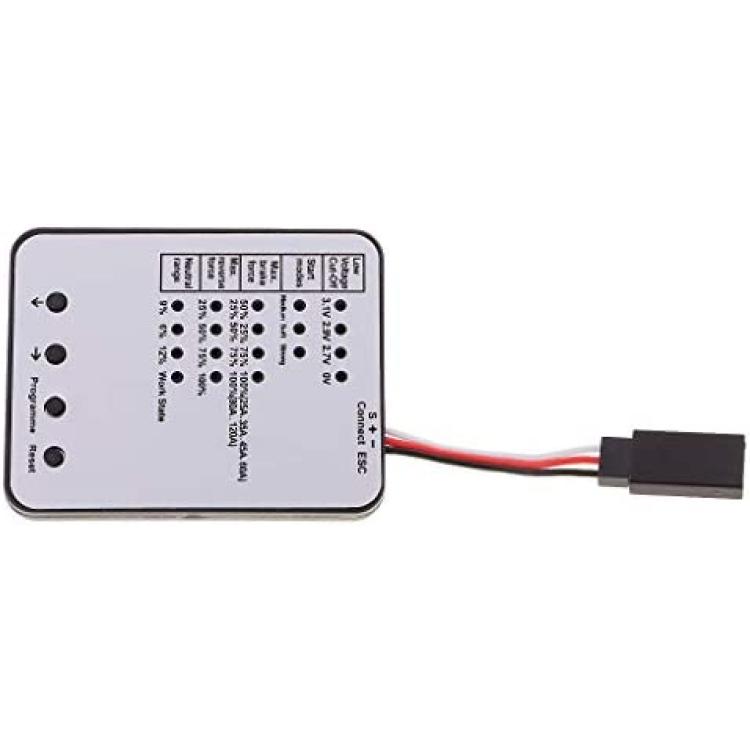

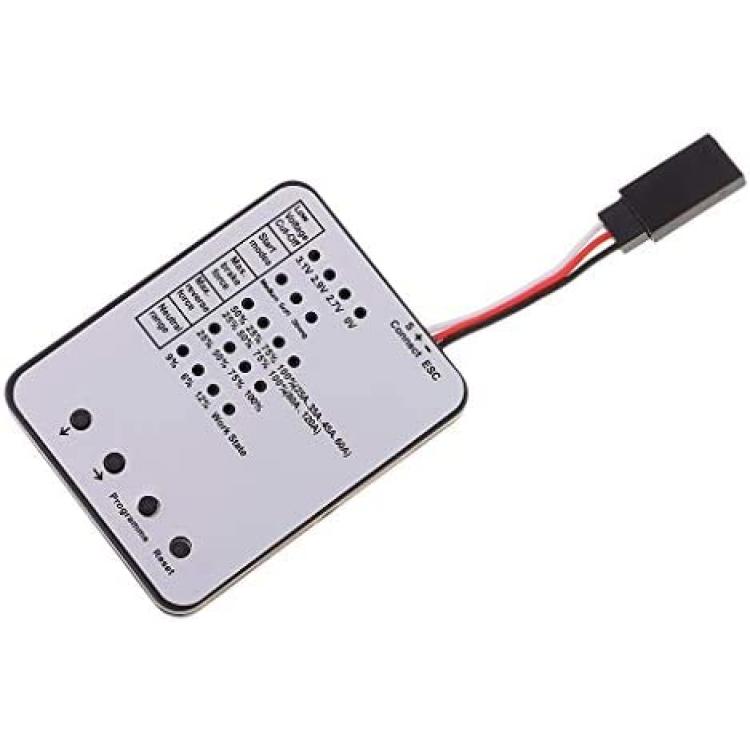

- Program card Specifications:
- Low voltage cutoff voltage: 3.1V / Cell 2.8V / Cell 3.3V / Cell
- Maximum braking force: 25%, 50%, 75%, 100%
- Maximum reverse force: 25%, 50%, 75%, 100%
- Neutral range: 6%, 9%, 12% Work status
- Motor Specifications:
- Watts: 1200W
- Maximum voltage: <15V
- Max Amps: 80A
- KV (RPM / Volt): 3300KV
- Max RPM: 50000
- Type of plug: golden 4 mm plug
- ESC Specifications:
- Continue in progress: 60A
- Bursting current: 320A
- Battery: 2-3S Li-Po / 4-9S Ni-Mh Ni-Cd
- BEC production: 5.8V / 3A
- Feed plugs: male plug T
- Motor plugs: 4 mm female plug
Size Chart:
- Size of the program card (LxWxH): approx. 6x4.7x0.6cm / 2.36x1.85x0.24inch
- Motor diameter: 36 mm / 1.42 inches
- Motor length: 60mm / 2.36 inches
- ESC dimension (L x W x H): approx. 50 x 35 x 34mm / 1.97x1.38x1.34inch
The Package includes:
1 piece Program card
1 Piece 3660 3300KV Brushless Motor
1 piece 60A ESC
Note:
Due to the difference between the different monitors, the picture may not reflect the actual color of the item.
There may be an error of 1 to 2 mm of manual measurements. Please understand us, thank you!
Item specifics:
Material: Metal
Rc parts & accs: Motors
Remote control peripherals/devices: Motor
Four-wheel drive attributes: Motors
Tool supplies: Assembled class
For vehicle type: Cars
Model number: Motor
Technical paramet
