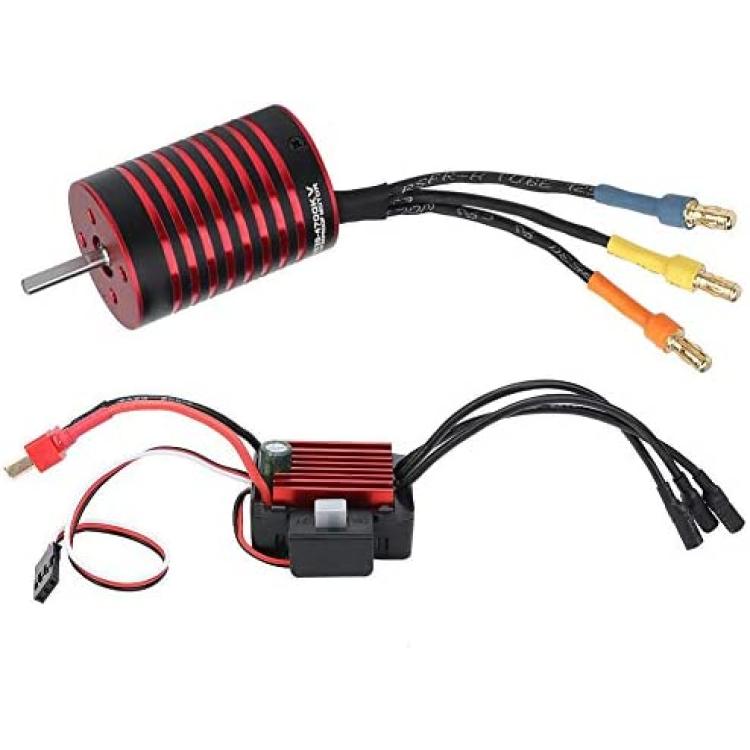

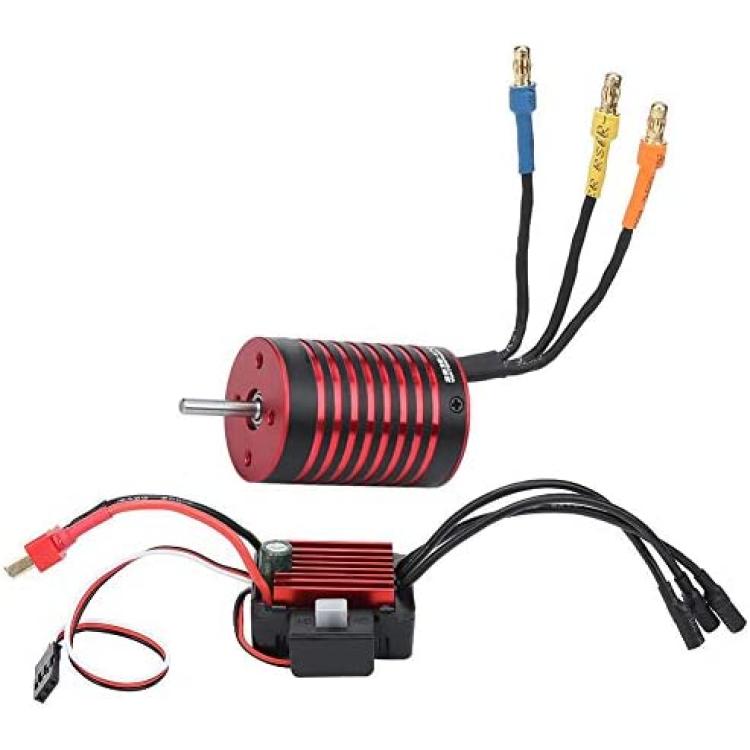

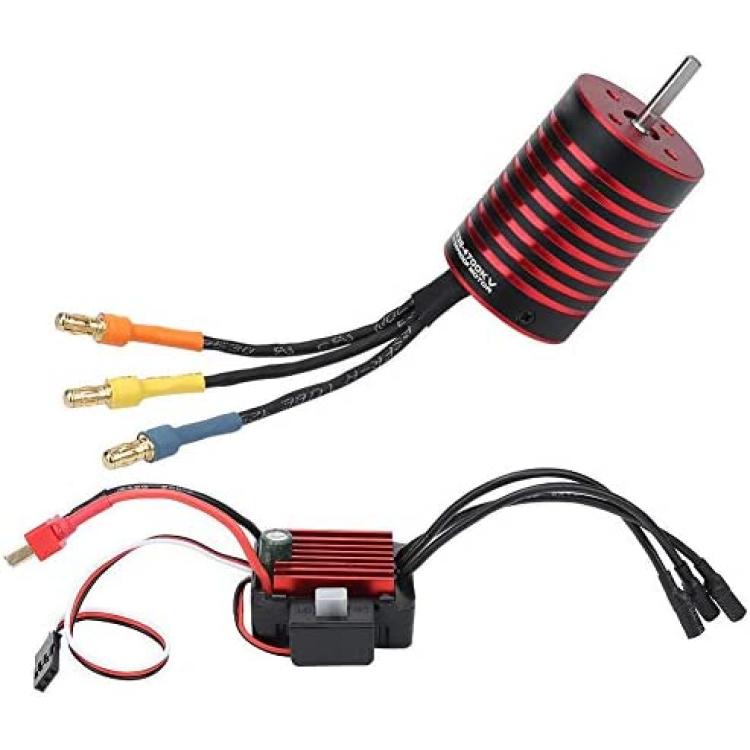

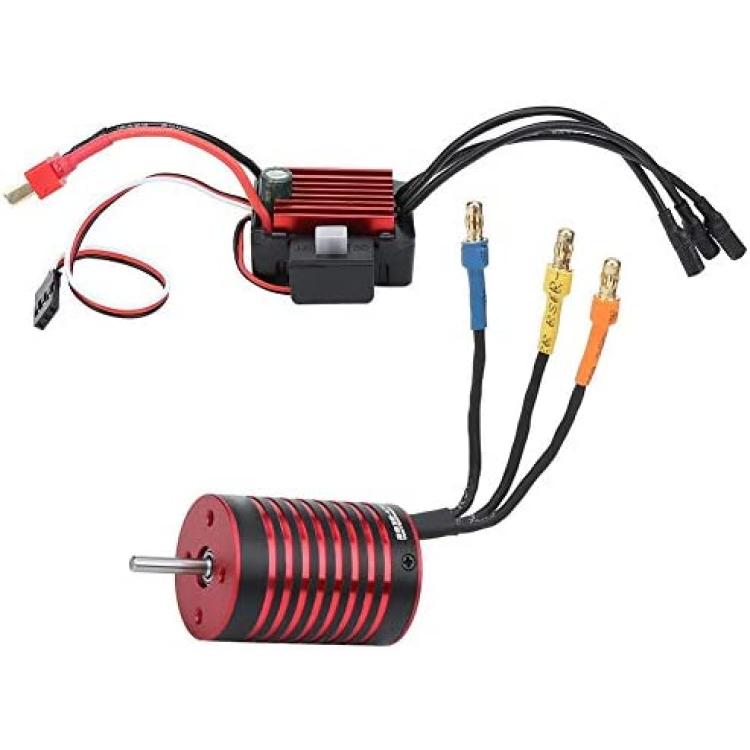

Tbest Motor ESC Set, 2838 4700KV RC Brushless Motor 35A Waterproof ESC 1/14 1/16 RC Car Parts Accessories
Description
Features:

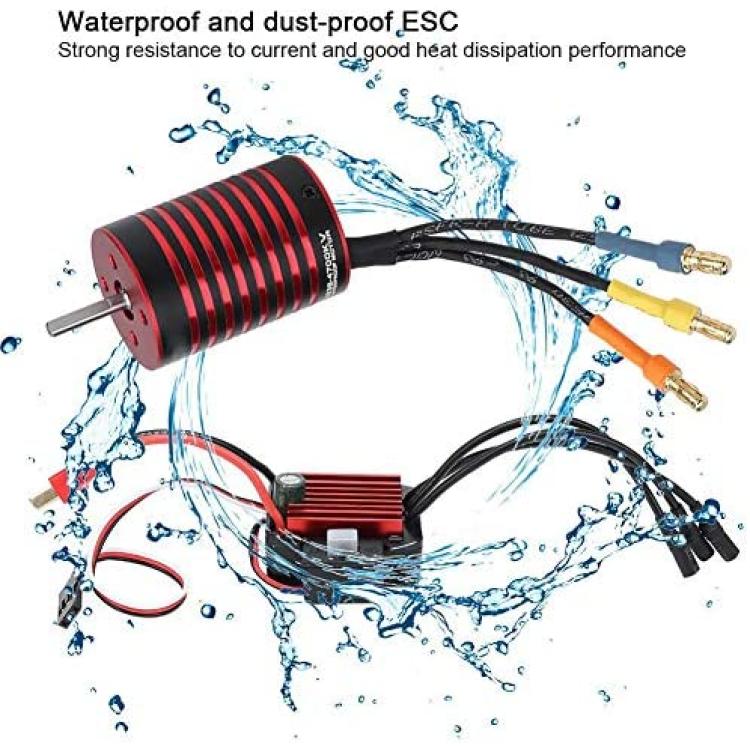

? GOOD PERFORMANCE: Waterproof and dust-proof ESC, compatible with sensorless brushless motor and pocket program card, having long service time.
? UNIQUE DESIGN: Special designed for RC models, owning excellent start, acceleration and linearity, as well as strong resistance to current and good heat dissipation performance.
? PROVIDE PROTECTION: Low-voltage cut-off protection, overheat protection technical signal loss protection, motor blocking protection for lipo batteries, very professional and safe!
? NICE CHOICE: Easy to program and operate, a good accessory for your RC Model!
Specifications:
Condition: 100% Brand New
Brand: GTSKYTENRC

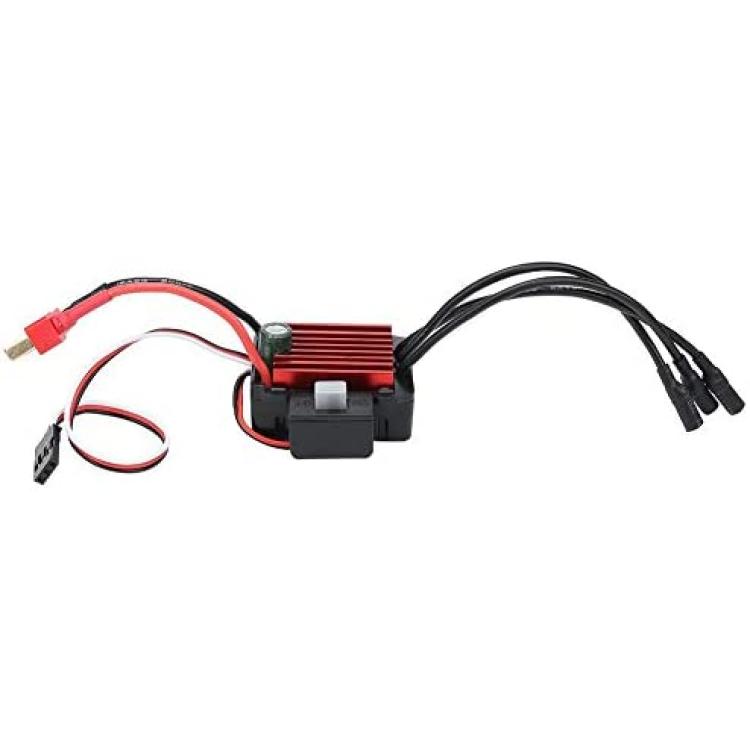

35A ESC
Cont.Current/Burst Current: 35A / 120A
Motor type: sensorless brushless motor
For 2S Lipo or 6-cell NiMH:
1. Highway: 28xx-size or smaller motor, KV <6000KV
2. Off-road vehicle: 28XX or smaller motor, KV <4000KV
For 3S Lipo or 9-cell NiMH:
1. Highway: motor of size 28XX or smaller, KV <4000KV
2. Off-road vehicle: 28XX or smaller motor, KV <3000KV
Applicable model: 1/16 and 1/14
Resistance: 0.0004 ohm
Batteries: 2-3s Lipo / 4-9 cells
BEC output: 5.0v / 2A (analog mode)
Size/weight: 40x32x20mm / 37g

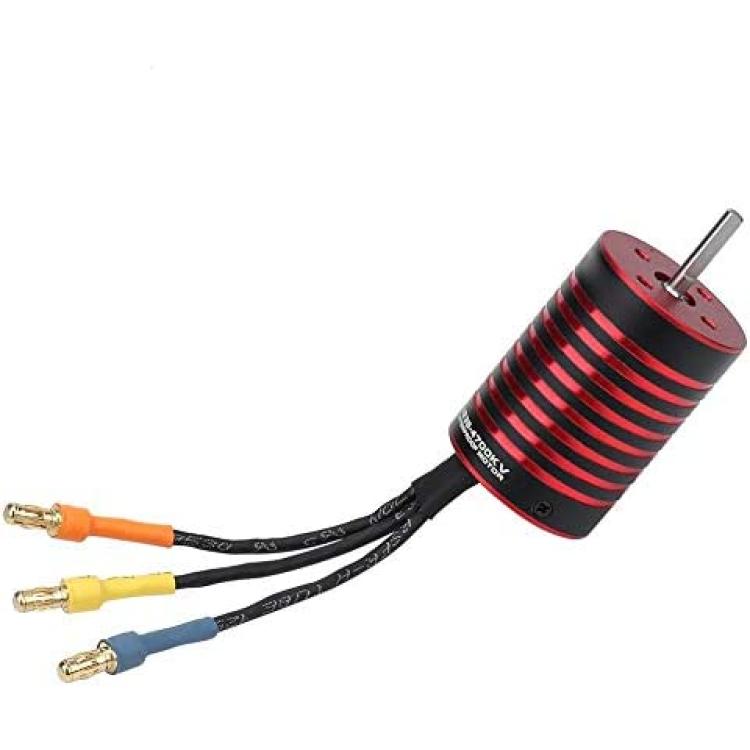

2838 Motor:
Size: 24 * 45mm
Suitable car/battery size: 1/14, 1/16, full 2s, flat running 3s
KV value: 4700KV / 3700KV
Watt: 600
Maximum voltage: less than 8V / 9V
Maximum ampere: 75A / 68A
Rotor pole: 4
IO: 2.6A / 2.4A
Resistance: 0.0147/0.0162
Maximum RPM: 50000
Shaft: 3.175 mm
Extension shaft length: 15mm
Connector: 3.5 mm gold
Applicable model: 1/14, 1/16, full 2, flat 3s
Color: red and black
Material: aluminum alloy
Package List:
1 * ESC
1 * Motor
1 * English Manual
