Vehicles-OCS 3650 Sensorless BRUSHLESS 2300KV Waterproof Motor & 45A ESC with RC Heatsink Cover Combo Set for 1:10 RC Cars
Description
Descriptions:
- 3650 2300kv Brushless Motor and ESC 45A & RC Heatsink Cover for 1:10 RC Car .
- Water-proof and dust-proof for all-weather races.
- Specially designed for RC car with excellent star-up,acceleration and linearity features.
- Multiple protection Features:Low voltage cut-off protection for lithium or nickel battery / Over-heat protection / Throttle signal loss protection / Motor blocked protection.
- Easily programmed and compatible with pocket-sized program card, low voltage cut-off.
Specifications:

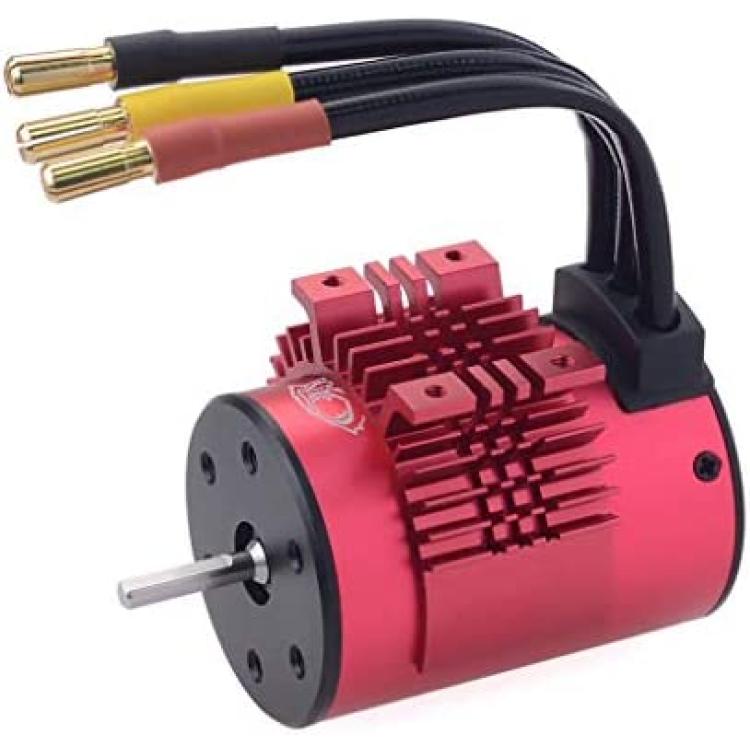

- Motor:
- Product: 3650
- KV value: 2300KV
- Watts: 900
- Max voltage: Less than 22V
- Max Amps: 41A
- Rotor poles: 4
- IO: 1.2A
- Resistance: 0.0182
- Max RPM: 50000
- Shaft: 3.175mm
- Length of extend shaft: 15mm
- Connector: 4.0mm gold
- Applicable models: 1 / 10 flat sports car 2 - 3s
- ESC:
- Model: 45A
- Cont.Current: 45A
- Burst Current: 240A
- Resistance: 0.0014ohm
- Battery: 2 - 3 cells Lipo / 4 - 9 cells NiMH
- BEC Output: 5.8V / 3A ( switch mode )
Size Chart:
Motor Size: 36x50mm / 1.41x1.96inch
ESC: 51x40x40mm / 2x1.57x1.57inch

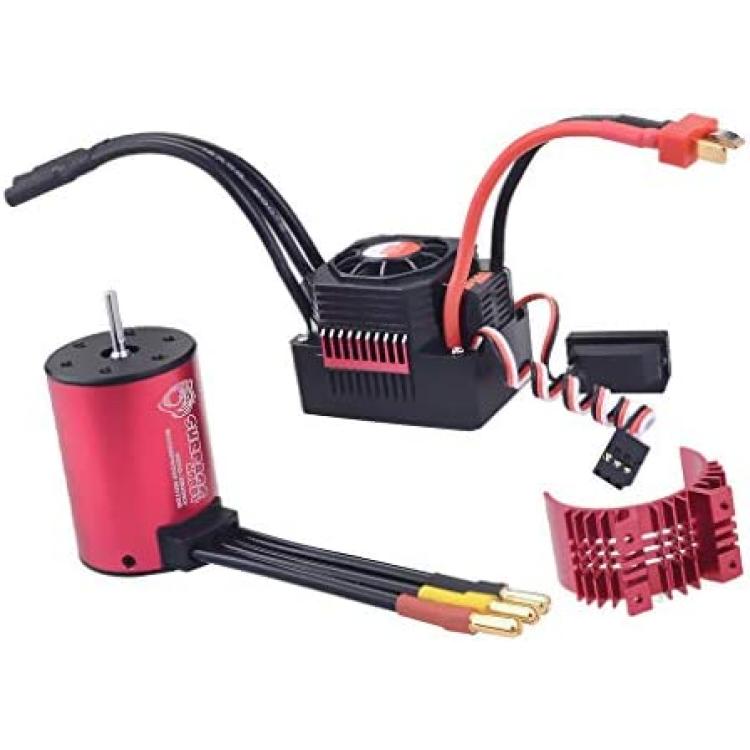

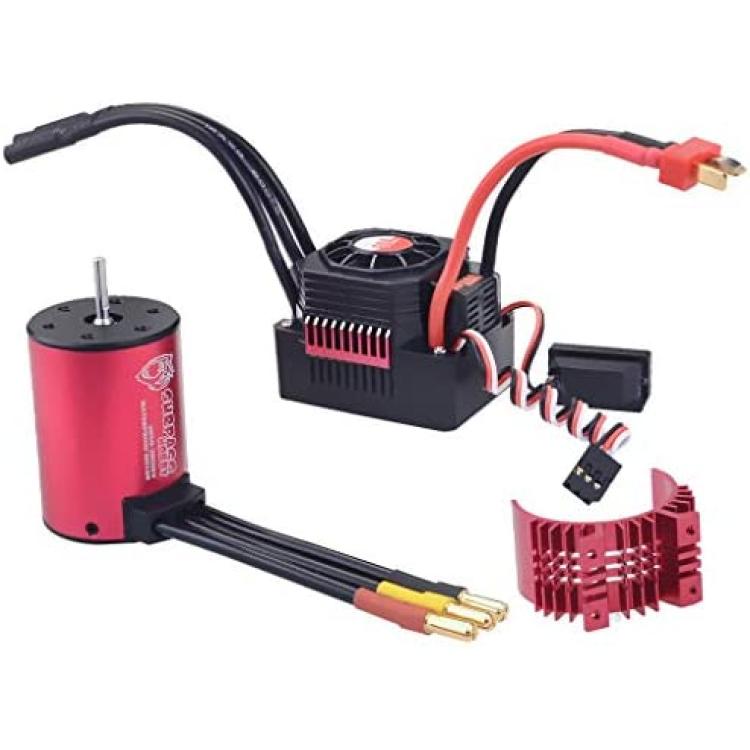

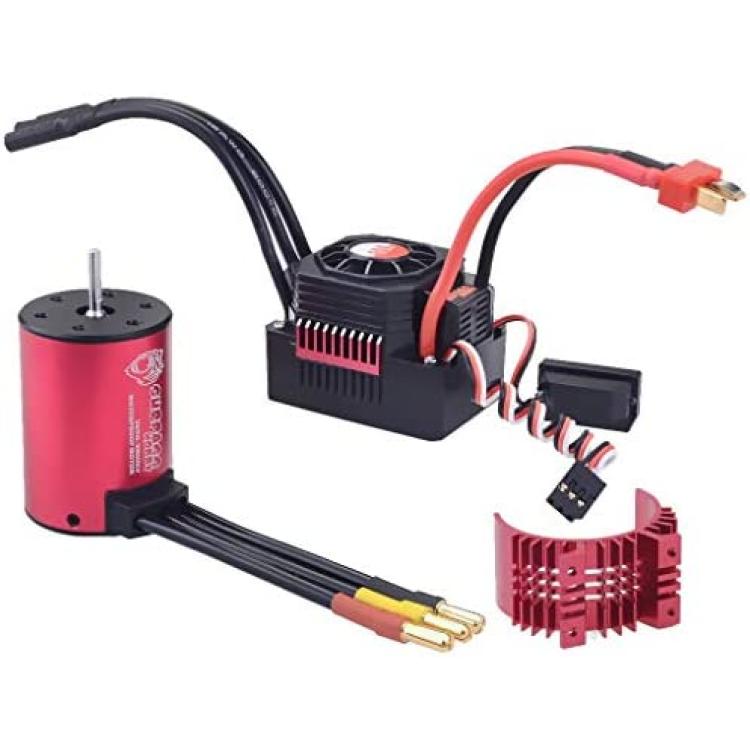

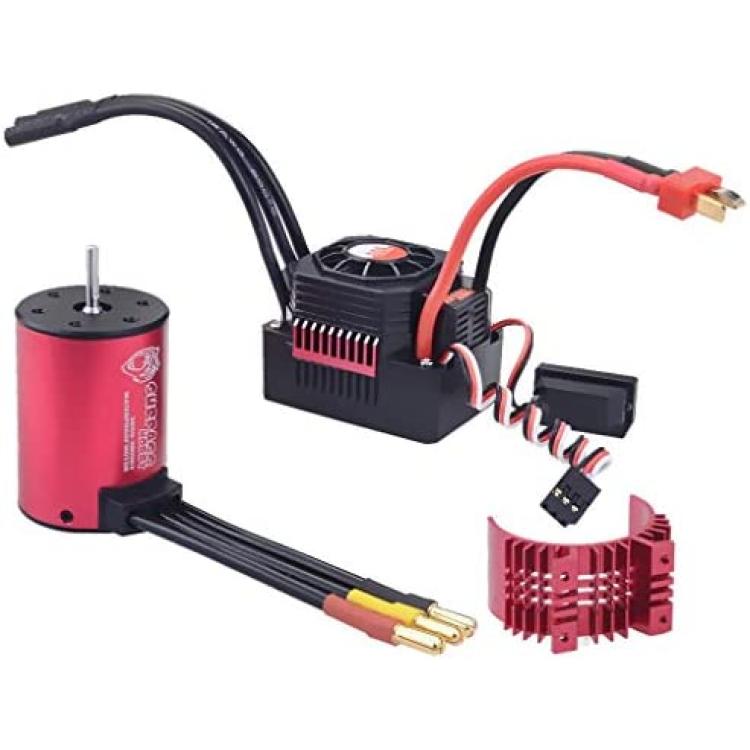

Package includes:
1 Piece 3650 2300kv Brushless Motor
1 Piece 45A Brushless Electric Speed Controller
1 Piece RC Heatsink Cover
Item specifics:
Material: Metal
Use: Vehicles & Remote Control Toys
